EL31L-ZHHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

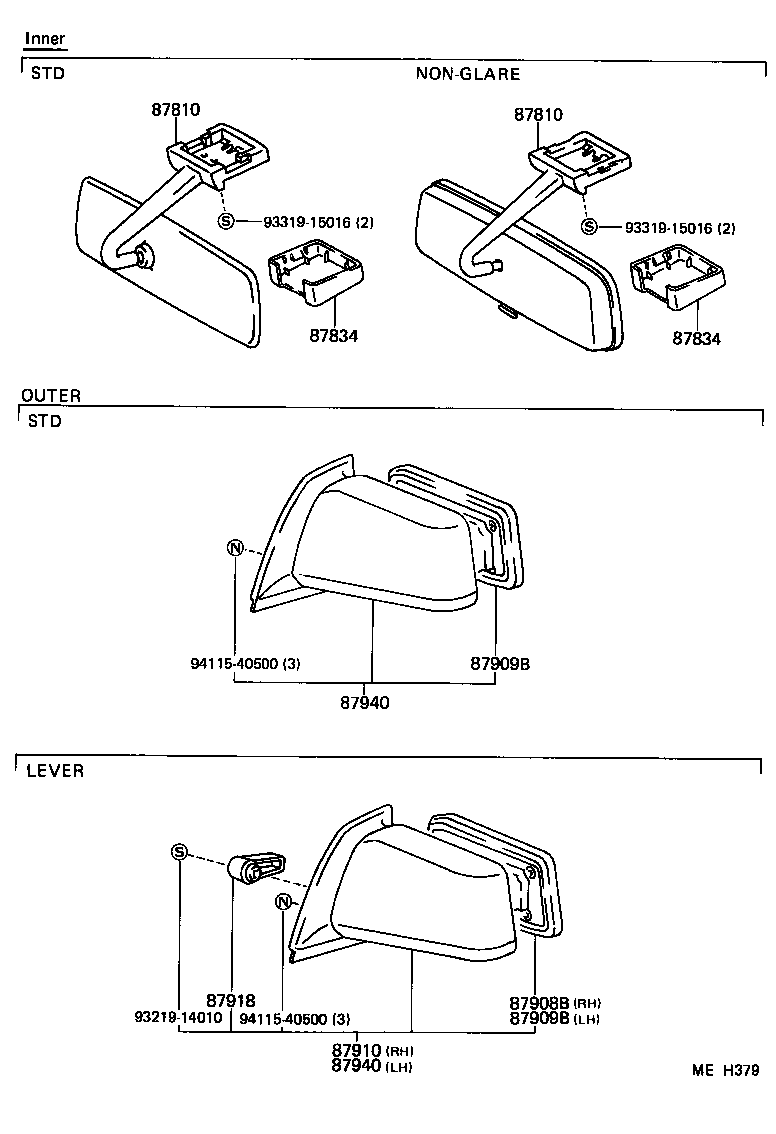

Click highlighted areas on diagram

diagram 87810 87810 87834 87834 87908B 87909B 87909B 87910 87918 87940 87940 9321914010 9331915016 9331915016 9411540500 9411540500
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1602004

EL31..DX

NON-GLARE,BLUE,BLUE,TRIM8#

 1
87810-1602005

EL31..DX

NON-GLARE,BEIGE,DARK BEIGE,TRIM4#

 1
87810-1602001

EL31..DX

NON-GLARE,BLACK,NEW BLACK,TRIM2#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1602004

EL31..DX

NON-GLARE,BLUE,BLUE,TRIM8#

 1
87810-1602005

EL31..DX

NON-GLARE,BEIGE,DARK BEIGE,TRIM4#

 1
87810-1602001

EL31..DX

NON-GLARE,BLACK,NEW BLACK,TRIM2#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008028

EL31

IVORY,IVORY

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008028

EL31

IVORY,IVORY

 1
87908B - MIRROR SUB-ASSY, RH
87908-16060

EL31..DX

 1
87909B - MIRROR SUB-ASSY, LH
87909-16050

EL31..DX

LEVER TYPE

 1
87909-16320

EL31

 1
87909B - MIRROR SUB-ASSY, LH
87909-16050

EL31..DX

LEVER TYPE

 1
87909-16320

EL31

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-16340

EL31..5DS..DX

 1
87918 - KNOB, CONTROL OUTER MIRROR
87918-16010

EL31

 2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16390

EL31..5DS

LEVER TYPE

 1
87940-16380

EL31..5DS

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-16390

EL31..5DS

LEVER TYPE

 1
87940-16380

EL31..5DS

 1
Common parts
93219-14010
93319-15016
94115-40500
