EL31L-ZHHDSA (1986)
Toyota Tercel
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

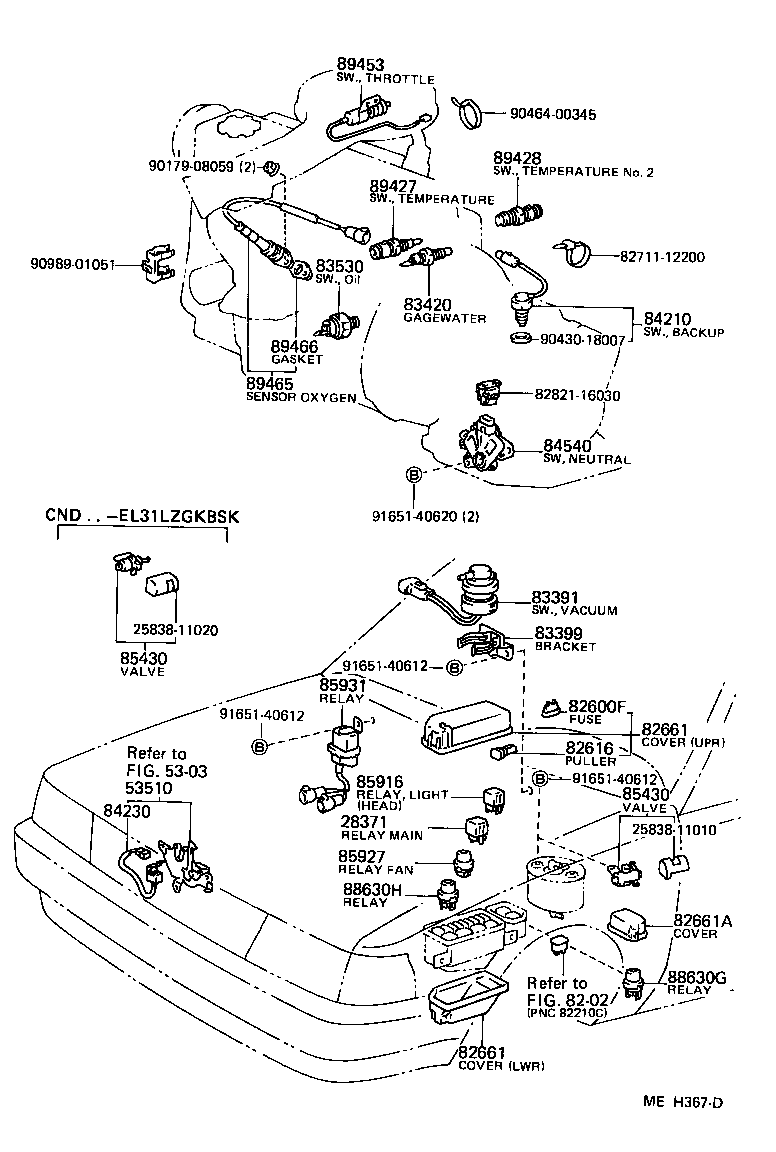

| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-04002 |
3E..EL31 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
EL31 30A,GREEN,30A |
1 | ||
| 90982-09005 |
EL31 7.5A,7.5A |
6 | ||
| 90982-09002 |
EL31 10A,10A |
3 | ||
| 90982-09003 |
EL31 15A,15A |
8 | ||
| 90982-09004 |
EL31 20A,YELLOW,20A |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
EL31 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-16200 |
EL31 LWR |
1 | ||
| 82661-16170 |
EL31 UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-16200 |
EL31 LWR |
1 | ||
| 82661-16170 |
EL31 UPR |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-16190 |
EL31 |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16120 |
EL31 |
1 | ||
| 83391-16120 |
EL31..USA |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-16050 |
EL31..USA |
1 | ||
| 83399-16050 |
EL31 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EL31 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
EL31 |
1 | ||
| 84230 - SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM) | ||||
| 84231-12040 |
EL31..TER..USA |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16030 |
EL31..3FC |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09013 |
EL31..USA DENSO |
1 | ||
| 90925-09014 |
EL31..USA AISIN |
1 | ||
| 90925-09013 |
EL31 DENSO |
1 | ||
| 90925-09014 |
EL31 AISIN |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09013 |
EL31..USA DENSO |
1 | ||
| 90925-09014 |
EL31..USA AISIN |
1 | ||
| 90925-09013 |
EL31 DENSO |
1 | ||
| 90925-09014 |
EL31 AISIN |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
EL31 TAIL LAMP |
1 | ||
| 90987-02006 |
EL31 HEAD LAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
EL31 |
1 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 85931-16010 |
EL31 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
EL31..(3FC,5F)..USA |
1 | ||
| 90987-02004 |
EL31..TER..USA |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
EL31..USA |
1 | ||
| 90987-02004 |
EL31..(3FC,5F)..USA |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-12090 |
EL31 |
1 | ||
| 89427-12070 |
EL31 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-10100 |
EL31 |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-16010 |
EL31 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29165 |
EL31..USA |
1 | ||
| 89465-29165 |
EL31 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
EL31 |
1 | ||
| 89466-30010 |
EL31..USA |
1 | ||
| Common parts | ||||
| 25838-11010 | ||||
| 25838-11020 | ||||
| 82711-12200 | ||||
| 82821-16030 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90464-00345 | ||||
| 90989-01051 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| Linked diagrams | ||||
| 5303 | ||||
| 8202 | ||||
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19805 |
EL31 |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12030 |
EL31 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-14080 |
EL31 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01013 |
EL31 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-16080 |
EL31 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-16310 |
EL31 |
1 | ||
| 84310-16320 |
EL31..DX W/*IW & *CRC |
1 | ||
| 84310-16330 |
EL31..DX W/*IW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32010 |
EL31 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16050 |
EL31 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-16280 |
EL31..DX W/*IW & *CRC |
1 | ||
| 84652-16270 |
EL31..DX W/*IW |
1 | ||
| 84652-16260 |
EL31 |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-22010 |
EL31 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-16060 |
EL31..USA |
1 | ||
| 84660-16061 |
EL31..TER |
1 | ||
| 84660-16060 |
EL31..(3FC,5F)..USA |
1 | ||
| 84660-16060 |
EL31..TER |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-16110 |
EL31 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EL31 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-16070 |
EL31 160W,W/TIMER |
1 | ||
| 84790-16060 |
EL31..USA 100W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16150 |
EL31..DX W/LIGHTING |
1 | ||
| 85500-16140 |
EL31 |
1 | ||
| 85500-16140 |
EL31..USA |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16150 |
EL31..DX W/LIGHTING |
1 | ||
| 85500-16140 |
EL31 |
1 | ||
| 85500-16140 |
EL31..USA |
1 | ||
| 85500A - WIRE, CIGARETTE LIGHTER | ||||
| 82390-16020 |
EL31..USA |
1 | ||
| 82390-16020 |
EL31 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
EL31..USA |
1 | ||
| 85533-10010 |
EL31 |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

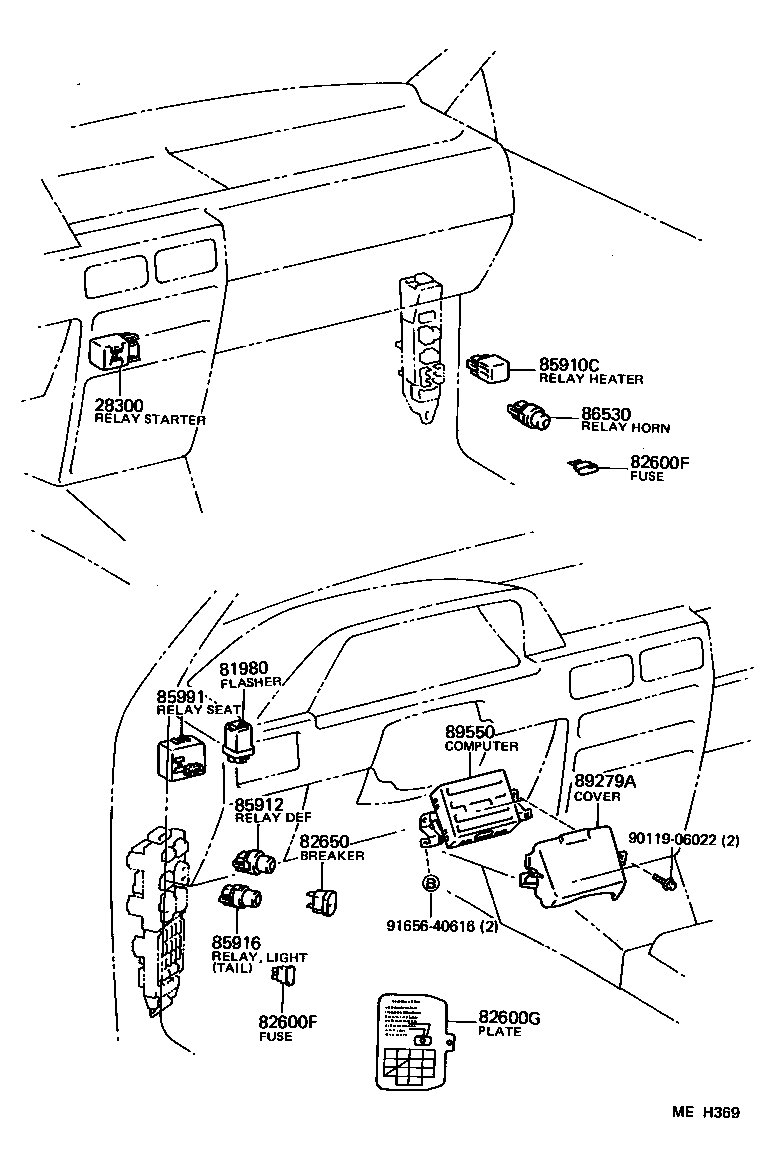

| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
EL31 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
EL31 30A,GREEN,30A |
1 | ||
| 90982-09005 |
EL31 7.5A,7.5A |
6 | ||
| 90982-09002 |
EL31 10A,10A |
3 | ||
| 90982-09003 |
EL31 15A,15A |
8 | ||
| 90982-09004 |
EL31 20A,YELLOW,20A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
EL31 30A,GREEN,30A |
1 | ||
| 90982-09005 |
EL31 7.5A,7.5A |
6 | ||
| 90982-09002 |
EL31 10A,10A |
3 | ||
| 90982-09003 |
EL31 15A,15A |
8 | ||
| 90982-09004 |
EL31 20A,YELLOW,20A |
2 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-16020 |
EL31 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
EL31 30A,30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
EL31 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
EL31 DENSO |
1 | ||
| 90987-02002 |
EL31 MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
EL31 TAIL LAMP |
1 | ||
| 90987-02006 |
EL31 HEAD LAMP |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-16040 |
EL31 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
EL31 DENSO |
1 | ||
| 90987-02002 |
EL31 MARUKO |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-16050 |
EL31..USA |
1 | ||
| 89279-16050 |
EL31 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-16200 |
EL31..3FC..USA |
1 | ||
| 89550-16210 |
EL31..3FC..USA CALIFORNIA SPEC |
1 | ||
| 89550-16200 |
EL31..3FC |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 91656-40616 | ||||
(8608- )3DS,5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

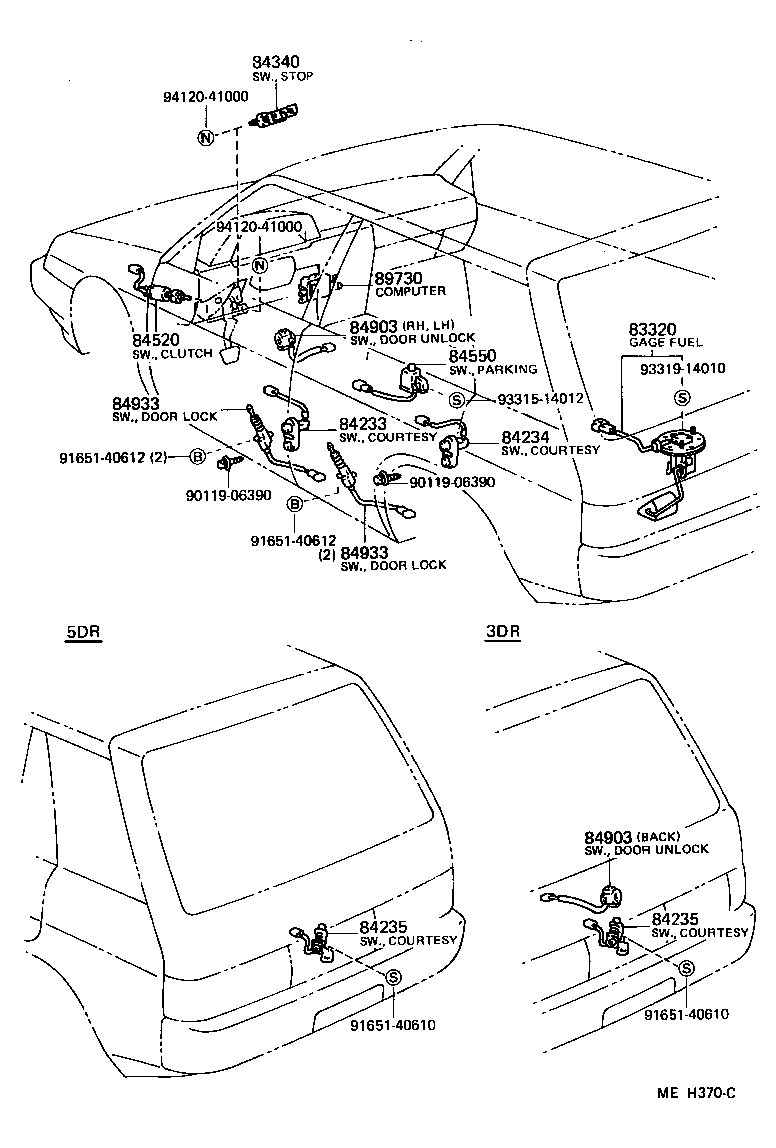

| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80058 |
EL31 |
1 | ||
| 83320-80057 |
EL31..DX W/FUEL LEVEL WARNING |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-16060 |
EL31..5DS |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-16060 |
EL31..5DS |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16040 |
EL31..3DS,5DS |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16040 |
EL31..3DS,5DS |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22110 |
EL31..DX W/*CRC |
1 | ||
| 84340-32010 |
EL31 |
1 | ||
| 84340-22100 |
EL31..DX W/*CRC |
1 | ||
| 84340-30030 |
EL31 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16030 |
EL31 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 93315-14012 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||
