EL31L-ZHHDSA (1986)
Toyota Tercel
(8608- )

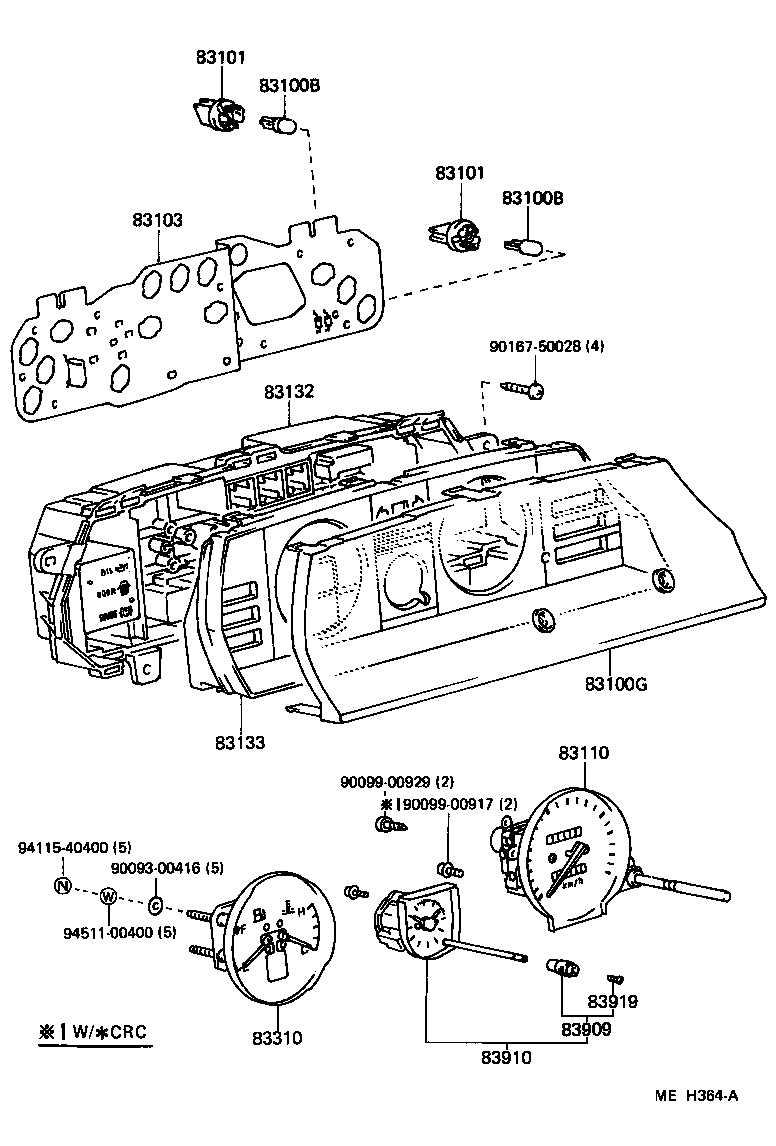

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
EL31 12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP |
4 | ||
| 99132-12034 |
EL31 12V 3.4W,12V 3.4W |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
EL31 12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP |
4 | ||
| 99132-12034 |
EL31 12V 3.4W,12V 3.4W |
9 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-16490 |
EL31 |
1 | ||
| 83138-16510 |
EL31..DX W/CLOCK |
1 | ||
| 83138-16490 |
EL31..DX,STD;EL31..B..CND |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EL31 |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EL31 |
13 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1G710 |
EL31..DX W/FUEL LEVEL WARNING |
1 | ||
| 83247-1G670 |
EL31 |
1 | ||
| 83247-1G750 |
EL31..DX W/FUEL WARNING,CLOCK & *CRC |
1 | ||
| 83247-1G730 |
EL31..DX W/*CRC |
1 | ||
| 83247-1G690 |
EL31..DX W/FUEL LEVEL WARNING & CLOCK |
1 | ||
| 83247-1G770 |
EL31..DX W/FUEL LEVEL WARNING & *CRC |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-16290 |
EL31..USA |
1 | ||
| 83110-1G080 |
EL31..DX..USA W/*CRC |
1 | ||
| 83110-16290 |
EL31..(DX,STD)..USA |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1G010 |
EL31 |
1 | ||
| 83132-1G090 |
EL31..DX W/FUEL LEVEL WARNING |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1G070 |
EL31 |
1 | ||
| 83133-1G050 |
EL31..DX W/CLOCK |
1 | ||
| 83133-1G070 |
EL31..DX,STD;EL31..B..CND |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-16670 |
EL31..USA |
1 | ||
| 83243-16690 |
EL31..DX..USA W/FUEL LEVEL WARNING |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
EL31 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-16120 |
EL31..DX |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
EL31 |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90167-50028 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
(8608- )

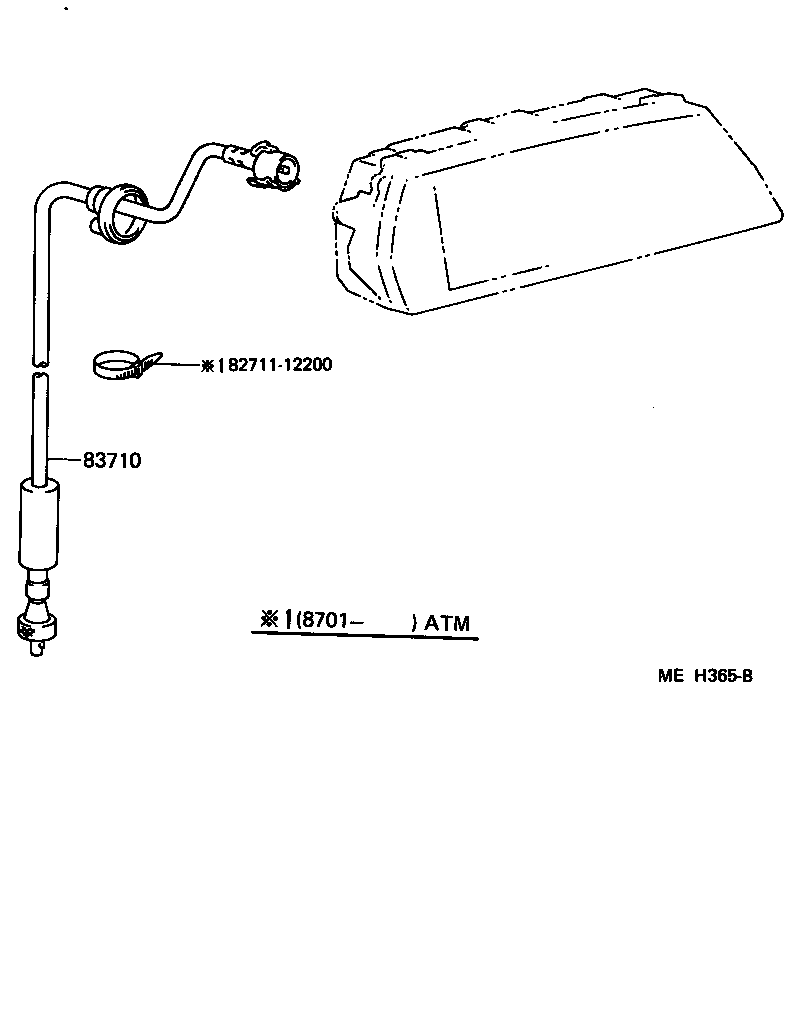

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16210 |
EL31..3FC |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
