EL31L-ZHHDSA (1986)
Toyota Tercel
Production
Aug 1986
-
Aug 1988
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

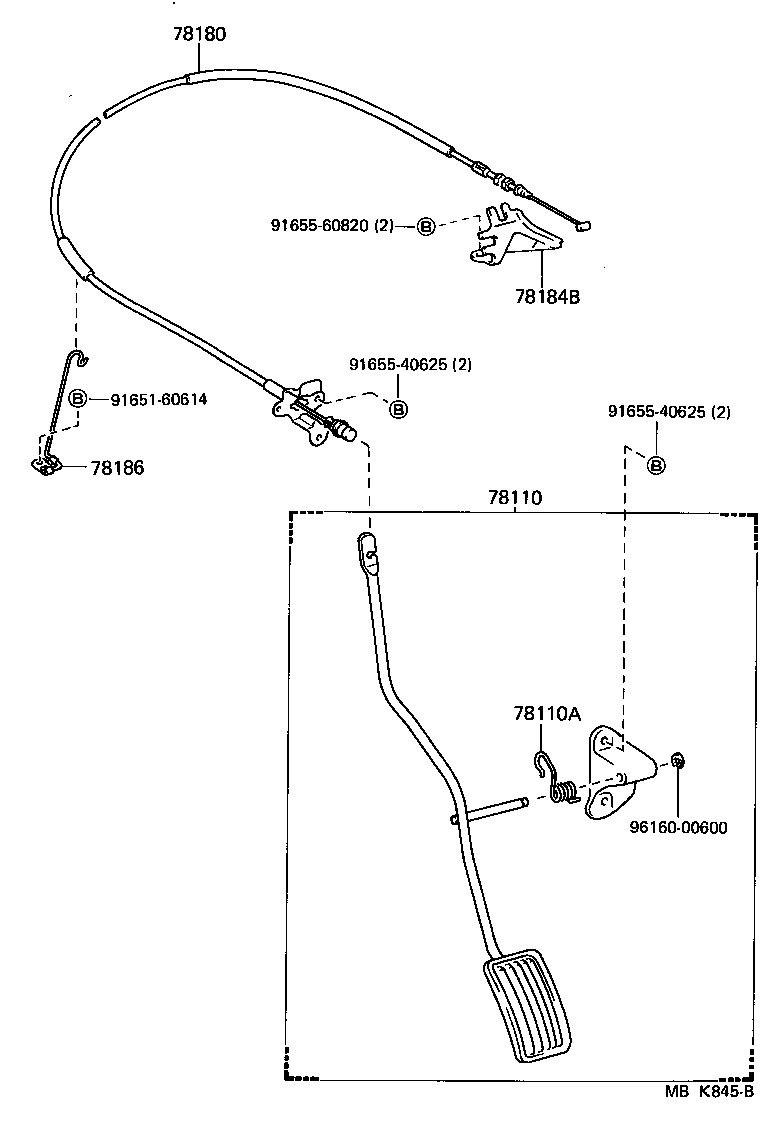

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-16080 |
EL31 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18062 |
EL31 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-16160 |
EL31 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-10070 |
EL31 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-16080 |
EL31 |
1 | ||
| Common parts | ||||
| 91651-60614 | ||||
| 91655-40625 | ||||
| 91655-60820 | ||||
| 96160-00600 | ||||
