EL31L-ZHHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3DS,5DS

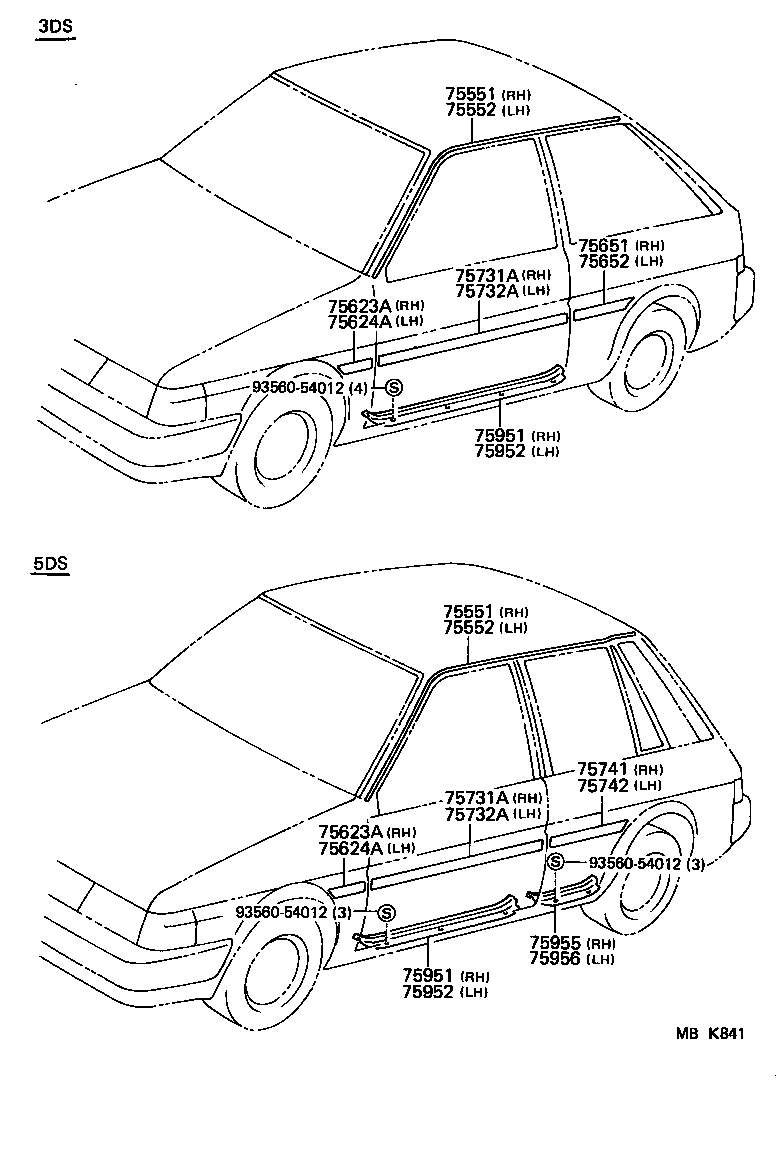

Click highlighted areas on diagram

diagram 75551 75551 75552 75552 75623A 75623A 75624A 75624A 75651 75652 75731A 75731A 75732A 75732A 75741 75742 75951 75951 75952 75952 75955 75956 9356054012 9356054012 9356054012
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-16110

EL31..5DS

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-16110

EL31..5DS

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-16110

EL31..5DS

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-16110

EL31..5DS

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75615-16030

EL31

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75615-16030

EL31

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75616-16030

EL31

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75616-16030

EL31

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-16560

EL31..5DS

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-16560

EL31..5DS

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-16560

EL31..5DS

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-16560

EL31..5DS

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-16430

EL31..5DS

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-16420

EL31..5DS

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-1606004

EL31..5DS

BLUE,BLUE,TRIM8#

 1
67913-1606005

EL31..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
67913-1606001

EL31..5DS

BLACK,BLACK,TRIM2#

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-1606004

EL31..5DS

BLUE,BLUE,TRIM8#

 1
67913-1606005

EL31..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
67913-1606001

EL31..5DS

BLACK,BLACK,TRIM2#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-1606001

EL31..5DS

BLACK,BLACK,TRIM2#

 1
67913-1606005

EL31..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
67913-1606004

EL31..5DS

BLUE,BLUE,TRIM8#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-1606001

EL31..5DS

BLACK,BLACK,TRIM2#

 1
67913-1606005

EL31..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
67913-1606004

EL31..5DS

BLUE,BLUE,TRIM8#

 1
75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67917-1603001

EL31..5DS

BLACK,BLACK,TRIM2#

 1
67917-1603004

EL31..5DS

BLUE,BLUE,TRIM8#

 1
67917-1603005

EL31..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917-1603004

EL31..5DS

BLUE,BLUE,TRIM8#

 1
67917-1603005

EL31..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
67917-1603001

EL31..5DS

BLACK,BLACK,TRIM2#

 1
Common parts
93560-54012
