EL31L-ZHHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3DS,5DS

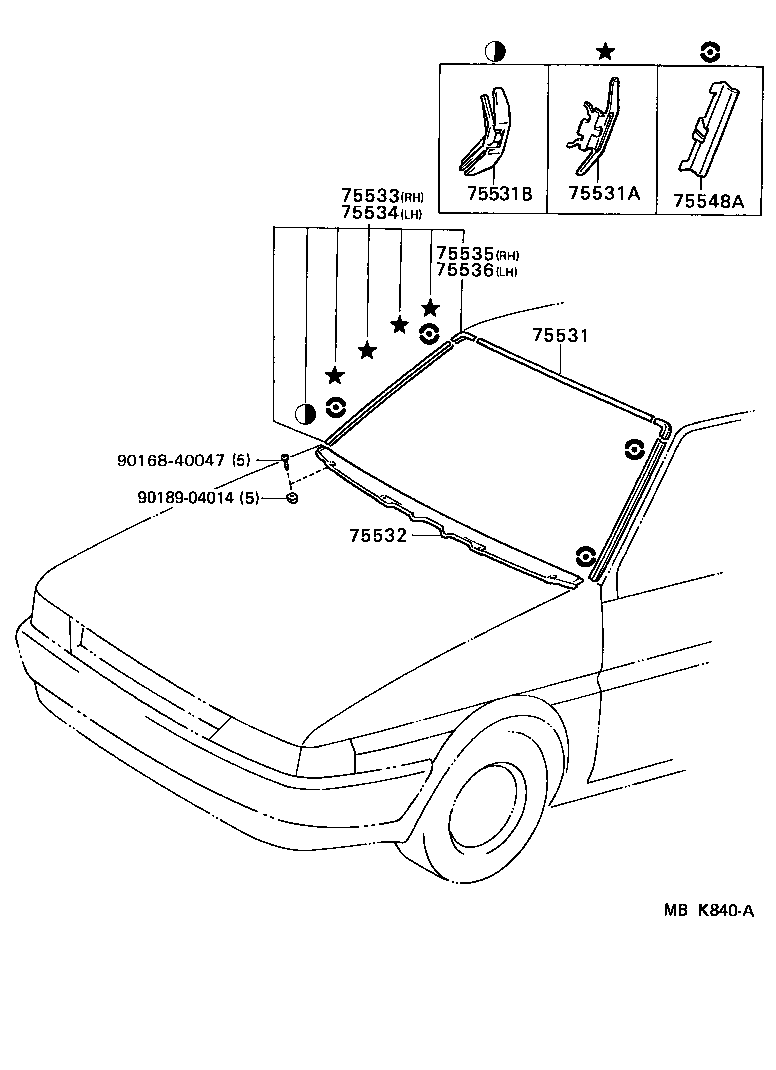

Click highlighted areas on diagram

diagram 75531 75531A 75531B 75532 75533 75534 75535 75536 75548A 9016840047 9018904014
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-16060

EL31

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-16030

EL31

 8
75531B - CLIP, WINDSHIELD MOULDING SET, NO.2
75546-16030

EL31..3DS,5DS

RH

 1
75547-16030

EL31..3DS,5DS

LH

 1
75532 - MOULDING, WINDSHIELD, LOWER
75535-16040

EL31

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-16040

EL31..3DS,5DS

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-16040

EL31..3DS,5DS

 1
75535 - MOULDING, WINDSHIELD CORNER, UPPER RH
75541-16040

EL31..3DS,5DS

 1
75536 - MOULDING, WINDSHIELD CORNER, UPPER LH
75542-16040

EL31..3DS,5DS

 1
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-16030

EL31

 4
Common parts
90168-40047
90189-04014
