EL31L-ZHHDSA (1986)
Toyota Tercel
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

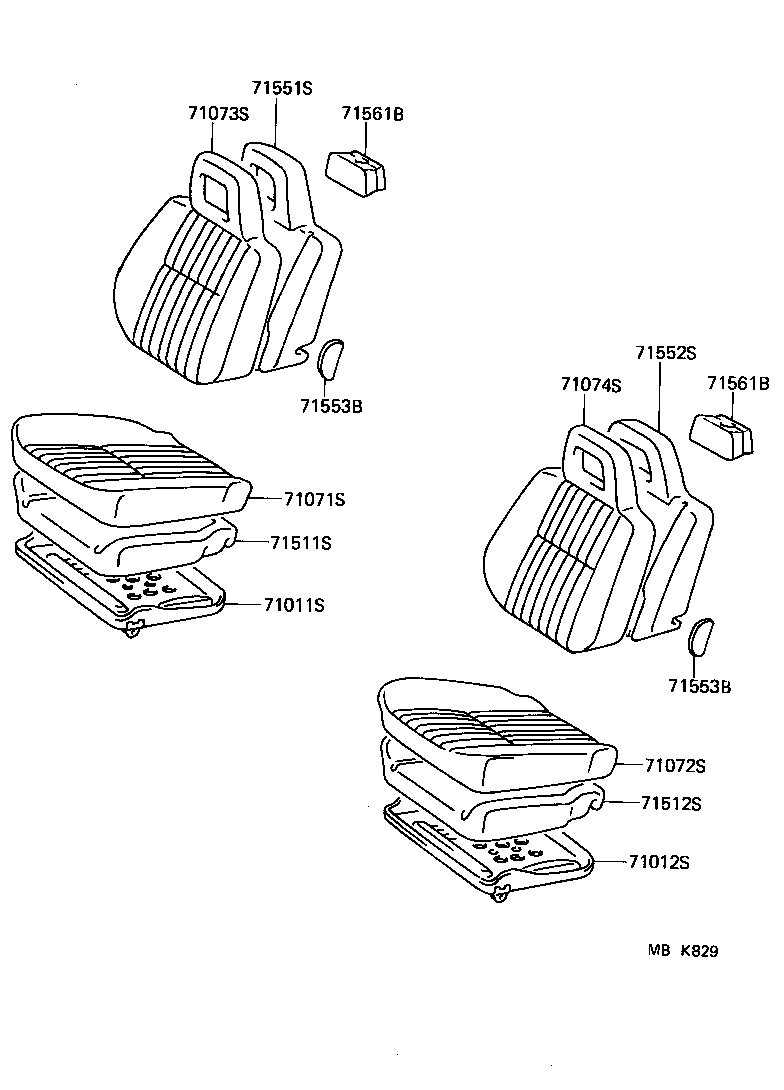

| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12190 |
EL31 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12190 |
EL31 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1662005 |
EL31 PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1662003 |
EL31 PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-1663003 |
EL31 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-1663004 |
EL31 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1663005 |
EL31 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1662004 |
EL31 PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1662003 |
EL31 PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-1626004 |
EL31 PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1663004 |
EL31 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1663005 |
EL31 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71072-1626003 |
EL31 PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-1662005 |
EL31 PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71071-1662004 |
EL31 PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1663003 |
EL31 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-1626005 |
EL31 PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1671005 |
EL31 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1671004 |
EL31 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1670004 |
EL31 PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1671003 |
EL31 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1670005 |
EL31 PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71073-1670003 |
EL31 PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1658005 |
EL31 FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-1658004 |
EL31 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1658003 |
EL31 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71074-1657005 |
EL31 PF,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71074-1657004 |
EL31 PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71074-1657003 |
EL31 PF,GRAY,GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-16060 |
EL31 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-16060 |
EL31 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-16010 |
EL31 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71505-16010 |
EL31 |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71564-16030 |
EL31 LH |
2 | ||
| 71563-16040 |
EL31 RH |
2 | ||
| 71563-16040 |
EL31 |
4 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71564-16030 |
EL31 LH |
2 | ||
| 71563-16040 |
EL31 RH |
2 | ||
| 71563-16040 |
EL31 |
4 | ||
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

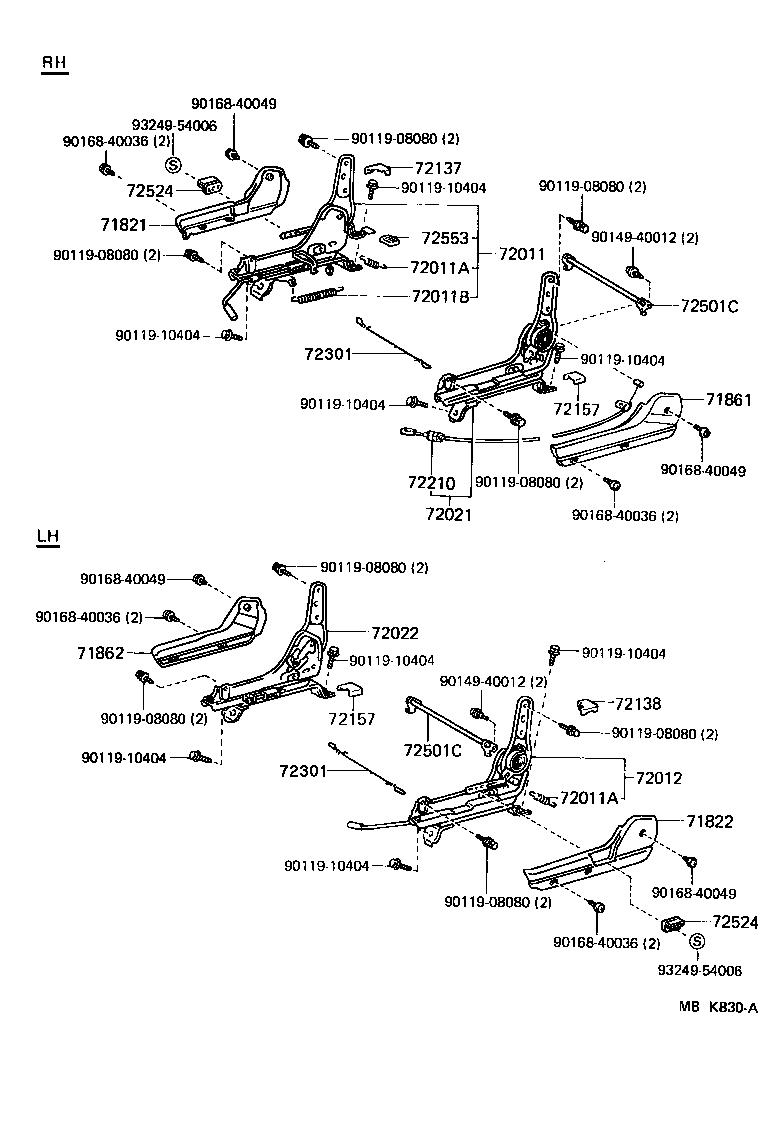

| 71821 - SHIELD, FRONT SEAT SIDE, RH | ||||
| 71811-1606004 |
EL31..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 71811-1606001 |
EL31..5DS BLACK,BLACK,TRIM2# |
1 | ||
| 71811-1606005 |
EL31..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71822 - SHIELD, FRONT SEAT SIDE, LH | ||||
| 71812-1604004 |
EL31 BLUE,BLUE,TRIM8# |
1 | ||
| 71812-1604001 |
EL31 BLACK,BLACK,TRIM2# |
1 | ||
| 71812-1604005 |
EL31 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1604001 |
EL31 BLACK,BLACK,TRIM2# |
1 | ||
| 71861-1604005 |
EL31 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 71861-1604004 |
EL31 BLUE,BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1603001 |
EL31 BLACK,BLACK,TRIM2# |
1 | ||
| 71862-1603004 |
EL31 BLUE,BLUE,TRIM8# |
1 | ||
| 71862-1603005 |
EL31 BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-16010 |
EL31..5DS |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
EL31 |
2 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
EL31 |
2 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16110 |
EL31 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16090 |
EL31..5DS |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16110 |
EL31 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16020 |
EL31 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16020 |
EL31 |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-16020 |
EL31 LH |
1 | ||
| 72157-16020 |
EL31 RH |
1 | ||
| 72157 - COVER, SEAT TRACK BRACKET, INNER | ||||
| 72158-16020 |
EL31 LH |
1 | ||
| 72157-16020 |
EL31 RH |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16060 |
EL31 |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16060 |
EL31 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-12030 |
EL31 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-12030 |
EL31 |
2 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209011 |
EL31 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209024 |
EL31 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
EL31 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203011 |
EL31 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1203025 |
EL31 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203024 |
EL31 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1209011 |
EL31 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1209024 |
EL31 RH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| 72525-1209025 |
EL31 RH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203011 |
EL31 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1203025 |
EL31 LH,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 72526-1203024 |
EL31 LH,BLUE,DEEP BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40012 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 93249-54006 | ||||
