EL31L-ZHHDSA (1986)
Toyota Tercel
Production
Aug 1986
-
Aug 1988
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )3DS,5DS

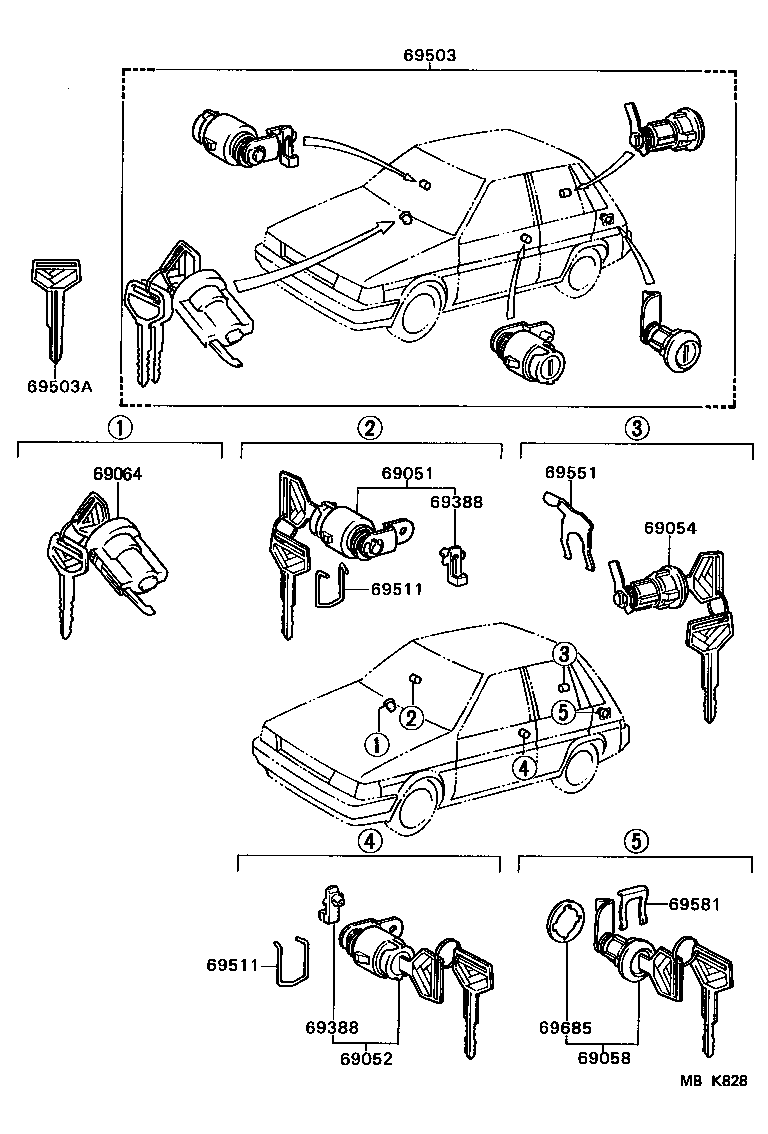

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-16100 |
EL31..3DS,5DS |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-16100 |
EL31..3DS,5DS |
1 | ||
| 69054 - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-16220 |
EL31..3DS,5DS |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-16120 |
EL31..3DS,5DS |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-16110 |
EL31..3DS,5DS |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-20090 |
EL31 LH |
1 | ||
| 69759-20080 |
EL31 RH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-20090 |
EL31 LH |
1 | ||
| 69759-20080 |
EL31 RH |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-16320 |
EL31..3DS,5DS |
1 | ||
| 69005-16330 |
EL31..3DS,5DS W/BACK DOOR OPENER |
1 | ||
| 69005-16340 |
EL31..3DS,5DS W/BACK DOOR OPENER(W/CANCEL) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00112 |
EL31..3DS,5DS MASTER KEY,MASTER KEY |
1 | ||
| 90999-00114 |
EL31..3DS,5DS SUB KEY,SUB KEY |
1 | ||
| 90999-00113 |
EL31..3DS,5DS MASTER KEY,W(*68),MASTER KEY,W/PROTECTOR |
1 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-16010 |
EL31 |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-16010 |
EL31 |
2 | ||
| 69551 - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-16040 |
EL31..3DS,5DS |
1 | ||
| 69581 - RETAINER, FUEL FILLER LID CYLINDER | ||||
| 69511-32010 |
EL31 |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-12020 |
EL31..3DS,5DS |
1 | ||
