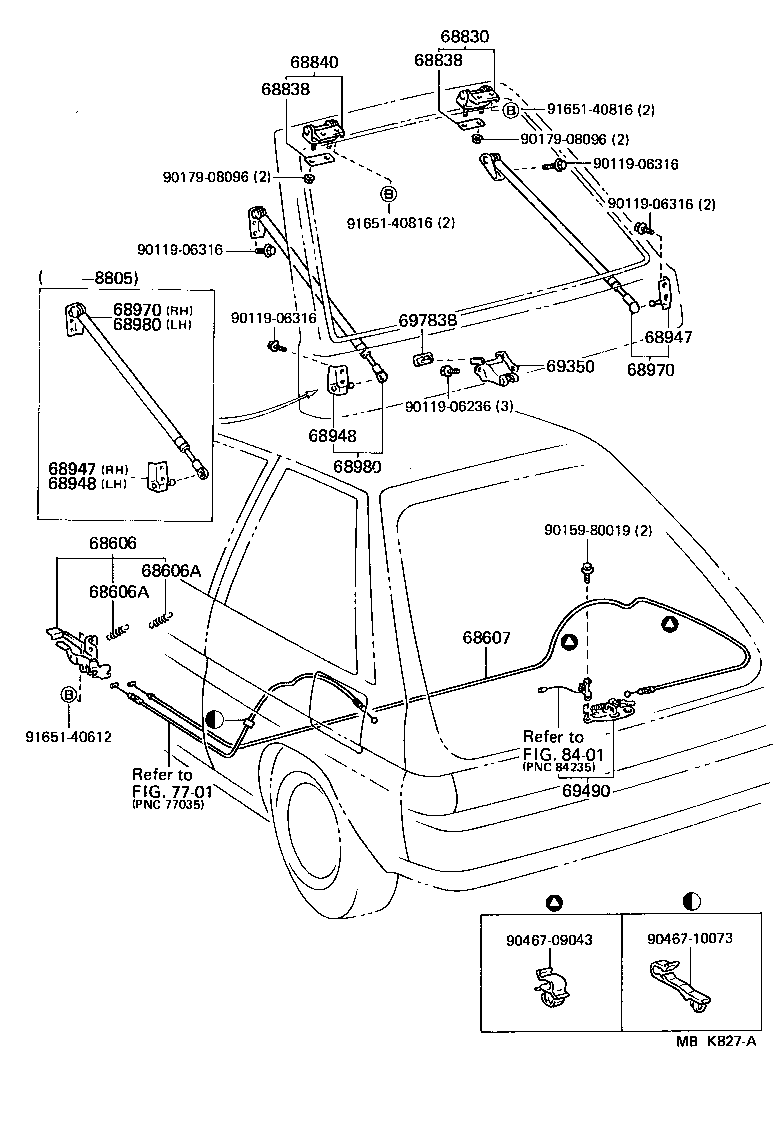

EL31L-ZHHDSA (1986)
Toyota Tercel
(8608- )3DS,5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64606-12050 |
EL31..3DS,5DS |
1 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
EL31..3DS,5DS |
2 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
EL31..3DS,5DS |
2 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-16170 |
EL31..3DS,5DS |
1 | ||
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68801-16030 |
EL31..3DS,5DS |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-10010 |
EL31 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-10010 |
EL31 |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68801-16030 |
EL31..3DS,5DS |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-16010 |
EL31..3DS,5DS |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-16010 |
EL31..3DS,5DS |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-16010 |
EL31..3DS,5DS |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-16010 |
EL31..3DS,5DS |
1 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-16160 |
EL31..5DS |
1 | ||
| 68950-19655 |
EL31..5DS |
1 | ||
| 68950-16180 |
EL31..5DS W/RR WIPER |
1 | ||
| 68950-19665 |
EL31..5DS W/RR WIPER |
1 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-16160 |
EL31..5DS |
1 | ||
| 68950-19655 |
EL31..5DS |
1 | ||
| 68950-16180 |
EL31..5DS W/RR WIPER |
1 | ||
| 68950-19665 |
EL31..5DS W/RR WIPER |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68960-16080 |
EL31..5DS W/RR WIPER |
1 | ||
| 68960-16060 |
EL31..5DS |
1 | ||
| 68960-19355 |
EL31..5DS W/RR WIPER |
1 | ||
| 68960-19345 |
EL31..5DS |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68960-16080 |
EL31..5DS W/RR WIPER |
1 | ||
| 68960-16060 |
EL31..5DS |
1 | ||
| 68960-19355 |
EL31..5DS W/RR WIPER |
1 | ||
| 68960-19345 |
EL31..5DS |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-16100 |
EL31..3DS,5DS |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-16150 |
EL31..3DS,5DS |
1 | ||
| 69430-16160 |
EL31..3DS,5DS W/BACK DOOR OPENER(W/CANCEL) |
1 | ||
| 69430-16140 |
EL31..3DS,5DS W/BACK DOOR OPENER |
1 | ||
| 69783B - BEZEL, BACK DOOR INSIDE HANDLE | ||||
| 69783-1601005 |
EL31..3DS,5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69783-1601004 |
EL31..3DS,5DS BLUE,BLUE,TRIM8# |
1 | ||
| 69783-1601001 |
EL31..3DS,5DS BLACK,NEW BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06236 | ||||
| 90119-06316 | ||||
| 90159-80019 | ||||
| 90179-08096 | ||||
| 90467-09043 | ||||
| 90467-10073 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||
