EL31L-ZHHDSA (1986)
Toyota Tercel
Production
Aug 1986
-
Aug 1988
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )5DS

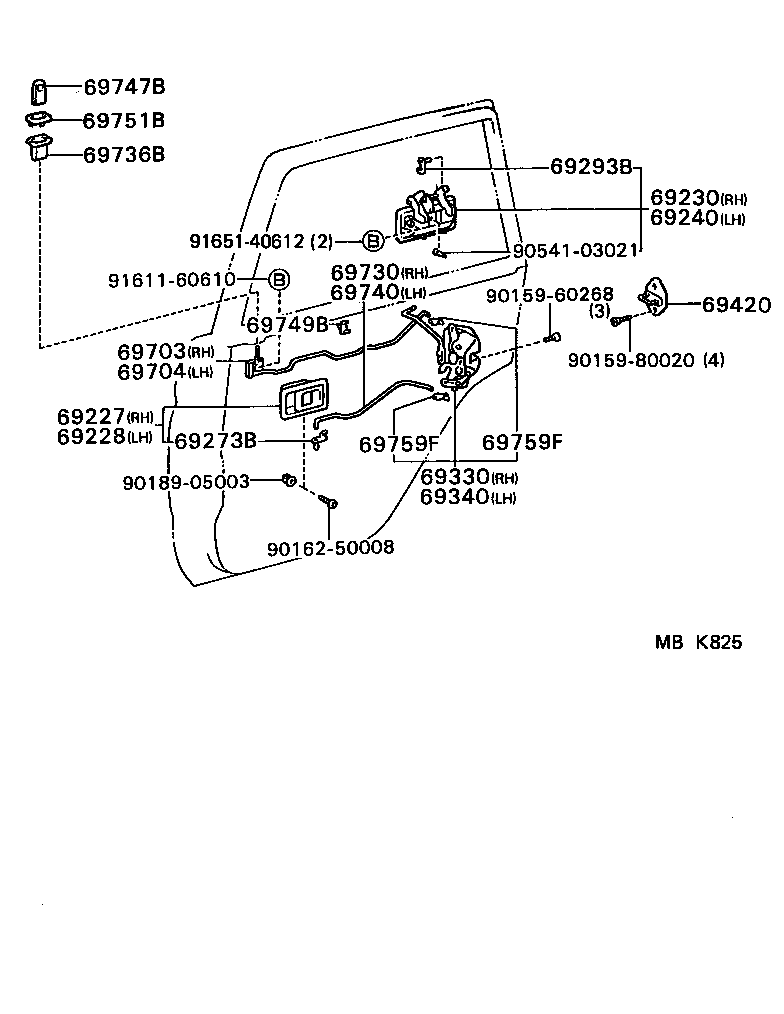

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69207-1002005 |
EL31..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69207-1002001 |
EL31..5DS BLACK,NEW BLACK,TRIM2# |
1 | ||
| 69207-1002014 |
EL31..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69208-1002001 |
EL31..5DS BLACK,NEW BLACK,TRIM2# |
1 | ||
| 69208-1002014 |
EL31..5DS BLUE,BLUE,TRIM8# |
1 | ||
| 69208-1002005 |
EL31..5DS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-16020 |
EL31..5DS |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-16020 |
EL31..5DS |
1 | ||
| 69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR) | ||||
| 69759-20060 |
EL31..5DS RH |
1 | ||
| 69759-20070 |
EL31..5DS LH |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
EL31..5DS LH |
1 | ||
| 69293-12030 |
EL31..5DS RH |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-16110 |
EL31..5DS |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-16110 |
EL31..5DS |
1 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-87001 |
EL31..5DS |
2 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69770-16050 |
EL31..5DS |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69780-16050 |
EL31..5DS |
1 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69713-16030 |
EL31..5DS |
1 | ||
| 69736B - GUIDE, REAR DOOR LOCK LINK | ||||
| 69736-12030 |
EL31..5DS |
2 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69714-16030 |
EL31..5DS |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69741-90K0001 |
EL31..5DS BLACK,BLACK,TRIM2# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-12040 |
EL31..5DS |
2 | ||
| 69751B - HOLDER, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69751-1201014 |
EL31..5DS BLUE,BLUE,TRIM8# |
2 | ||
| 69751-1201011 |
EL31..5DS BLACK,BLACK,TRIM2# |
2 | ||
| 69751-1201005 |
EL31..5DS BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20050 |
EL31..5DS RH |
2 | ||
| 69759-20040 |
EL31..5DS LH |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-20050 |
EL31..5DS RH |
2 | ||
| 69759-20040 |
EL31..5DS LH |
2 | ||
| Common parts | ||||
| 90159-60268 | ||||
| 90159-80020 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 90541-03021 | ||||
| 91611-60610 | ||||
| 91651-40612 | ||||
