EL31L-ZHHDSA (1986)
Toyota Tercel

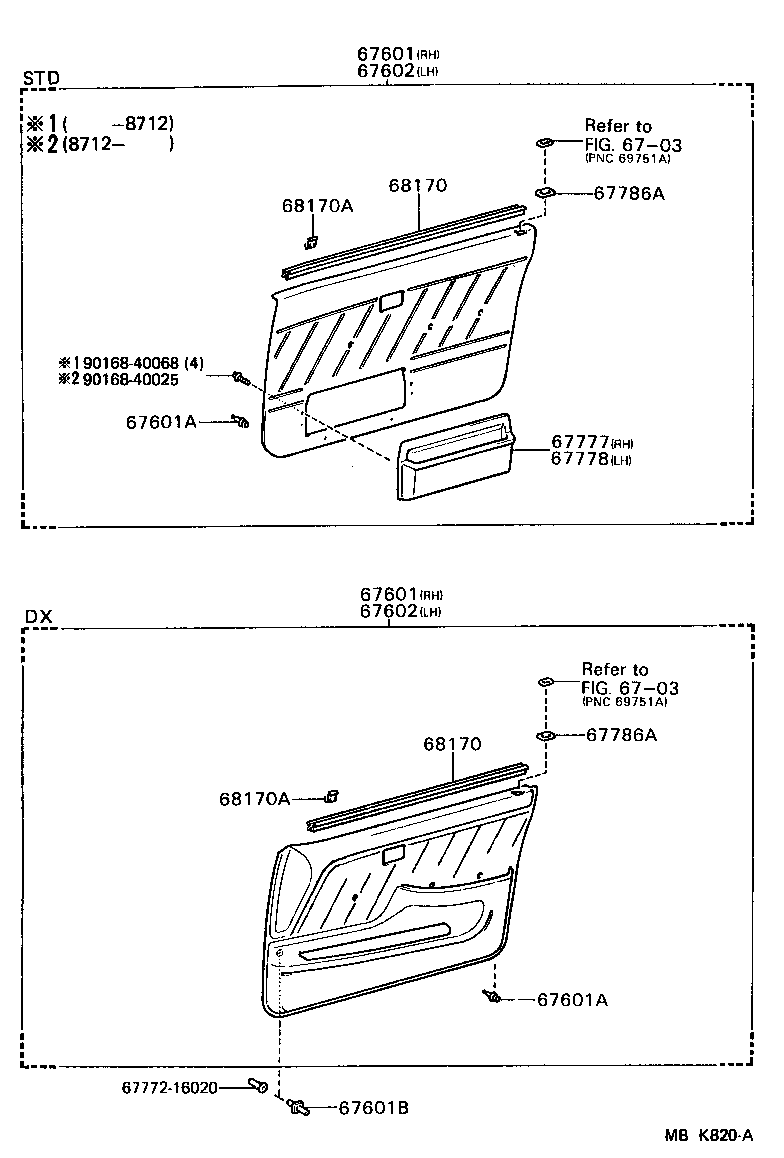

(8608- )5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1667001 |
EL31..5DS..DX VL,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1667004 |
EL31..5DS..DX VL,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1667005 |
EL31..5DS..DX VL,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1668001 |
EL31..5DS..DX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1668004 |
EL31..5DS..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1668005 |
EL31..5DS..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1667001 |
EL31..5DS..DX VL,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1667004 |
EL31..5DS..DX VL,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1667005 |
EL31..5DS..DX VL,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67610-1668001 |
EL31..5DS..DX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1668004 |
EL31..5DS..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1668005 |
EL31..5DS..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
EL31..5DS |
30 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
EL31..5DS |
30 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0706805 |
EL31..5DS..DX BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 90467-0706801 |
EL31..5DS..DX BLACK,BLACK,TRIM2# |
2 | ||
| 90467-0706804 |
EL31..5DS..DX BLUE,BLUE,TRIM8# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1655001 |
EL31..5DS..DX VL,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1655004 |
EL31..5DS..DX VL,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1655005 |
EL31..5DS..DX VL,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1656001 |
EL31..5DS..DX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1656004 |
EL31..5DS..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1656005 |
EL31..5DS..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1655001 |
EL31..5DS..DX VL,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1655004 |
EL31..5DS..DX VL,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1655005 |
EL31..5DS..DX VL,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67620-1656001 |
EL31..5DS..DX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1656004 |
EL31..5DS..DX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1656005 |
EL31..5DS..DX FB,BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67786-12010 |
EL31..5DS |
2 | ||
| 67786A - RETAINER, DOOR LOCKING BUTTON COLLAR(FOR FRONT DOOR) | ||||
| 67786-12010 |
EL31..5DS |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-16070 |
EL31..5DS RH |
1 | ||
| 68172-16070 |
EL31..5DS LH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-16070 |
EL31..5DS RH |
1 | ||
| 68172-16070 |
EL31..5DS LH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-16040 |
EL31..5DS |
14 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 67773-16040 |
EL31..5DS |
14 | ||
| Common parts | ||||
| 67772-16020 | ||||
| 90168-40025 | ||||
| 90168-40068 | ||||
| Linked diagrams | ||||
| 6703 | ||||

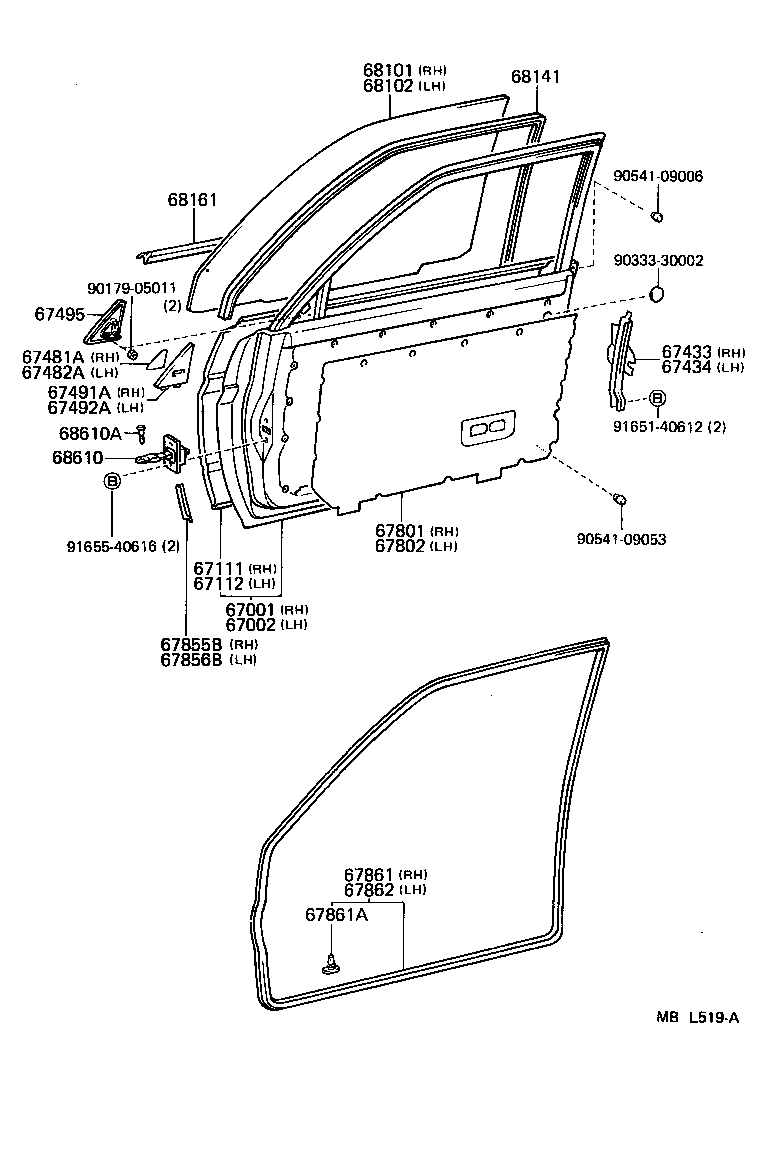

(8608- )5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-16270 |
EL31..5DS |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-16230 |
EL31..5DS |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-16180 |
EL31..5DS |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-16160 |
EL31..5DS |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67403-16070 |
EL31..5DS |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67404-16070 |
EL31..5DS |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-16130 |
EL31 |
1 | ||
| 67481-16170 |
EL31 |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67481-16170 |
EL31..DX |
1 | ||
| 67481-16130 |
EL31..DX |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16080 |
EL31..5DS..DX W/HOLE |
1 | ||
| 67491-16070 |
EL31..5DS W/O HOLE |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16080 |
EL31..5DS W/HOLE |
1 | ||
| 67492-16070 |
EL31..5DS W/O HOLE |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67495-16060 |
EL31..5DS |
1 | ||
| 67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH | ||||
| 67831-16140 |
EL31..5DS |
1 | ||
| 67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH | ||||
| 67832-16110 |
EL31..5DS |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-16010 |
EL31 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-16010 |
EL31 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-16220 |
EL31..5DS |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
EL31..5DS |
34 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-16220 |
EL31..5DS |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-16170 |
EL31..5DS..DX *TT,T=3.5,*TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-16170 |
EL31..5DS..DX *TT,T=3.5,*TT,T=3.5 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-16160 |
EL31..5DS |
2 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68160-16080 |
EL31..5DS RH |
1 | ||
| 68210-16070 |
EL31..5DS LH |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-10020 |
EL31 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90A00 |
EL31 |
2 | ||
| Common parts | ||||
| 90179-05011 | ||||
| 90333-30002 | ||||
| 90541-09006 | ||||
| 90541-09053 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
