EL31L-ZHHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3DS,5DS

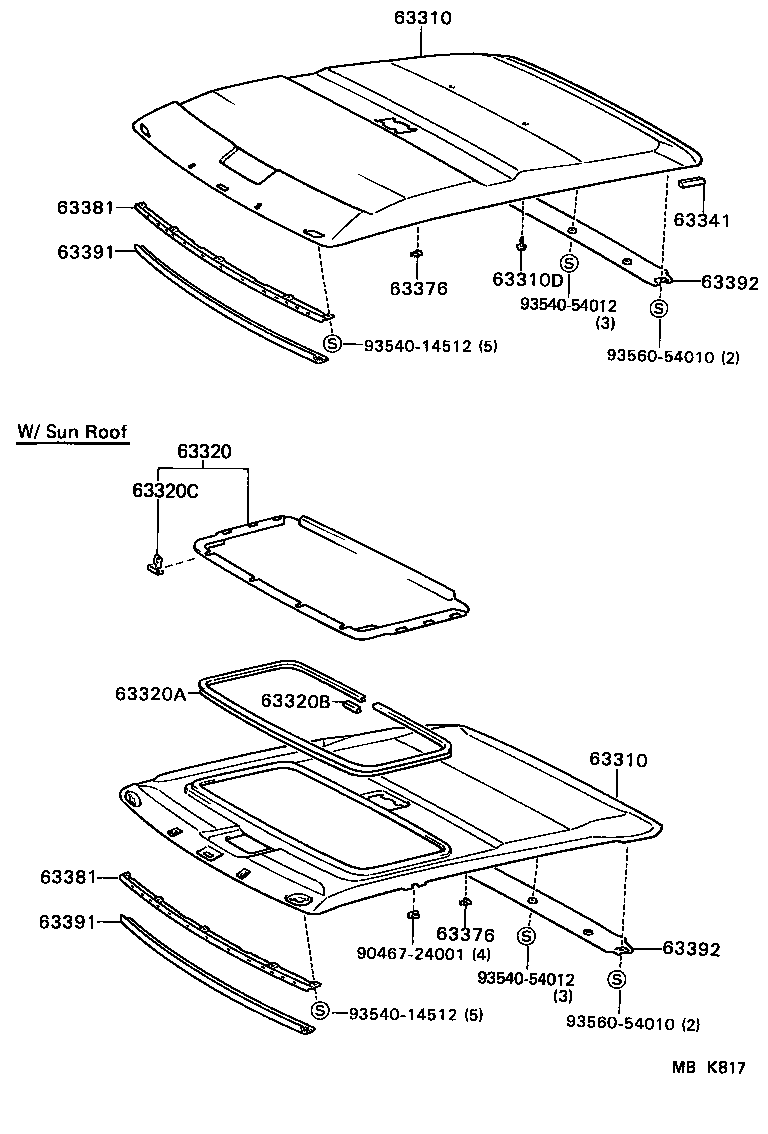

Click highlighted areas on diagram

diagram 63310 63310 63310D 63320 63320A 63320B 63320C 63341 63376 63376 63381 63381 63391 63391 63392 63392 9046724001 9354014512 9354014512 9354054012 9354054012 9356054010 9356054010
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-1621008

EL31..5DS

IVORY,IVORY

 1
63310-1621005

EL31..5DS

BEIGE,LIGHT BEIGE,TRIM4#

 1
63310-1621003

EL31..5DS

GRAY,GRAY,TRIM2#

 1
63310-1621004

EL31..5DS

BLUE,LIGHT BLUE,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63310-1621008

EL31..5DS

IVORY,IVORY

 1
63310-1621005

EL31..5DS

BEIGE,LIGHT BEIGE,TRIM4#

 1
63310-1621003

EL31..5DS

GRAY,GRAY,TRIM2#

 1
63310-1621004

EL31..5DS

BLUE,LIGHT BLUE,TRIM8#

 1
63310D - CLIP, ROOF HEADLINING
90467-0903215

EL31..5DS

BEIGE,LIGHT BEIGE,TRIM4#

 2
90467-0903223

EL31..5DS

GRAY,GRAY,TRIM2#

 2
90467-0903204

EL31..5DS

BLUE,LIGHT BLUE,TRIM8#

 2
90467-0903228

EL31..5DS

IVORY,IVORY

 2
63341 - PAD, ROOF SILENCER, NO.1
63343-16010

EL31..3DS,5DS

 2
63376 - CLIP, HEADLINING
63395-12020

EL31

 6
63376 - CLIP, HEADLINING
63395-12020

EL31

 6
63381 - RETAINER, HEADLINING, FRONT
63381-16030

EL31

 1
63381 - RETAINER, HEADLINING, FRONT
63381-16030

EL31

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1603005

EL31..3DS,5DS

BEIGE,DARK BEIGE,TRIM4#

 1
63391-1603004

EL31..3DS,5DS

BLUE,BLUE,TRIM8#

 1
63391-1603001

EL31..3DS,5DS

BLACK,BLACK,TRIM2#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-1603005

EL31..3DS,5DS

BEIGE,DARK BEIGE,TRIM4#

 1
63391-1603004

EL31..3DS,5DS

BLUE,BLUE,TRIM8#

 1
63391-1603001

EL31..3DS,5DS

BLACK,BLACK,TRIM2#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-1607001

EL31..5DS

BLACK,BLACK,TRIM2#

 1
63392-1607004

EL31..5DS

BLUE,BLUE,TRIM8#

 1
63392-1607005

EL31..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-1607001

EL31..5DS

BLACK,BLACK,TRIM2#

 1
63392-1607004

EL31..5DS

BLUE,BLUE,TRIM8#

 1
63392-1607005

EL31..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
Common parts
90467-24001
93540-14512
93540-54012
93560-54010
