EL31L-ZHHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )5DS

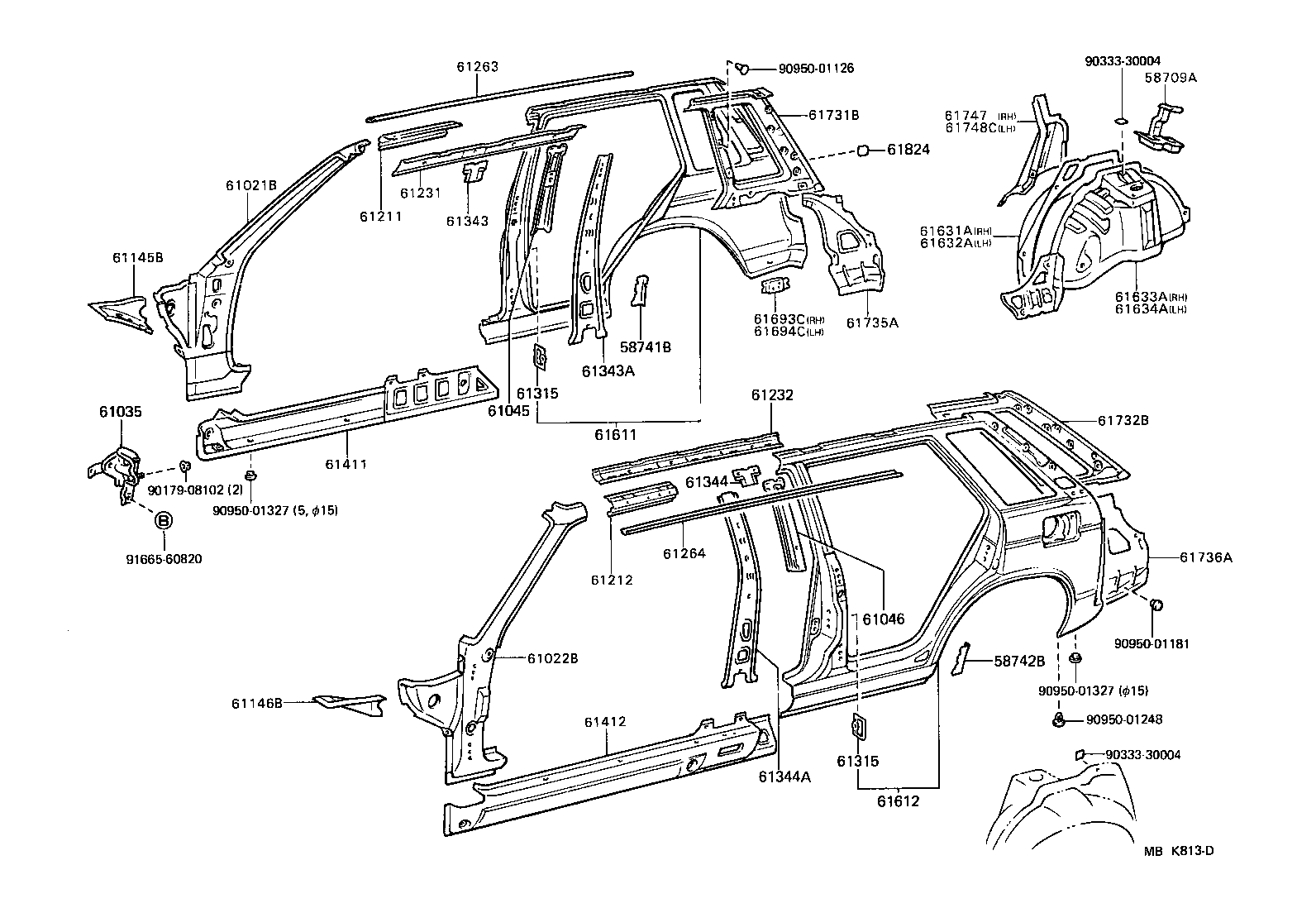

Click highlighted areas on diagram

diagram 58709A 58741B 58742B 61021B 61022B 61035 61045 61046 61145B 61146B 61211 61212 61231 61232 61263 61264 61315 61315 61343 61343A 61344 61344A 61411 61412 61611 61612 61631A 61632A 61633A 61634A 61693C 61694C 61731B 61732B 61735A 61736A 61747 61748C 61824 9017908102 9033330004 9033330004 9095001126 9095001181 9095001248 9095001327 9095001327 9166560820
Part # Description Qty Price
58709A - CARRIER SUB-ASSY, JACK
58709-16010

EL31..3DS,5DS

 1
58741B - PROTECTOR, QUARTER PANEL, RH
58741-16020

EL31..5DS

 1
58742B - PROTECTOR, QUARTER PANEL, LH
58742-16020

EL31..5DS

 1
61021B - PILLAR SUB-ASSY, FRONT BODY, UPPER RH
61021-16200

EL31..3DS,5DS

 1
61022B - PILLAR SUB-ASSY, FRONT BODY, UPPER LH
61022-16220

EL31..3DS,5DS

 1
61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61035-16010

EL31

 1
61045 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, RH
61045-16060

EL31..5DS

 1
61046 - REINFORCE SUB-ASSY, BELT TO CENTER PILLAR, LH
61046-16060

EL31..5DS

 1
61145B - GUSSET, FRONT BODY PILLAR, LOWER RH
61145-16010

EL31

 1
61146B - GUSSET, FRONT BODY PILLAR, LOWER LH
61146-16010

EL31

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-16080

EL31..5DS

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-16080

EL31..5DS

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-16150

EL31..5DS

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-16150

EL31..5DS

 1
61263 - CHANNEL, ROOF DRIP, REAR RH
61267-16070

EL31..5DS

 1
61264 - CHANNEL, ROOF DRIP, REAR LH
61268-16070

EL31..5DS

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61315-22020

EL31..5DS

 4
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61315-22020

EL31..5DS

 4
61343 - PILLAR, CENTER BODY, INNER UPPER RH
61341-16030

EL31..5DS

 1
61343A - PILLAR, CENTER BODY, INNER RH
61343-16040

EL31..5DS

 1
61344 - PILLAR, CENTER BODY, INNER UPPER LH
61342-16030

EL31..5DS

 1
61344A - PILLAR, CENTER BODY, INNER LH
61344-16040

EL31..5DS

 1
61411 - PANEL, ROCKER, OUTER RH
61401-16150

EL31..5DS

 1
61412 - PANEL, ROCKER, OUTER LH
61402-16150

EL31..5DS

 1
61611 - PANEL, QUARTER, RH
61601-16510

EL31..5DS

 1
61601-16511

EL31..5DS

 1
61612 - PANEL, QUARTER, LH
61602-16790

EL31..5DS

 1
61602-16800

EL31..5DS

W/FUEL LID OPENER

 1
61602-16791

EL31..5DS

 1
61602-16801

EL31..5DS

W/FUEL LID OPENER

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-16140

EL31

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-16140

EL31

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-16140

EL31..5DS

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-16160

EL31..5DS

 1
61693C - RETAINER, REAR SEAT BACK SET, RH
61693-16020

EL31..3DS,5DS

 1
61694C - RETAINER, REAR SEAT BACK SET, LH
61694-16010

EL31..3DS,5DS

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-16140

EL31..5DS

 1
61731-16141

EL31..5DS

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-16141

EL31..5DS

 1
61732-16140

EL31..5DS

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-16080

EL31..3DS,5DS

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-16080

EL31..3DS,5DS

 1
61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61747-16010

EL31..5DS

 1
61747-16011

EL31..5DS

 1
61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
61748-16011

EL31..5DS

 1
61748-16010

EL31..5DS

 1
61824 - PLATE, NOISE CONTROL, NO.1
61824-12010

EL31

 2
Common parts
90179-08102
90333-30004
90950-01126
90950-01181
90950-01248
90950-01327
91665-60820
