EL31L-ZHHDSA (1986)
Toyota Tercel
Production
Aug 1986
-
Aug 1988
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

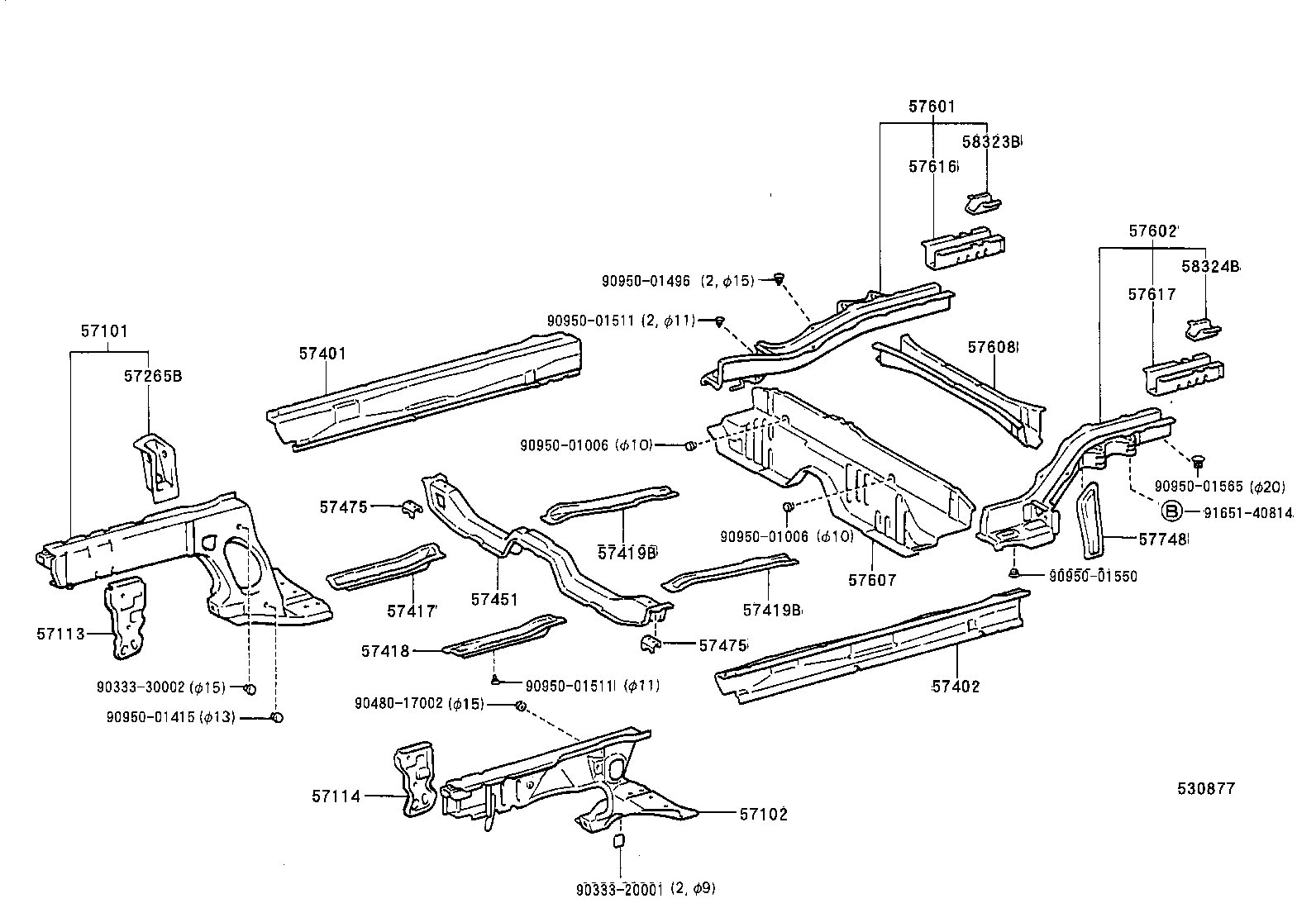

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-16160 |
EL31 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-16120 |
EL31..3FC |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-16050 |
EL31 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-16050 |
EL31 |
1 | ||
| 57265B - BRACKET, ENGINE MOUNTING, RH | ||||
| 57265-16020 |
EL31 |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-16140 |
EL31 |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-16140 |
EL31 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-10060 |
EL31 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-10050 |
EL31 |
1 | ||
| 57419B - REINFORCEMENT, FRONT FLOOR UNDER, REAR | ||||
| 57419-10020 |
EL31 |
2 | ||
| 57419B - REINFORCEMENT, FRONT FLOOR UNDER, REAR | ||||
| 57419-10020 |
EL31 |
2 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-10050 |
EL31 |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-10030 |
EL31 RH |
1 | ||
| 57476-10020 |
EL31 LH |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-10030 |
EL31 RH |
1 | ||
| 57476-10020 |
EL31 LH |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-16070 |
EL31..3DS,5DS |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-16070 |
EL31..3DS,5DS |
1 | ||
| 57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1 | ||||
| 57605-16040 |
EL31 |
1 | ||
| 57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2 | ||||
| 57606-16060 |
EL31 |
1 | ||
| 57616 - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-16906 |
EL31..3DS,5DS |
1 | ||
| 57617 - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-16905 |
EL31..3DS,5DS |
1 | ||
| 57748 - REINFORCEMENT, LATERAL ROD BRACKET | ||||
| 57748-10010 |
EL31 |
1 | ||
| 58323B - REINFORCE, REAR BUMPER ARM SUPPORT, RH | ||||
| 58323-16030 |
EL31 |
1 | ||
| 58324B - REINFORCE, REAR BUMPER ARM SUPPORT, LH | ||||
| 58324-16050 |
EL31 |
1 | ||
| Common parts | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90480-17002 | ||||
| 90950-01006 | ||||
| 90950-01415 | ||||
| 90950-01496 | ||||
| 90950-01511 | ||||
| 90950-01550 | ||||
| 90950-01565 | ||||
| 91651-40814 | ||||
