EL31L-ZHHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

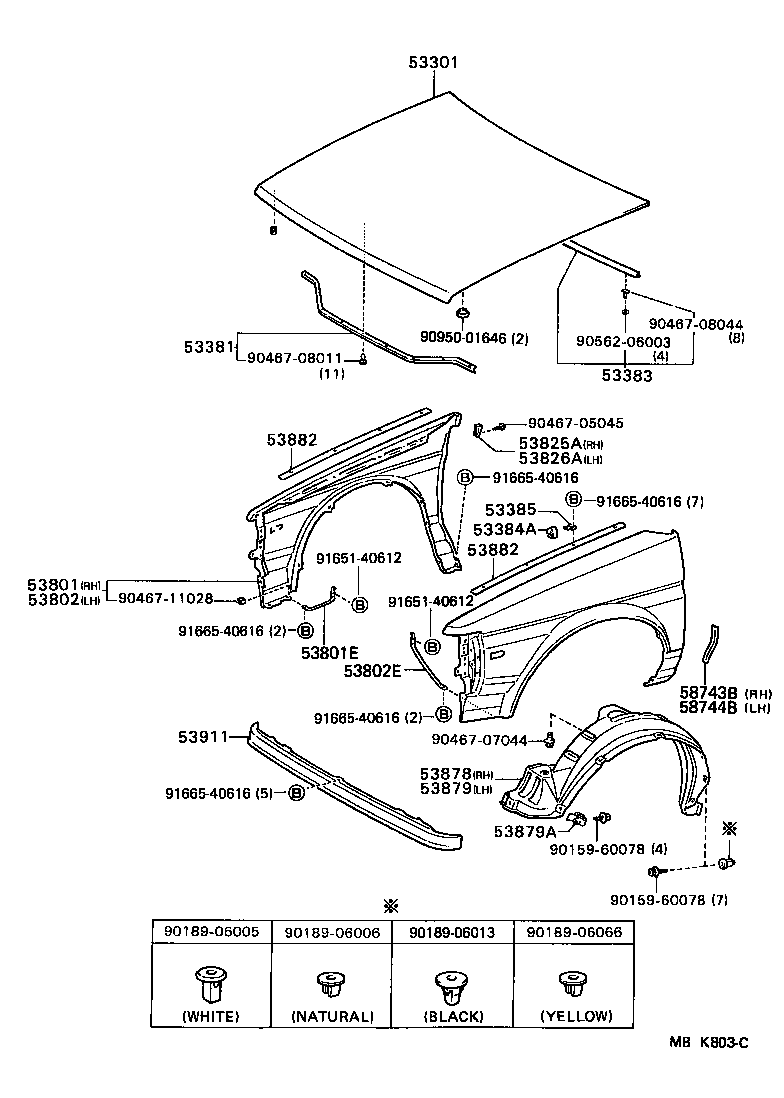

Click highlighted areas on diagram

diagram 53301 53381 53383 53384A 53385 53801 53801E 53802 53802E 53825A 53826A 53878 53879 53879A 53882 53882 53911 58743B 58744B 9015960078 9015960078 9018906005 9018906006 9018906013 9018906066 9046705045 9046707044 9046708011 9046708044 9046711028 9056206003 9095001646 9165140612 9165140612 9166540616 9166540616 9166540616 9166540616 9166540616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-16081

EL31

 1
53301-16080

EL31

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-16040

EL31

 1
53383 - SEAL, HOOD TO COWL TOP
53383-16030

EL31

 1
53384A - BUMPER, FENDER TO HOOD
53384-16030

EL31

 2
53385 - RETAINER, HOOD, BUMPER
53385-14010

EL31

RH

 1
53386-14010

EL31

LH

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-16080

EL31

 1
53801-16081

EL31

 1
53801E - BRACE, FRONT FENDER TO APRON, RH
53835-16020

EL31

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-16081

EL31

 1
53802-16080

EL31

 1
53802E - BRACE, FRONT FENDER TO APRON, LH
53836-16020

EL31

 1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-16010

EL31

 1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-16010

EL31

 1
53878 - LINER, FRONT FENDER, RH
53875-16030

EL31

 1
53879 - LINER, FRONT FENDER, LH
53876-16030

EL31

 1
53879A - RETAINER, FRONT FENDER LINER
53879-14010

EL31

 8
53882 - PACKING, FRONT FENDER MAIN
53882-10050

EL31

 2
53882 - PACKING, FRONT FENDER MAIN
53882-10050

EL31

 2
53911 - PANEL, FRONT VALANCE
53901-16050

EL31

 1
58743B - PROTECTER, FRONT FENDER PANEL, RH
58743-12010

EL31

 1
58744B - PROTECTER, FRONT FENDER PANEL, LH
58743-12010

EL31

 1
Common parts
90159-60078
90189-06005
90189-06006
90189-06013
90189-06066
90467-05045
90467-07044
90467-08011
90467-08044
90467-11028
90562-06003
90950-01646
91651-40612
91665-40616
