EL31L-ZHHDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

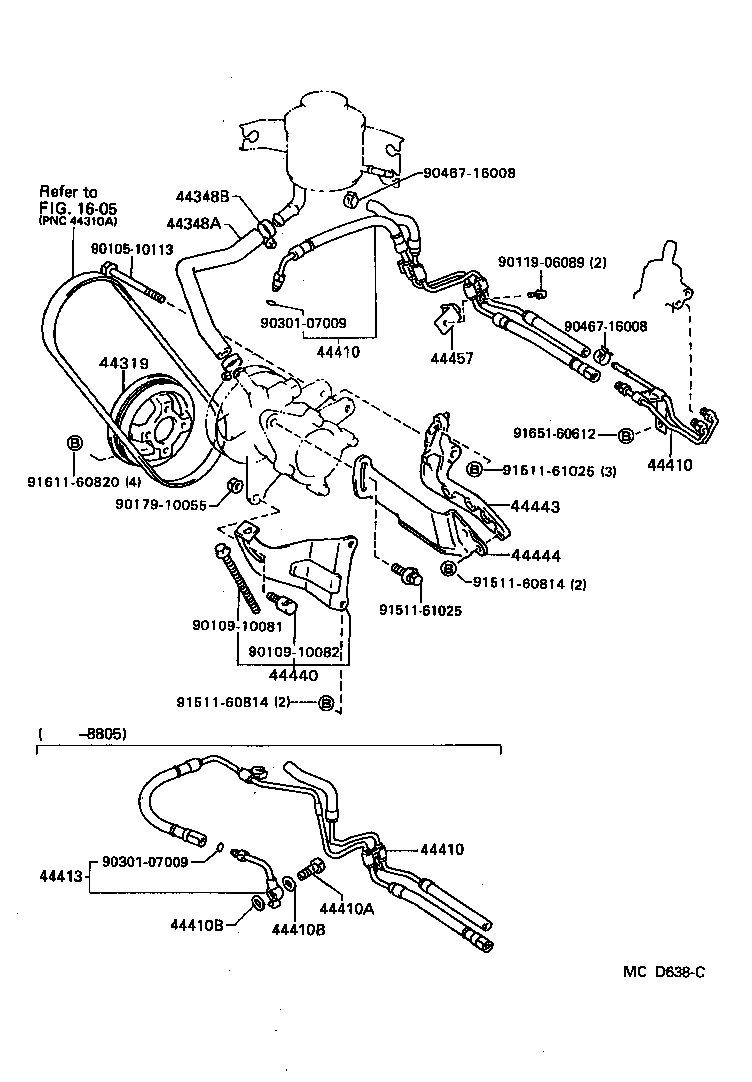

Click highlighted areas on diagram

diagram 1605 44319 44348A 44348B 44410 44410 44410 44410A 44410B 44410B 44413 44440 44443 44444 44457 9010510113 9010910081 9010910082 9011906089 9017910055 9030107009 9030107009 9046716008 9046716008 9151160814 9151160814 9151161025 9151161025 9161160820 9165160612
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-16020

EL31..TER

 1
44319-16020

EL31..3FC,5F;EL31..4F..STD..CND

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-16010

EL31..TER

 1
44348-16010

EL31..3FC,5F;EL31..4F..STD..CND

 1
44348-16011

EL31..TER

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

EL31..TER

 2
90460-26001

EL31..3FC,5F;EL31..4F..STD..CND

 2
90467-21005

EL31..TER

 2
44410 - TUBE ASSY, PRESSURE FEED
44410-16030

EL31..TER

GEAR SIDE

 1
44410-16040

EL31..TER

PUMP SIDE

 1
44410-16030

EL31..3FC,5F;EL31..4F..STD..CND

GEAR SIDE

 1
44410-16040

EL31..3FC,5F;EL31..4F..STD..CND

PUMP SIDE

 1
44410-16041

EL31..TER

PUMP SIDE

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-16030

EL31..TER

GEAR SIDE

 1
44410-16040

EL31..TER

PUMP SIDE

 1
44410-16030

EL31..3FC,5F;EL31..4F..STD..CND

GEAR SIDE

 1
44410-16040

EL31..3FC,5F;EL31..4F..STD..CND

PUMP SIDE

 1
44410-16041

EL31..TER

PUMP SIDE

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-16030

EL31..TER

GEAR SIDE

 1
44410-16040

EL31..TER

PUMP SIDE

 1
44410-16030

EL31..3FC,5F;EL31..4F..STD..CND

GEAR SIDE

 1
44410-16040

EL31..3FC,5F;EL31..4F..STD..CND

PUMP SIDE

 1
44410-16041

EL31..TER

PUMP SIDE

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

EL31..3FC,5F;EL31..4F..STD..CND

 1
90401-16008

EL31..TER

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

EL31..TER

 2
90430-16242

EL31..3FC,5F;EL31..4F..STD..CND

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

EL31..TER

 2
90430-16242

EL31..3FC,5F;EL31..4F..STD..CND

 2
44413 - TUBE, PRESSURE FEED, NO.1
44413-16020

EL31..TER

 1
44413-16050

EL31..TER

 1
44413-16020

EL31..3FC,5F;EL31..4F..STD..CND

 1
44440 - BRACKET ASSY, PUMP
44440-16020

EL31..3FC,5F;EL31..4F..STD..CND

 1
44440-16020

EL31..TER

 1
44443 - BRACKET, PUMP
44443-16010

EL31..3FC,5F;EL31..4F..STD..CND

 1
44443-16010

EL31..TER

 1
44444 - STAY, PUMP, REAR
44444-16010

EL31..TER

 1
44444-16010

EL31..3FC,5F;EL31..4F..STD..CND

 1
44444-16011

EL31..TER

 1
44457 - BRACKET, TUBE SUPPORT, NO.1
44457-16030

EL31..TER

 1
Common parts
90105-10113
90109-10081
90109-10082
90119-06089
90179-10055
90301-07009
90467-16008
91511-60814
91511-61025
91611-60820
91651-60612
Linked diagrams
1605
