EL31L-ZHHDSA (1986)
Toyota Tercel
Production
Aug 1986
-
Aug 1988
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )

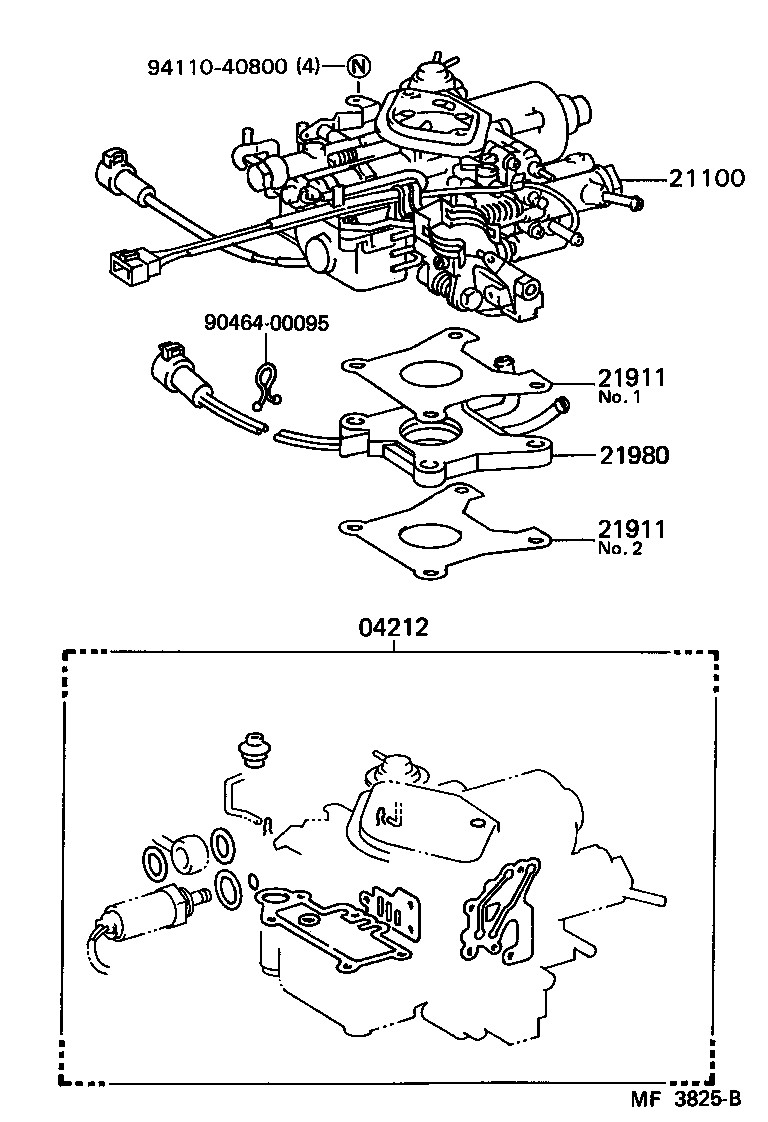

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-11040 |
3E..EL31 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-11400 |
3E..EL31..3FC..USA |
1 | ||
| 21100-11401 |
3E..EL31..3FC |
1 | ||
| 21100-11431 |
3E..EL31..3FC..USA CALIFORNIA SPEC |
1 | ||
| 21100-11430 |
3E..EL31..3FC..USA CALIFORNIA SPEC |
1 | ||
| 21100-11432 |
3E..EL31..3FC..USA CALIFORNIA SPEC |
1 | ||
| 21100-11402 |
3E..EL31..3FC |
1 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-11020 |
3E..EL31 NO.1 |
1 | ||
| 21911-11030 |
3E..EL31 NO.2 |
1 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-11020 |
3E..EL31 NO.1 |
1 | ||
| 21911-11030 |
3E..EL31 NO.2 |
1 | ||
| 21980 - HEATER ASSY, COLD MIXTURE | ||||
| 21980-11010 |
3E..EL31 |
1 | ||
| Common parts | ||||
| 90464-00095 | ||||
| 94110-40800 | ||||
