EL31L-ZHHDSA (1988)
Toyota Tercel
Production
Aug 1988
-
Aug 1989
Engine
3E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

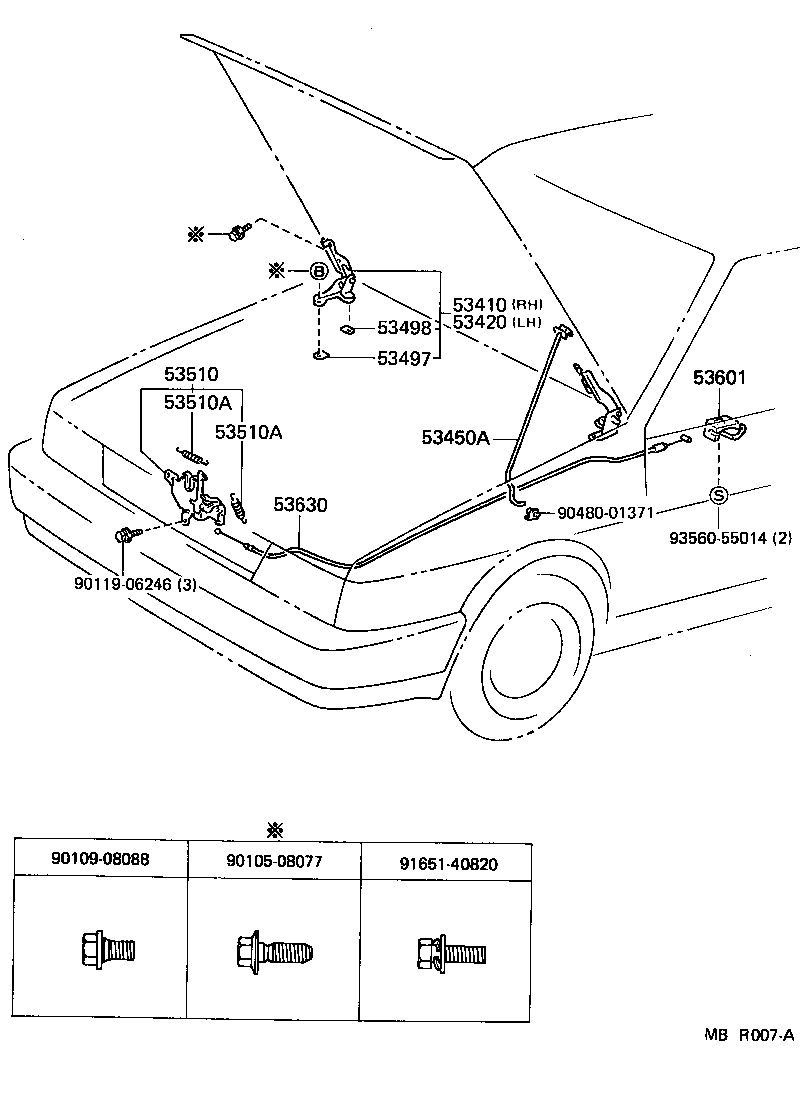

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-16041 |
EL31 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-16021 |
EL31 |
1 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53440-16020 |
EL31 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-14071 |
EL31 |
1 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-14011 |
EL31 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-16101 |
EL31..TER |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09029 |
EL31 WD=0.9,CW=26.5,WD=0.9 |
1 | ||
| 90506-20008 |
EL31 WD=2.0,CW=17,CW=17.0,WD=2.0 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09029 |
EL31 WD=0.9,CW=26.5,WD=0.9 |
1 | ||
| 90506-20008 |
EL31 WD=2.0,CW=17,CW=17.0,WD=2.0 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-1002014 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 53601-1002026 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 53601-1002001 |
EL31 NEW BLACK,TRIM2# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-16160 |
EL31 |
1 | ||
| Common parts | ||||
| 90105-08077 | ||||
| 90109-08088 | ||||
| 90119-06246 | ||||
| 90480-01371 | ||||
| 91651-40820 | ||||
| 93560-55014 | ||||
