EL31L-ZGMRSK (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CND

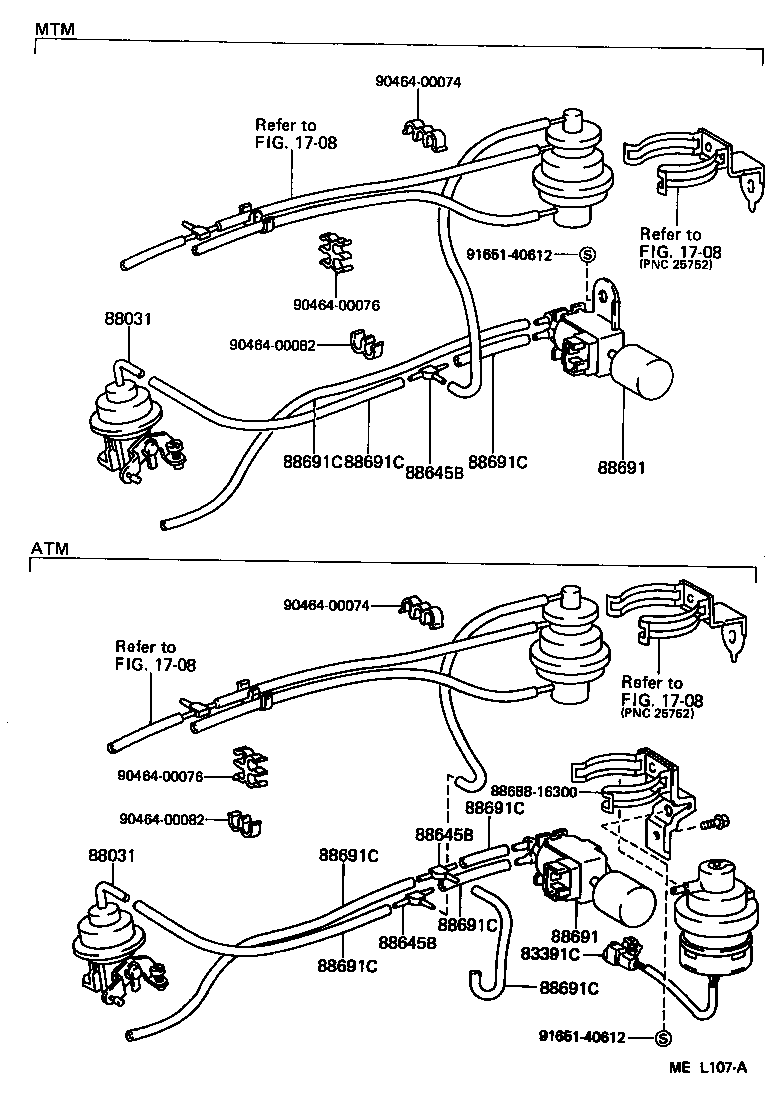

Click highlighted areas on diagram

diagram 1708 1708 1708 1708 83391C 88031 88031 88645B 88645B 88645B 8868816300 88691 88691 88691C 88691C 88691C 88691C 88691C 88691C 88691C 88691C 9046400074 9046400074 9046400076 9046400076 9046400082 9046400082 9165140612 9165140612
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-16080

EL31..CND

 1
88031 - ACTUATOR SET, IDLE-UP
88031-16080

EL31..CND

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001

EL31..MTM..CND

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001

EL31..MTM..CND

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001

EL31..MTM..CND

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-16050

EL31..CND

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-16050

EL31..CND

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EL31..MTM..CND

*H,L=300

 1
90999-92002

EL31..CND

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EL31..MTM..CND

*H,L=300

 1
90999-92002

EL31..CND

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EL31..MTM..CND

*H,L=300

 1
90999-92002

EL31..CND

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EL31..MTM..CND

*H,L=300

 1
90999-92002

EL31..CND

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EL31..MTM..CND

*H,L=300

 1
90999-92002

EL31..CND

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EL31..MTM..CND

*H,L=300

 1
90999-92002

EL31..CND

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EL31..MTM..CND

*H,L=300

 1
90999-92002

EL31..CND

*H,L=300

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

EL31..MTM..CND

*H,L=300

 1
90999-92002

EL31..CND

*H,L=300

 1
Common parts
88688-16300
90464-00074
90464-00076
90464-00082
91651-40612
Linked diagrams
1708
