8718 - HEATING & AIR CONDITIONING - COOLER PIPING

EL31L-ZGMRSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990

Engine 3E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

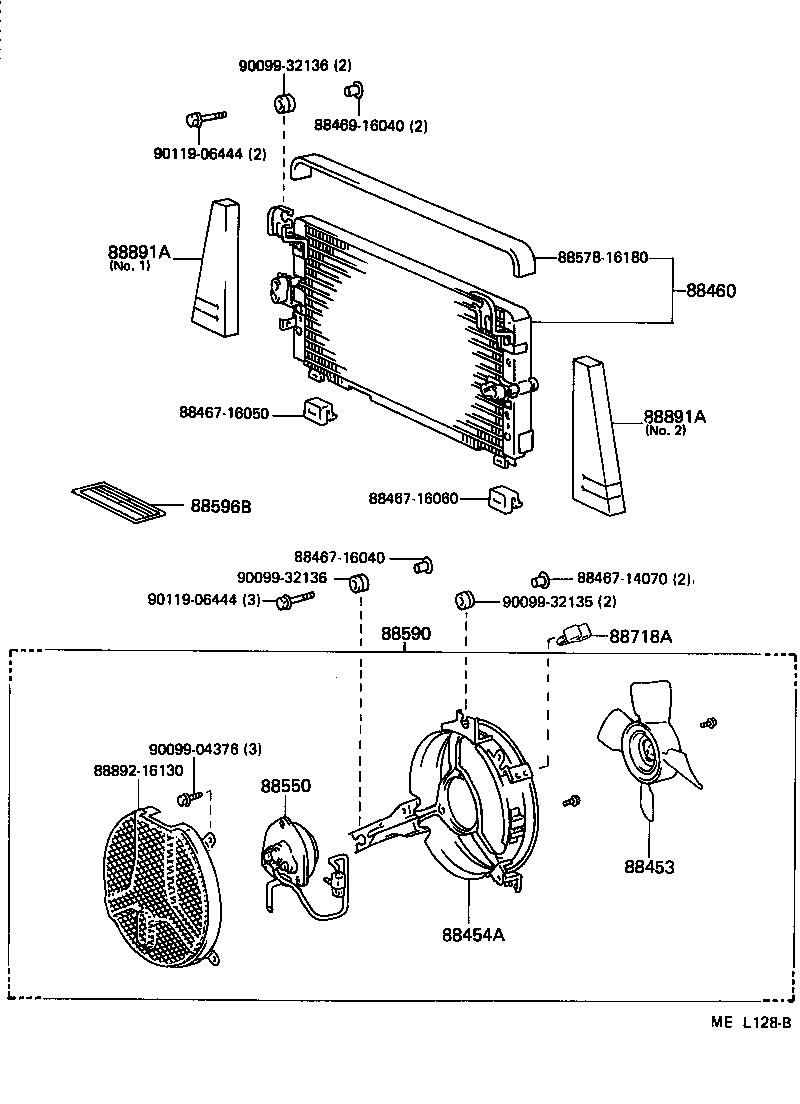

ILLUST NO. 1 OF 2(8808- )USA

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-12050	EL31..TER..USA..CBR	08/1988 - 09/1990	1
88454A - SHROUD, FAN
88454-16090	EL31..TER..USA	08/1988 - 09/1990	1
88460 - CONDENSER ASSY, COOLER
88460-16200	EL31..TER..USA	08/1988 - 09/1990	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12120	EL31..TER..USA..CBR	08/1988 - 09/1990	1
88590 - BLOWER ASSY, W/SHROUD
88590-16020	EL31..TER..USA..CBR	08/1988 - 09/1990	1
88596B - PLATE, CAUTION, NO.1
88596-24010	EL31..TER..USA	08/1988 - 09/1990	1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-16360	EL31..(DX,STD)..USA..CBR	08/1988 - 09/1990	1
88718-16360	EL31..(DX,STD)..USA..CBR	08/1988 - 09/1990	5
88891A - PACKING A (FOR COOLER)
88578-16170	EL31..TER..USA NO.2	08/1988 - 09/1990	1
88578-16130	EL31..TER..USA NO.1	08/1988 - 09/1990	1
88891A - PACKING A (FOR COOLER)
88578-16170	EL31..TER..USA NO.2	08/1988 - 09/1990	1
88578-16130	EL31..TER..USA NO.1	08/1988 - 09/1990	1
Common parts
88467-14070
88467-16040
88467-16050
88467-16060
88469-16040
88578-16180
88892-16130
90099-04376
90099-32135
90099-32136
90119-06444

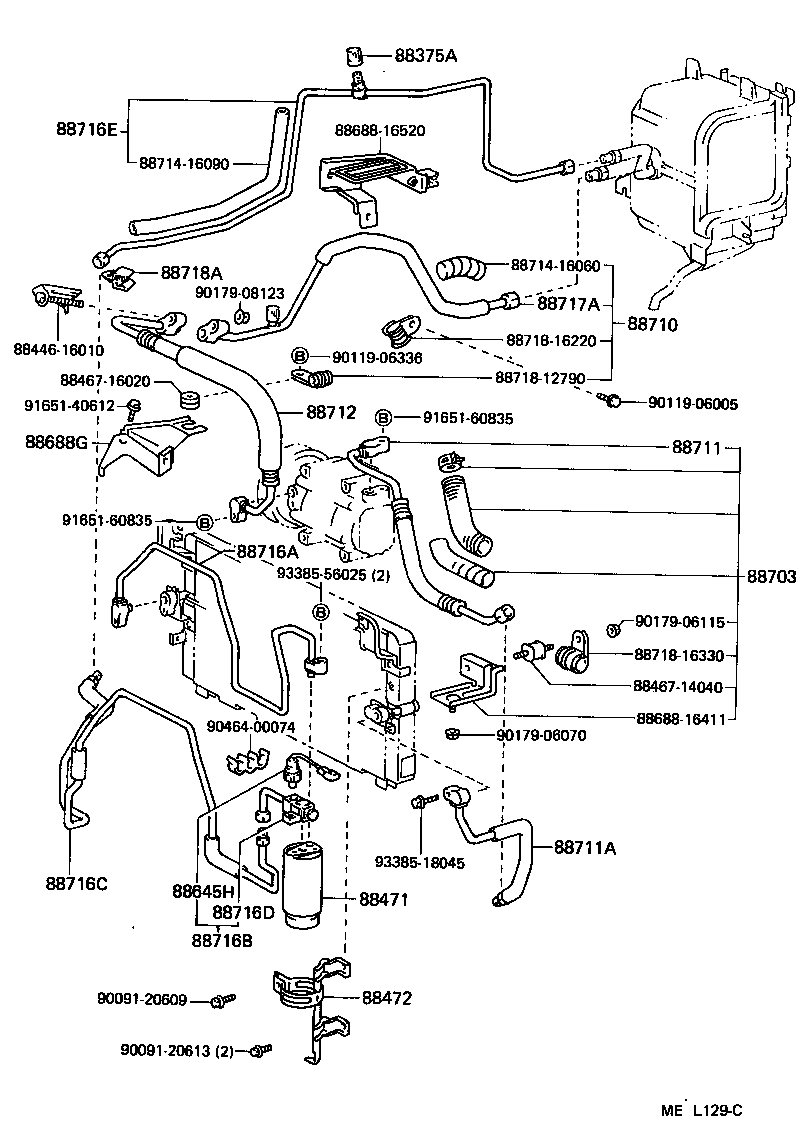

ILLUST NO. 2 OF 2(8808- )USA..CBR

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010	EL31..TER..USA	08/1988 - 09/1990	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-12020	EL31..TER..USA	08/1988 - 09/1990	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16090	EL31..TER..USA	08/1988 - 09/1990	1
88645H - SWITCH, PRESSURE NO.1
88645-16050	EL31..TER..USA	08/1988 - 09/1990	1
88688G - BRACKET, COOLER REFRIGERANT PIPE
88688-16140	EL31..TER..USA..CBR	08/1988 - 09/1990	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-16011	EL31..TER..USA	08/1988 - 09/1990	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-16060	EL31..TER..USA..CBR	08/1988 - 09/1990	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16100	EL31..TER..USA	08/1988 - 09/1990	1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88715-16020	EL31..TER..USA	08/1988 - 09/1990	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16090	EL31..TER..USA..CBR	08/1988 - 09/1990	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16400	EL31..TER..USA	08/1988 - 09/1990	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88706-16040	EL31..TER..USA..CBR	08/1988 - 09/1990	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-16390	EL31..TER..USA..CBR	08/1988 - 09/1990	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-16490	EL31..TER..USA..CBR	08/1988 - 09/1990	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16380	EL31..TER..USA..CBR	08/1988 - 09/1990	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16070	EL31..TER..USA..CBR	08/1988 - 09/1990	1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-16360	EL31..(DX,STD)..USA..CBR	08/1988 - 09/1990	1
88718-16360	EL31..(DX,STD)..USA..CBR	08/1988 - 09/1990	5
Common parts
88446-16010
88467-14040
88467-16020
88688-16411
88688-16520
88714-16060
88714-16090
88718-12790
88718-16220
88718-16330
90091-20609
90091-20613
90119-06005
90119-06336
90179-06070
90179-06115
90179-08123
90464-00074
91651-40612
91651-60835
93385-18045
93385-56025
