EL31L-ZGMRSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

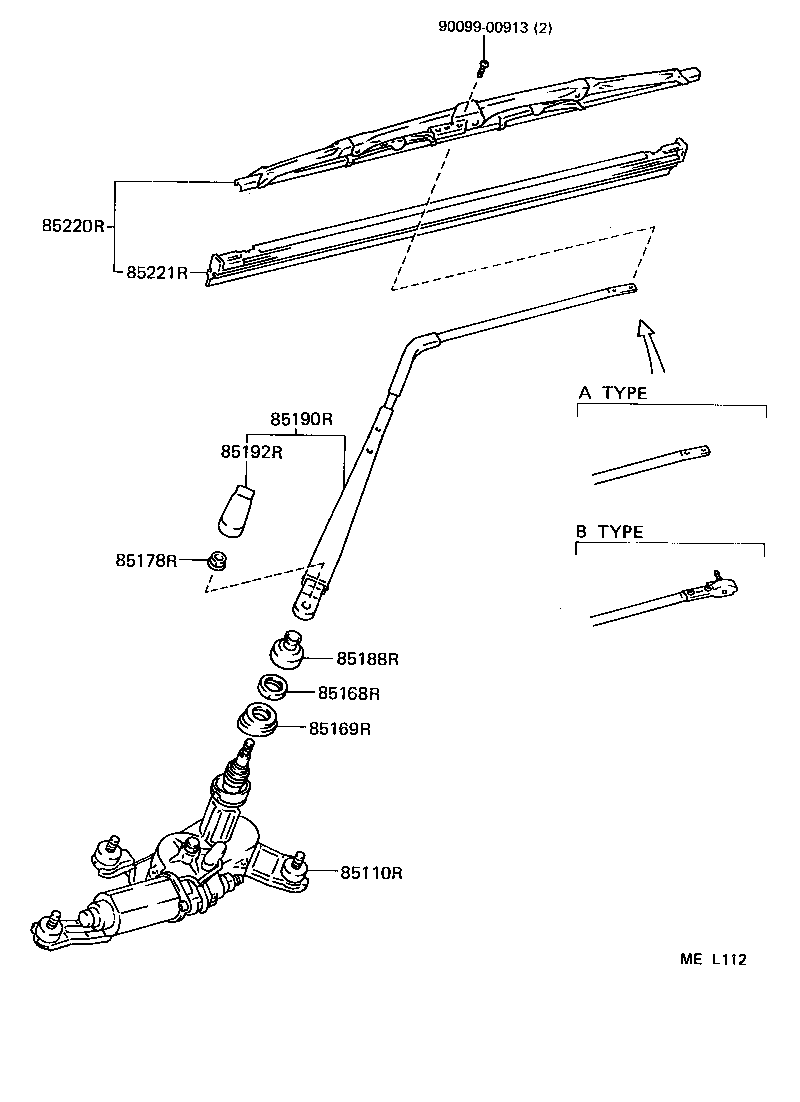

Click highlighted areas on diagram

diagram 85110R 85168R 85169R 85178R 85188R 85190R 85192R 85220R 85221R 9009900913
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85110-16280

EL31..3DS

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05222

EL31..3DS

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-16270

EL31..3DS

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

EL31..3DS,5DS

 1
85188R - CAP, REAR WIPER PIVOT, NO.1
85178-16270

EL31..3DS

 1
85190R - ARM ASSY, REAR WIPER
85190-16232

EL31..3DS

B TYPE

 1
85190-16190

EL31..3DS

A TYPE

 1
85190-16231

EL31..3DS

B TYPE

 1
85190-16230

EL31..3DS

B TYPE

 1
85192R - COVER, REAR WIPER ARM
85192-32010

EL31..3DS,5DS

 1
85220R - BLADE ASSY, REAR WIPER
85220-16440

EL31..3DS

ARM=B TYPE

 1
85220-14340

EL31..3DS

ARM=A TYPE

 1
85221R - BLADE, REAR WIPER
85221-16080

EL31..3DS

 1
Common parts
90099-00913
