EL31L-ZGMRSA (1988)
Toyota Tercel
Production
Aug 1988
-
Sep 1990
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3DS,5DS

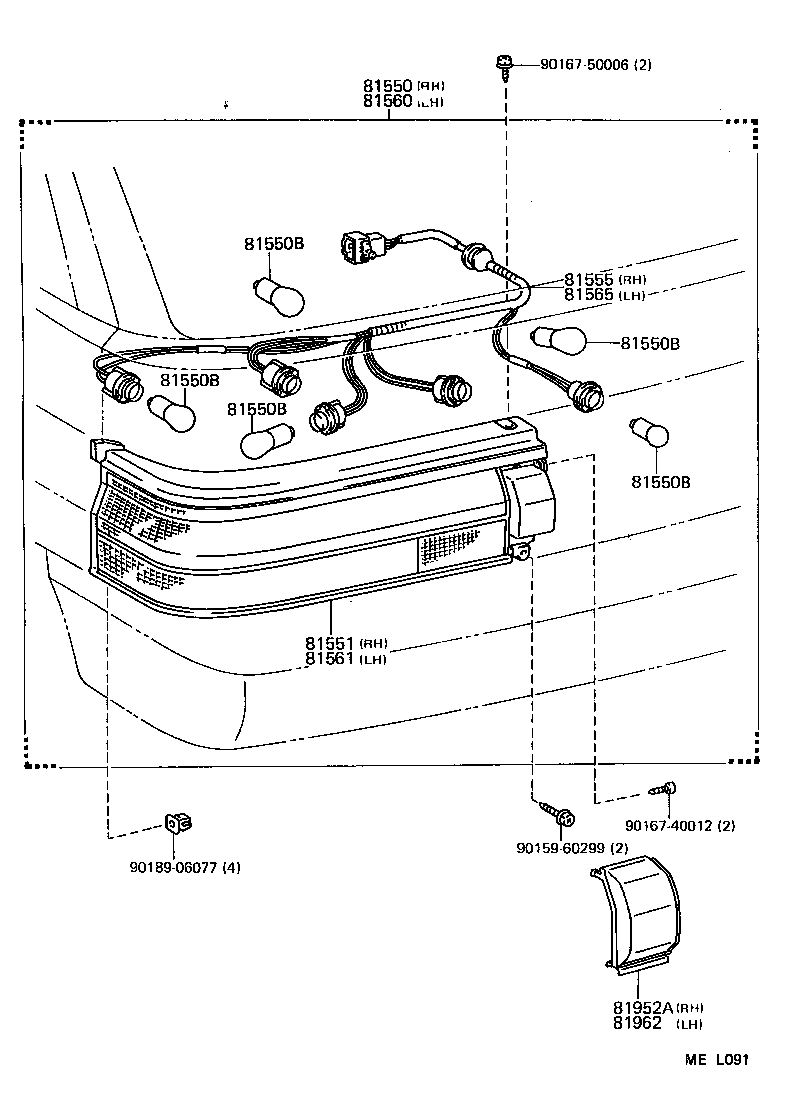

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-16350 |
EL31..3DS |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
EL31 12V 27W |
4 | ||
| 99132-21270 |
EL31 12V 27/8W |
4 | ||
| 90981-12012 |
EL31..3DS,5DS 12V 7.5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
EL31 12V 27W |
4 | ||
| 99132-21270 |
EL31 12V 27/8W |
4 | ||
| 90981-12012 |
EL31..3DS,5DS 12V 7.5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
EL31 12V 27W |
4 | ||
| 99132-21270 |
EL31 12V 27/8W |
4 | ||
| 90981-12012 |
EL31..3DS,5DS 12V 7.5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
EL31 12V 27W |
4 | ||
| 99132-21270 |
EL31 12V 27/8W |
4 | ||
| 90981-12012 |
EL31..3DS,5DS 12V 7.5W |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
EL31 12V 27W |
4 | ||
| 99132-21270 |
EL31 12V 27/8W |
4 | ||
| 90981-12012 |
EL31..3DS,5DS 12V 7.5W |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-16350 |
EL31..3DS |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-16370 |
EL31..3DS,5DS |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-16370 |
EL31..3DS |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-16370 |
EL31..3DS |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-16370 |
EL31..3DS,5DS |
1 | ||
| 81952A - COVER, REAR LAMP, RH | ||||
| 81952-16020 |
EL31..3DS |
1 | ||
| 81962 - COVER, REAR LAMP, LH | ||||
| 81962-16020 |
EL31..3DS |
1 | ||
| Common parts | ||||
| 90159-60299 | ||||
| 90167-40012 | ||||
| 90167-50006 | ||||
| 90189-06077 | ||||
