EL31L-ZGMRSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )DX,STD

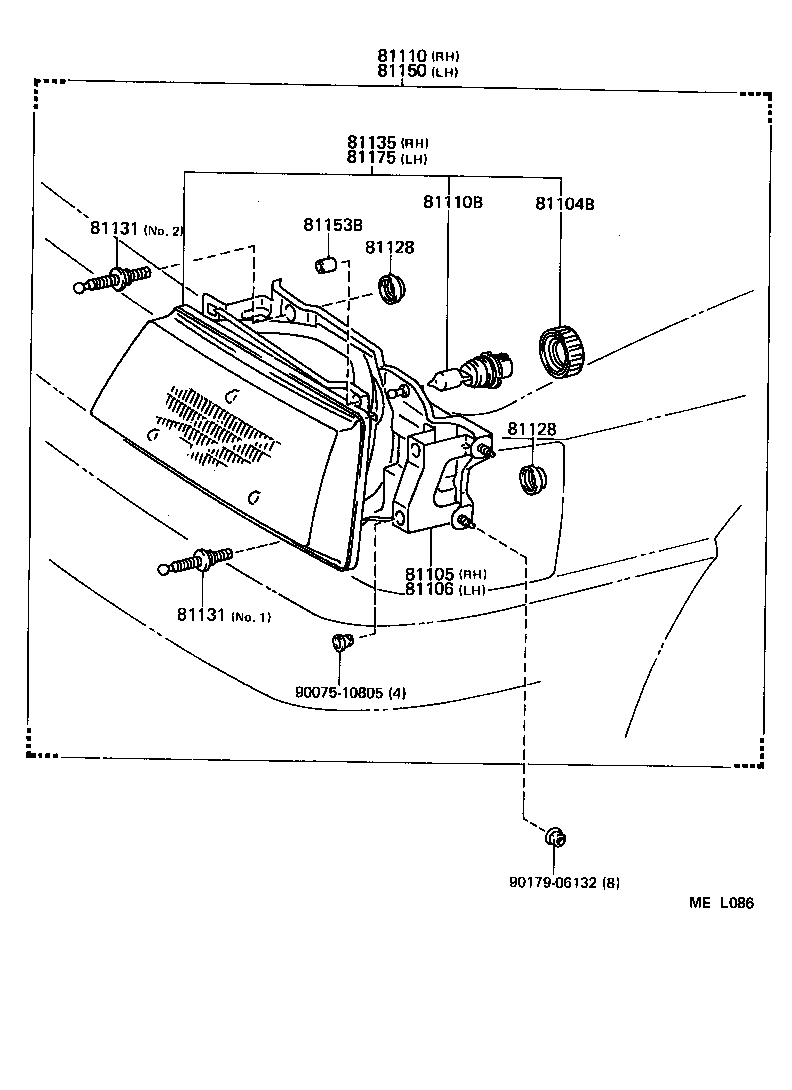

Click highlighted areas on diagram

diagram 81104B 81105 81106 81110 81110B 81128 81128 81131 81131 81135 81150 81153B 81175 9007510805 9017906132
Part # Description Qty Price
81104B - LOCKING CAP, HEADLAMP
81104-22520

EL31..DX,STD

 2
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-16370

EL31..DX,STD

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-16370

EL31..DX,STD

 1
81110 - HEADLAMP ASSY, RH
81110-16370

EL31..DX,STD

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13032

EL31..DX,STD

12V 65/45W,*HAL,*WH

 2
81128 - NUT, HEADLAMP
81128-22520

EL31..DX,STD

 4
81128 - NUT, HEADLAMP
81128-22520

EL31..DX,STD

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-16370

EL31..DX,STD

NO.1

 2
81132-16370

EL31..DX,STD

NO.2

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-16370

EL31..DX,STD

NO.1

 2
81132-16370

EL31..DX,STD

NO.2

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-16370

EL31..DX,STD

 1
81150 - HEADLAMP ASSY, LH
81150-16370

EL31..DX,STD

 1
81153B - BEARING, HEADLAMP
90075-10804

EL31..DX,STD

 6
81175 - UNIT ASSY, HEADLAMP, LH
81170-16370

EL31..DX,STD

 1
Common parts
90075-10805
90179-06132
