EL31L-ZGMRSA (1988)
Toyota Tercel
Production
Aug 1988
-
Sep 1990
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

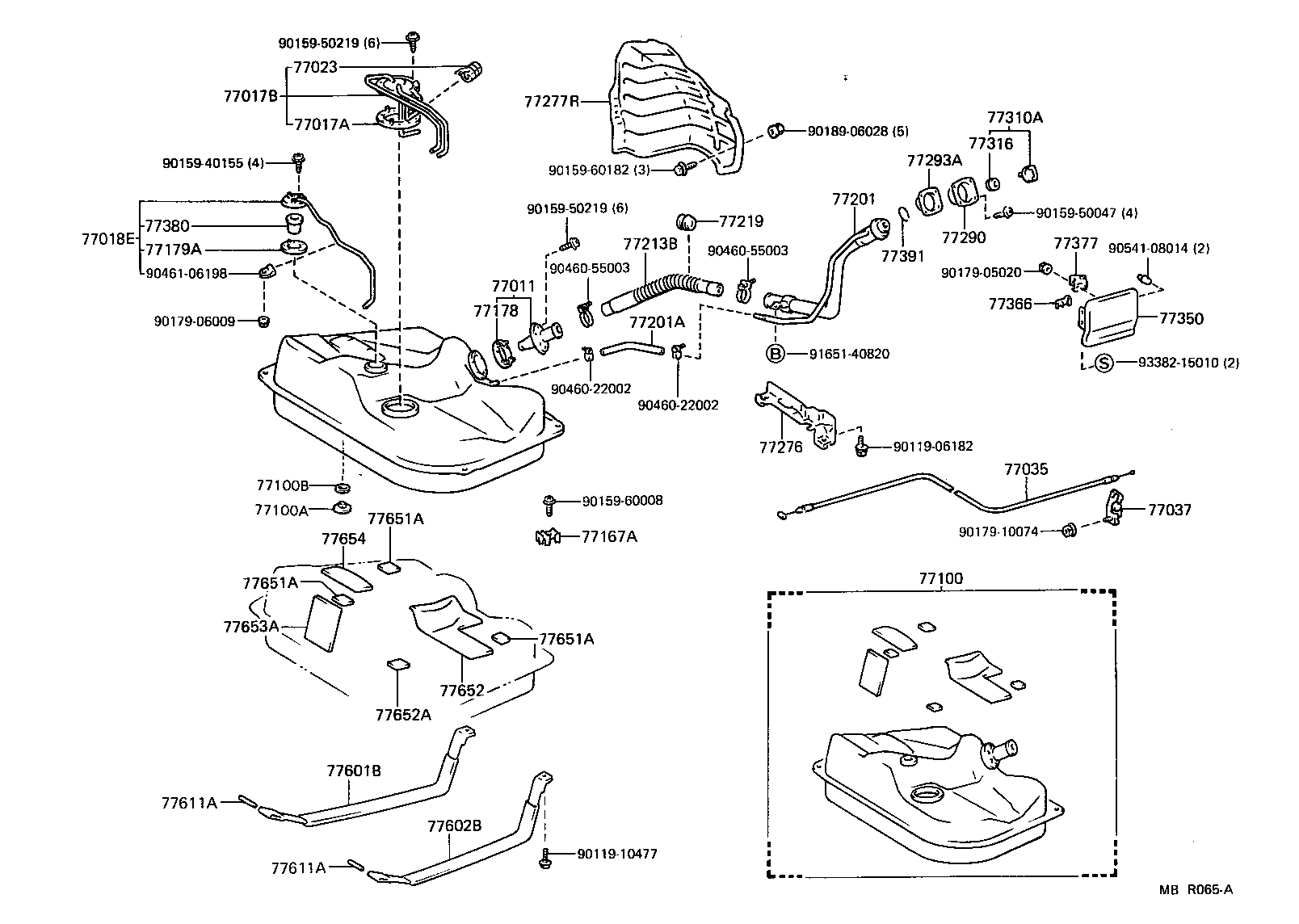

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-16050 |
EL31 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77178-10010 |
EL31..CBR |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-16090 |
EL31..CBR |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-16041 |
EL31 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
EL31..CBR |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-16070 |
EL31..TER..3DS..USA..CBR W(SECURITY LUTCH) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12040 |
EL31..TER..3DS..USA..CBR W(SECURITY LUTCH) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19455 |
EL31..CBR |
1 | ||
| 77167A - SUPPORT, FUEL TANK VENT TUBE, NO.2 | ||||
| 77167-16010 |
EL31..CBR |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
EL31 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
EL31 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-16140 |
EL31 |
1 | ||
| 77201-16090 |
EL31 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22009 |
EL31 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-16040 |
EL31 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-16010 |
EL31 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-16020 |
EL31 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-16080 |
EL31 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-16060 |
EL31 |
1 | ||
| 77290-16050 |
EL31 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-16040 |
EL31 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12140 |
EL31 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
EL31 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-16080 |
EL31..3DS W(BACK DOOR & TRUNK OPENER) |
1 | ||
| 77350-16060 |
EL31..2DS,3DS |
1 | ||
| 77350-16080 |
EL31..3DS W(BACK DOOR & TRUNK OPENER) OR W(SECURITY LUTCH) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-24010 |
EL31 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20030 |
EL31..TER..3DS..USA..CBR W(SECURITY LUTCH) |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
EL31 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-16010 |
EL31 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-16070 |
EL31 |
1 | ||
| 77601-16070 |
EL31 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-16060 |
EL31 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
EL31 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
EL31 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-16060 |
EL31 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-16060 |
EL31 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-16060 |
EL31 |
3 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-16070 |
EL31 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-16070 |
EL31 |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-16060 |
EL31 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-16080 |
EL31 |
1 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90119-10477 | ||||
| 90159-40155 | ||||
| 90159-50047 | ||||
| 90159-50219 | ||||
| 90159-60008 | ||||
| 90159-60182 | ||||
| 90179-05020 | ||||
| 90179-06009 | ||||
| 90179-10074 | ||||
| 90189-06028 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90461-06198 | ||||
| 90541-08014 | ||||
| 91651-40820 | ||||
| 93382-15010 | ||||

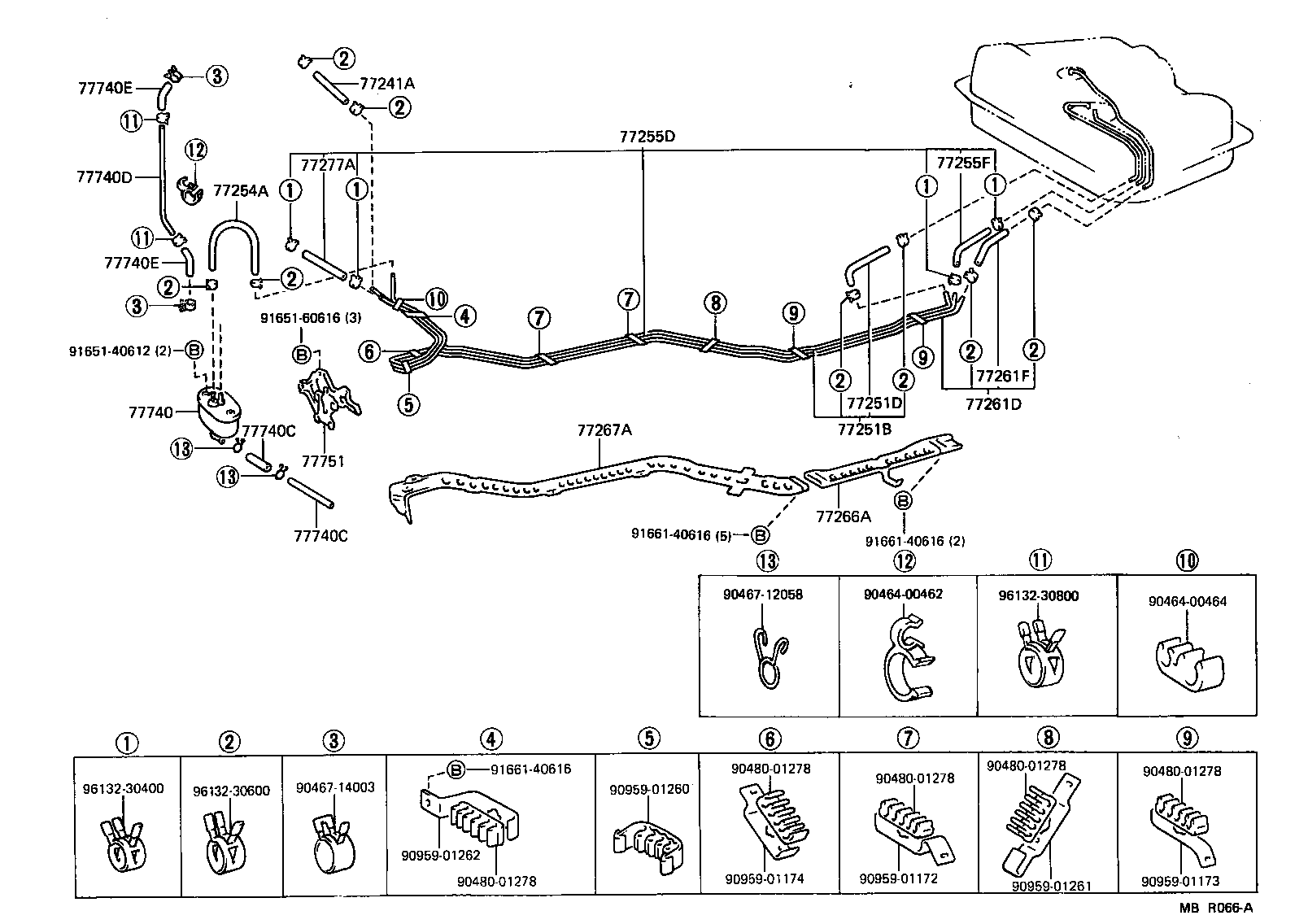

ILLUST NO. 2 OF 2(8808- )CBR
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-06020 |
EL31..CBR *H,L=200 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77205-16031 |
EL31..CBR |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 90445-12210 |
EL31..CBR |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95333-06030 |
EL31..CBR *H,L=300 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77207-16030 |
EL31..CBR |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04020 |
EL31..CBR L=200 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77019-16020 |
EL31..CBR |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
EL31 *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-10020 |
EL31 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-16010 |
EL31 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-11080 |
EL31..CBR |
1 | ||
| 95333-04060 |
EL31..CBR L=600 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-16090 |
EL31..CBR DENSO |
1 | ||
| 77704-16100 |
EL31..CBR AISAN |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12166 |
EL31 L=80 |
1 | ||
| 90446-08013 |
EL31 L=220 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 90445-12166 |
EL31 L=80 |
1 | ||
| 90446-08013 |
EL31 L=220 |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 77791-16050 |
EL31..CBR L=280 |
1 | ||
| 77740E - HOSE, FUEL, NO.5(FOR CHARCOAL CANISTER) | ||||
| 90910-05195 |
EL31..CBR |
1 | ||
| 77740E - HOSE, FUEL, NO.5(FOR CHARCOAL CANISTER) | ||||
| 90910-05195 |
EL31..CBR |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-16090 |
EL31..CBR |
1 | ||
| Common parts | ||||
| 90464-00462 | ||||
| 90464-00464 | ||||
| 90467-12058 | ||||
| 90467-14003 | ||||
| 90480-01278 | ||||
| 90959-01172 | ||||
| 90959-01173 | ||||
| 90959-01174 | ||||
| 90959-01260 | ||||
| 90959-01261 | ||||
| 90959-01262 | ||||
| 91651-40612 | ||||
| 91651-60616 | ||||
| 91661-40616 | ||||
| 96132-30400 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
