EL31L-ZGMRSA (1988)
Toyota Tercel
ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-12190 |
EL31 |
1 | ||
| 71011-16050 |
EL31..USA |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-12190 |
EL31 |
1 | ||
| 71012-16020 |
EL31..USA |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1662203 |
EL31..STD GRAY,TRIM2# |
1 | ||
| 71071-1662204 |
EL31..STD BLUE,TRIM8# |
1 | ||
| 71071-1662206 |
EL31..STD BROWN,TRIM4# |
1 | ||
| 71071-1663103 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),GRAY,TRIM2# |
1 | ||
| 71071-1662203 |
EL31..(3DS,5DS)..STD GRAY,TRIM2# |
1 | ||
| 71071-1663104 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),BLUE,TRIM8# |
1 | ||
| 71071-1663104 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),BLUE,TRIM8# |
1 | ||
| 71071-1663106 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),BROWN,TRIM4# |
1 | ||
| 71071-1663103 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),GRAY,TRIM2# |
1 | ||
| 71071-1663106 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),BROWN,TRIM4# |
1 | ||
| 71071-1662206 |
EL31..(3DS,5DS)..STD BROWN,TRIM4# |
1 | ||
| 71071-1662204 |
EL31..(3DS,5DS)..STD BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-1663104 |
EL31..3DS..STD W(FULL FABLIC SEAT COVER),BLUE,TRIM8# |
1 | ||
| 71072-1626203 |
EL31..STD GRAY,TRIM2# |
1 | ||
| 71071-1663103 |
EL31..3DS..STD W(FULL FABLIC SEAT COVER),GRAY,TRIM2# |
1 | ||
| 71072-1626204 |
EL31..STD BLUE,TRIM8# |
1 | ||
| 71071-1663106 |
EL31..3DS..STD W(FULL FABLIC SEAT COVER),BROWN,TRIM4# |
1 | ||
| 71072-1626204 |
EL31..(3DS,5DS)..STD BLUE,TRIM8# |
1 | ||
| 71072-1626206 |
EL31..STD BROWN,TRIM4# |
1 | ||
| 71071-1663104 |
EL31..3DS..STD W(FULL FABLIC SEAT COVER),BLUE,TRIM8# |
1 | ||
| 71071-1663106 |
EL31..3DS..STD W(FULL FABLIC SEAT COVER),BROWN,TRIM4# |
1 | ||
| 71072-1626203 |
EL31..(3DS,5DS)..STD GRAY,TRIM2# |
1 | ||
| 71071-1663103 |
EL31..3DS..STD W(FULL FABLIC SEAT COVER),GRAY,TRIM2# |
1 | ||
| 71072-1626206 |
EL31..(3DS,5DS)..STD BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1671103 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),GRAY,TRIM2# |
1 | ||
| 71073-1670206 |
EL31..STD BROWN,TRIM4# |
1 | ||
| 71073-1670204 |
EL31..STD BLUE,TRIM8# |
1 | ||
| 71073-1670203 |
EL31..STD GRAY,TRIM2# |
1 | ||
| 71073-1671106 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),BROWN,TRIM4# |
1 | ||
| 71073-1670204 |
EL31..(3DS,5DS)..STD BLUE,TRIM8# |
1 | ||
| 71073-1670206 |
EL31..(3DS,5DS)..STD BROWN,TRIM4# |
1 | ||
| 71073-1671104 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),BLUE,TRIM8# |
1 | ||
| 71073-1671103 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),GRAY,TRIM2# |
1 | ||
| 71073-1671106 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),BROWN,TRIM4# |
1 | ||
| 71073-1671104 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),BLUE,TRIM8# |
1 | ||
| 71073-1670203 |
EL31..(3DS,5DS)..STD GRAY,TRIM2# |
1 | ||
| 71073-1G03003 |
EL31..3DS..STD..USA W(FULL FABRIC SEAT),GRAY,TRIM2# |
1 | ||
| 71073-1G02006 |
EL31..3DS..STD..USA BROWN,TRIM4# |
1 | ||
| 71073-1G02003 |
EL31..3DS..STD..USA GRAY,TRIM2# |
1 | ||
| 71073-1G03006 |
EL31..3DS..STD..USA W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71073-1G02004 |
EL31..3DS..STD..USA BLUE,TRIM8# |
1 | ||
| 71073-1G03004 |
EL31..3DS..STD..USA W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1657204 |
EL31..STD BLUE,TRIM8# |
1 | ||
| 71074-1658104 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),BLUE,TRIM8# |
1 | ||
| 71074-1657203 |
EL31..STD GRAY,TRIM2# |
1 | ||
| 71074-1657206 |
EL31..STD BROWN,TRIM4# |
1 | ||
| 71074-1657203 |
EL31..(3DS,5DS)..STD GRAY,TRIM2# |
1 | ||
| 71074-1658106 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),BROWN,TRIM4# |
1 | ||
| 71074-1658103 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),GRAY,TRIM2# |
1 | ||
| 71074-1657206 |
EL31..(3DS,5DS)..STD BROWN,TRIM4# |
1 | ||
| 71074-1657204 |
EL31..(3DS,5DS)..STD BLUE,TRIM8# |
1 | ||
| 71074-1658103 |
EL31..3DS..STD W(FULL FABRIC SEAT COVER),GRAY,TRIM2# |
1 | ||
| 71074-1670004 |
EL31..3DS..STD..USA BLUE,TRIM8# |
1 | ||
| 71074-1670003 |
EL31..3DS..STD..USA GRAY,TRIM2# |
1 | ||
| 71074-1670006 |
EL31..3DS..STD..USA BROWN,TRIM4# |
1 | ||
| 71074-1671006 |
EL31..3DS..STD..USA W(FULL FABRIC SEAT),BROWN,TRIM4# |
1 | ||
| 71074-1671004 |
EL31..3DS..STD..USA W(FULL FABRIC SEAT),BLUE,TRIM8# |
1 | ||
| 71074-1671003 |
EL31..3DS..STD..USA W(FULL FABRIC SEAT),GRAY,TRIM2# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-16010 |
EL31..DX,STD |
1 | ||
| 71505-16050 |
EL31..(DX,STD)..USA |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-16010 |
EL31..DX,STD |
1 | ||
| 71505-16050 |
EL31..(DX,STD)..USA |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-16060 |
EL31 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-16060 |
EL31 |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71563-16040 |
EL31 |
4 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71563-16040 |
EL31 |
4 | ||

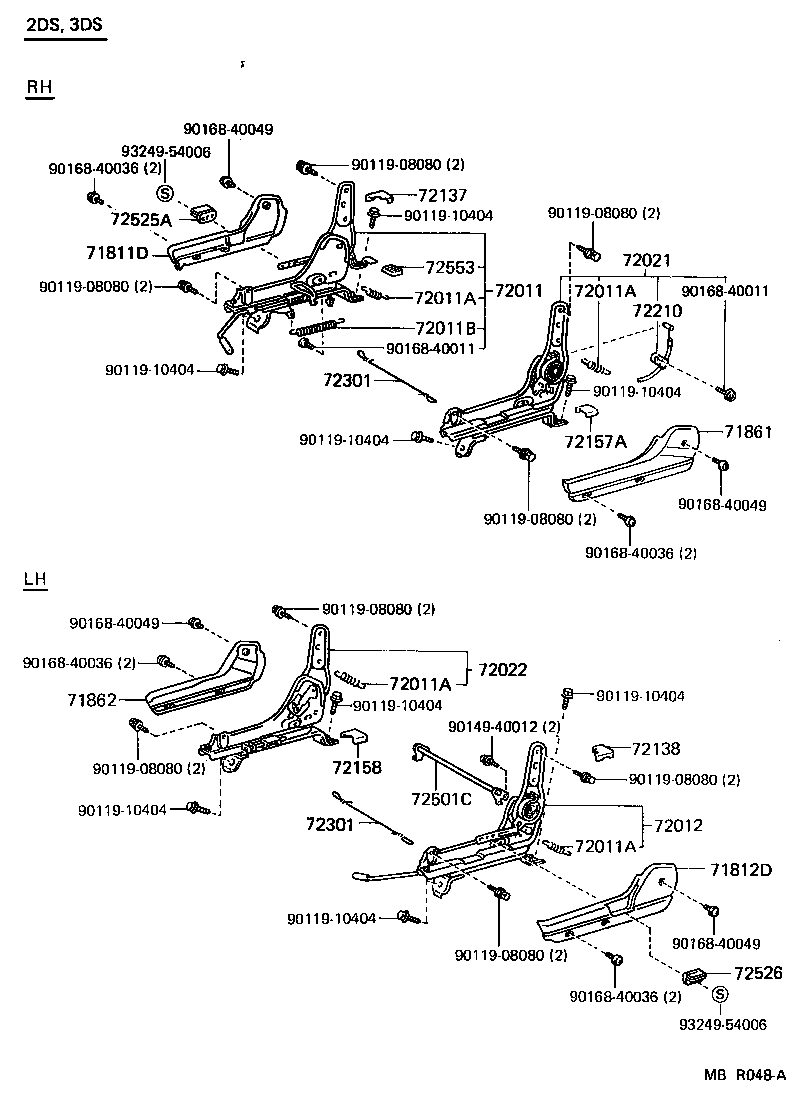

ILLUST NO. 2 OF 2(8808- )2DS,3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1607004 |
EL31..(2DS,3DS)..(DX,STD) BLUE,TRIM8# |
1 | ||
| 71811-1607001 |
EL31..2DS,3DS BLACK,TRIM2# |
1 | ||
| 71811-1613006 |
EL31..(DX,STD)..USA LIGHT BROWN,TRIM4# |
1 | ||
| 71811-1613004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 71811-1607006 |
EL31..(2DS,3DS)..(DX,STD) LIGHT BROWN,TRIM4# |
1 | ||
| 71811-1613001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1604006 |
EL31..DX,STD LIGHT BROWN,TRIM4# |
1 | ||
| 71812-1604001 |
EL31 BLACK,TRIM2# |
1 | ||
| 71812-1604004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 71812-1609006 |
EL31..(DX,STD)..USA LIGHT BROWN,TRIM4# |
1 | ||
| 71812-1609004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 71812-1609001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-1604001 |
EL31 BLACK,TRIM2# |
1 | ||
| 71861-1604004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 71861-1607001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 71861-1604006 |
EL31..DX,STD LIGHT BROWN,TRIM4# |
1 | ||
| 71861-1607004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 71861-1607006 |
EL31..(DX,STD)..USA LIGHT BROWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1603001 |
EL31 BLACK,TRIM2# |
1 | ||
| 71862-1608001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 71862-1603006 |
EL31..DX,STD LIGHT BROWN,TRIM4# |
1 | ||
| 71862-1603004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 71862-1608006 |
EL31..(DX,STD)..USA LIGHT BROWN,TRIM4# |
1 | ||
| 71862-1608004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-16030 |
EL31..(2DS,3DS)..(DX,STD) |
1 | ||
| 72011-16150 |
EL31..(DX,STD)..USA |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
EL31..(DX,STD)..USA CW=23.5,WD=1.4 |
2 | ||
| 90506-14039 |
EL31 |
2 | ||
| 90506-18036 |
EL31..(DX,STD)..USA CW=49,WD=1.8 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
EL31..(DX,STD)..USA CW=23.5,WD=1.4 |
2 | ||
| 90506-14039 |
EL31 |
2 | ||
| 90506-18036 |
EL31..(DX,STD)..USA CW=49,WD=1.8 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
EL31..(DX,STD)..USA CW=23.5,WD=1.4 |
2 | ||
| 90506-14039 |
EL31 |
2 | ||
| 90506-18036 |
EL31..(DX,STD)..USA CW=49,WD=1.8 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-14039 |
EL31..(DX,STD)..USA CW=23.5,WD=1.4 |
2 | ||
| 90506-14039 |
EL31 |
2 | ||
| 90506-18036 |
EL31..(DX,STD)..USA CW=49,WD=1.8 |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18036 |
EL31..(2DS,3DS)..(DX,STD) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-16130 |
EL31..USA |
1 | ||
| 72012-16110 |
EL31 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16130 |
EL31..(DX,STD)..USA |
1 | ||
| 72021-16100 |
EL31..(2DS,3DS)..(DX,STD) |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16110 |
EL31 |
1 | ||
| 72022-16120 |
EL31..USA |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16020 |
EL31 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16020 |
EL31 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16030 |
EL31 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16030 |
EL31 |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-16140 |
EL31..(2DS,3DS)..(DX,STD) |
1 | ||
| 72210-16170 |
EL31..(DX,STD)..USA |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16080 |
EL31..USA |
2 | ||
| 72301-16060 |
EL31 |
2 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-16080 |
EL31..USA |
2 | ||
| 72301-16060 |
EL31 |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-16010 |
EL31..USA |
2 | ||
| 72501-12030 |
EL31 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1209036 |
EL31..DX,STD LIGHT BROWN,TRIM4# |
1 | ||
| 72525-12090C0 |
EL31 BLACK,TRIM2# |
1 | ||
| 72525-1209024 |
EL31..DX,STD DEEP BLUE,TRIM8# |
1 | ||
| 72525-1209011 |
EL31 BLACK,TRIM2# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1203036 |
EL31..DX,STD LIGHT BROWN,TRIM4# |
1 | ||
| 72526-1203011 |
EL31 BLACK,TRIM2# |
1 | ||
| 72526-1203024 |
EL31..DX,STD DEEP BLUE,TRIM8# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12040 |
EL31..2DS,3DS |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40012 | ||||
| 90168-40011 | ||||
| 90168-40036 | ||||
| 90168-40049 | ||||
| 93249-54006 | ||||
