EL31L-ZGMRSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3DS,5DS

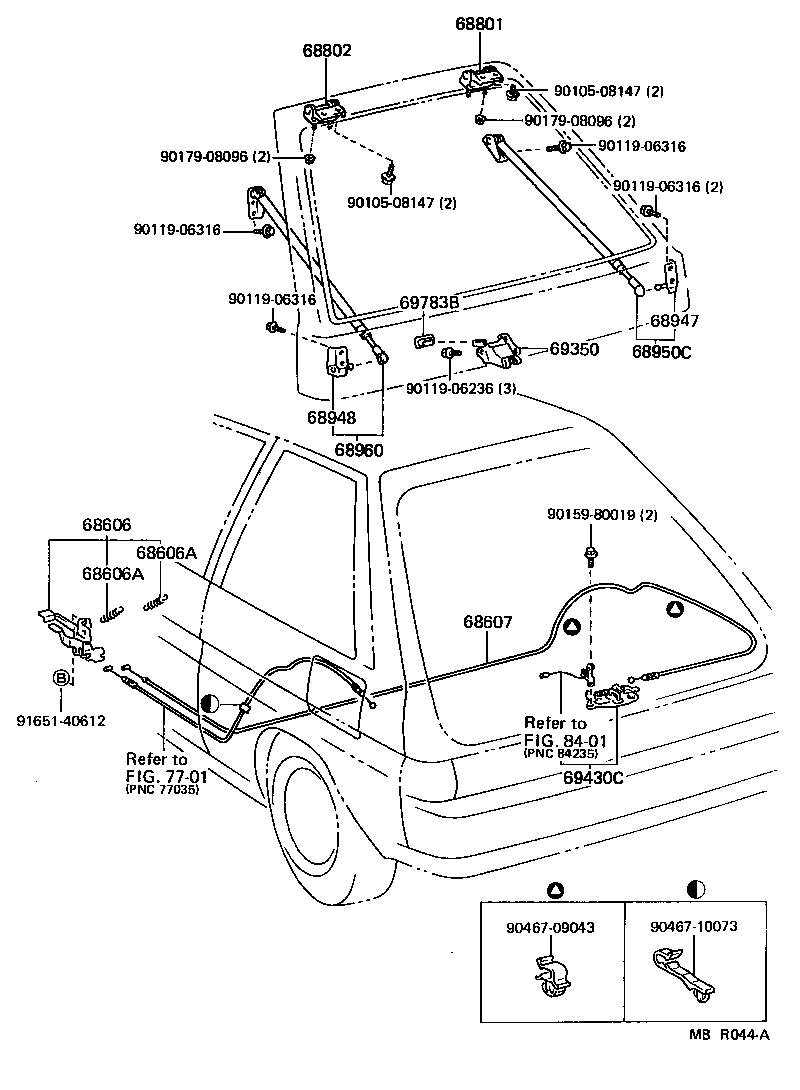

Click highlighted areas on diagram

diagram 68606 68606A 68606A 68607 68801 68802 68947 68948 68950C 68960 69350 69430C 69783B 7701 8401 9010508147 9010508147 9011906236 9011906316 9011906316 9011906316 9011906316 9015980019 9017908096 9017908096 9046709043 9046710073 9165140612
Part # Description Qty Price
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-12050

EL31..TER..3DS..USA..CBR

W(SECURITY SEAT)

 1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034

EL31..TER..3DS..USA..CBR

 2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034

EL31..TER..3DS..USA..CBR

 2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-16170

EL31..TER..3DS..USA..CBR

W(SECURITY SEAT)

 1
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-16031

EL31..3DS,5DS

 1
68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH
68801-16031

EL31..3DS,5DS

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-16010

EL31..3DS,5DS

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-16010

EL31..3DS,5DS

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-19676

EL31..3DS

 1
68950-19686

EL31..3DS

W(RR WIPER)

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-19366

EL31..3DS

 1
68960-19376

EL31..3DS

W(RR WIPER)

 1
69350 - LOCK ASSY, BACK DOOR
69350-16100

EL31..3DS,5DS

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-16160

EL31..TER..3DS..USA..CBR

W(SECURITY LUTCH)

 1
69430-16150

EL31..3DS,5DS

 1
69430-16140

EL31..3DS,5DS

W(BACK DOOR & TRUNK OPENER)

 1
69783B - BEZEL, BACK DOOR INSIDE HANDLE
69783-1601001

EL31..TER..3DS..USA..CBR

NEW BLACK,TRIM2#,4#,8#

 1
Common parts
90105-08147
90119-06236
90119-06316
90159-80019
90179-08096
90467-09043
90467-10073
91651-40612
Linked diagrams
7701
8401
