EL31L-ZGMRSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )3DS,5DS

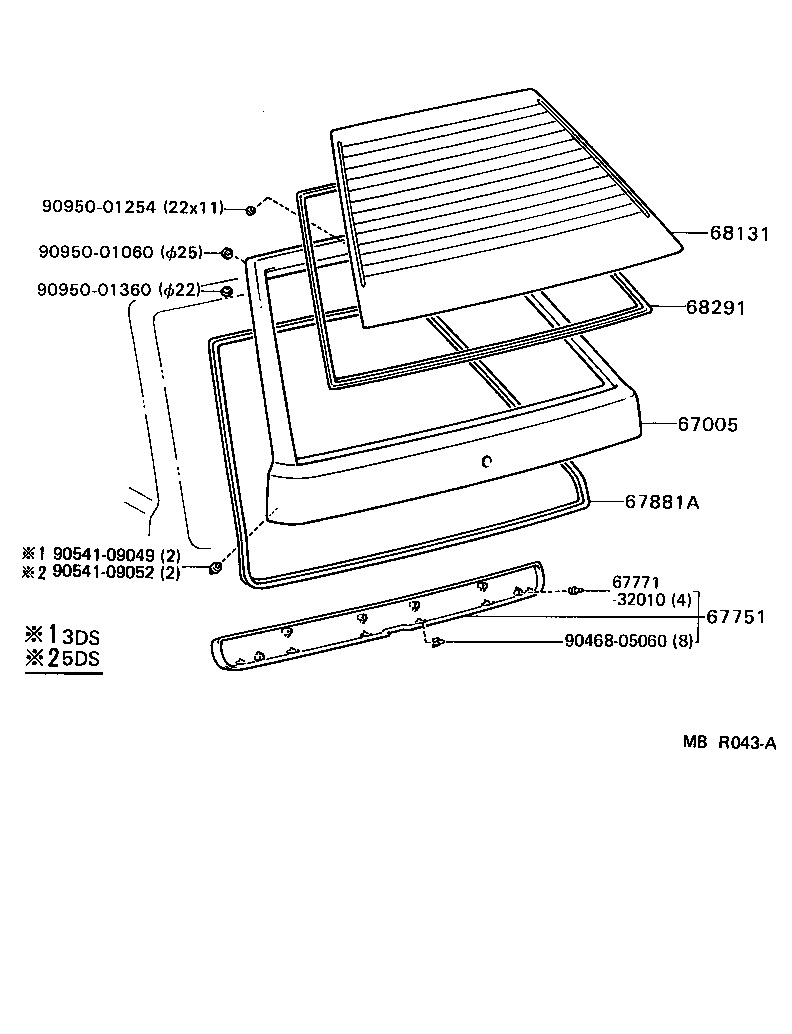

Click highlighted areas on diagram

diagram 67005 67751 6777132010 67881A 68131 68291 9046805060 9054109049 9054109052 9095001060 9095001254 9095001360
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-16250

EL31..3DS

 1
67005-16270

EL31..3DS

W(RR WIPER)

 1
67751 - BOARD, BACK DOOR TRIM
67751-1606006

EL31..3DS..(DX,STD)

BROWN,TRIM4#

 1
67751-1606004

EL31..3DS..(DX,STD)

BLUE,TRIM8#

 1
67751-1606001

EL31..3DS

BLACK,TRIM2#

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-16060

EL31..3DS

 1
68131 - GLASS, BACK DOOR
68131-16240

EL31..3DS..(BASE,STD)..USA

*EHT,T=3.5

 1
68131-16230

EL31..3DS..(BASE,STD)..USA

*EHT=3.5

 1
68131-16210

EL31..3DS..(BASE,STD)..USA

*TEM,T=3.5

 1
68131-16260

EL31..3DS..STD..USA

*EHTT,T=3.5,W(REAR WINDOW DEFFOGGER(100W))

 1
68131-16270

EL31..3DS..STD..USA..CBR

*EHTT,T=3.5,COLD SPEC

 1
68131-16240

EL31..3DS..(BASE,STD)..USA..CBR

*EHT,T=3.5

 1
68131-16250

EL31..3DS..STD..USA

*TT,T=3.5

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-16031

EL31..3DS

 1
68291-16030

EL31..3DS

 1
Common parts
67771-32010
90468-05060
90541-09049
90541-09052
90950-01060
90950-01254
90950-01360
