EL31L-ZGMRSA (1988)
Toyota Tercel
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-1605006 |
EL31..(2DS,3DS)..(DX,STD) BROWN,TRIM4# |
1 | ||
| 69205-1605004 |
EL31..(2DS,3DS)..(DX,STD) BLUE,TRIM8# |
1 | ||
| 69205-1605001 |
EL31..2DS,3DS NEW BLACK,TRIM2# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-1605001 |
EL31..2DS,3DS NEW BLACK,TRIM2# |
1 | ||
| 69206-1605004 |
EL31..(2DS,3DS)..(DX,STD) BLUE,TRIM8# |
1 | ||
| 69206-1605006 |
EL31..(2DS,3DS)..(DX,STD) BROWN,TRIM4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-16060 |
EL31 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-16060 |
EL31 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
EL31 RH |
1 | ||
| 69293-12040 |
EL31 LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-16200 |
EL31..TER..(2DS,3DS)..USA..CBR W(ANTI-THEFT DEVICE) |
1 | ||
| 69310-16210 |
EL31..2DS,3DS |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-16200 |
EL31..TER..(2DS,3DS)..USA..CBR W(ANTI-THEFT DEVICE) |
1 | ||
| 69310-16210 |
EL31..2DS,3DS |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-16200 |
EL31..TER..(2DS,3DS)..USA..CBR W(ANTI-THEFT DEVICE) |
1 | ||
| 69320-16210 |
EL31..2DS,3DS |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-16200 |
EL31..TER..(2DS,3DS)..USA..CBR W(ANTI-THEFT DEVICE) |
1 | ||
| 69320-16210 |
EL31..2DS,3DS |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-12050 |
EL31..2DS,3DS |
2 | ||
| 69511E - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-20010 |
EL31 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-16050 |
EL31..2DS,3DS |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-16050 |
EL31..2DS,3DS |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-16010 |
EL31..2DS,3DS RH |
1 | ||
| 69736-16020 |
EL31..2DS,3DS LH |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-16010 |
EL31..2DS,3DS RH |
1 | ||
| 69736-16020 |
EL31..2DS,3DS LH |
1 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-20010 |
EL31 |
2 | ||
| 69750B - LINK ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-16010 |
EL31..2DS,3DS |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
EL31..2DS,3DS ORANGE |
2 | ||
| 69759-20090 |
EL31..2DS,3DS PINK |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
EL31..2DS,3DS ORANGE |
2 | ||
| 69759-20090 |
EL31..2DS,3DS PINK |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
EL31..2DS,3DS ORANGE |
2 | ||
| 69759-20090 |
EL31..2DS,3DS PINK |
2 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20080 |
EL31..2DS,3DS ORANGE |
2 | ||
| 69759-20090 |
EL31..2DS,3DS PINK |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-22040 |
EL31..2DS,3DS RH |
2 | ||
| 69759-22050 |
EL31..2DS,3DS LH |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-22040 |
EL31..2DS,3DS RH |
2 | ||
| 69759-22050 |
EL31..2DS,3DS LH |
2 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-14030 |
EL31..2DS,3DS |
2 | ||
| 69760A - LINK ASSY, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69760-16010 |
EL31..2DS,3DS |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60349 | ||||
| 90159-80020 | ||||
| 90162-50008 | ||||
| 90189-05053 | ||||
| 90189-06043 | ||||
| 90467-05014 | ||||
| 90541-03021 | ||||
| 91651-40610 | ||||

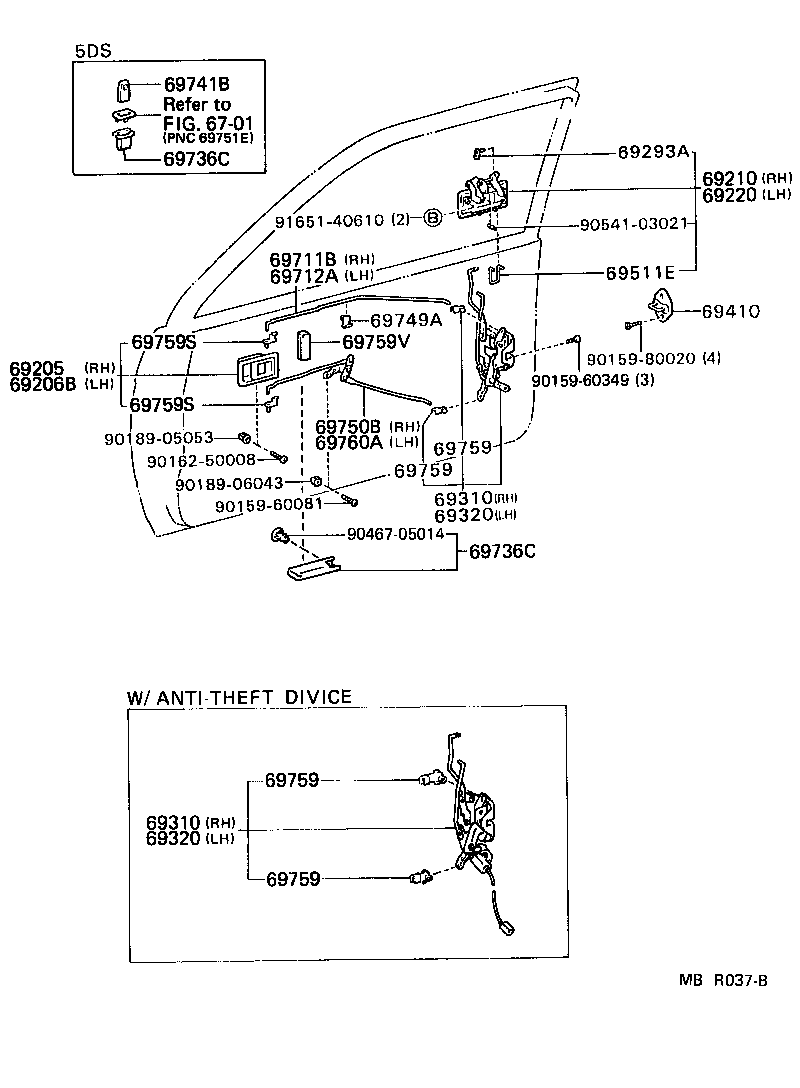

| Linked diagrams | ||||
| 6701 | ||||
