EL31L-ZGMRSA (1988)
Toyota Tercel

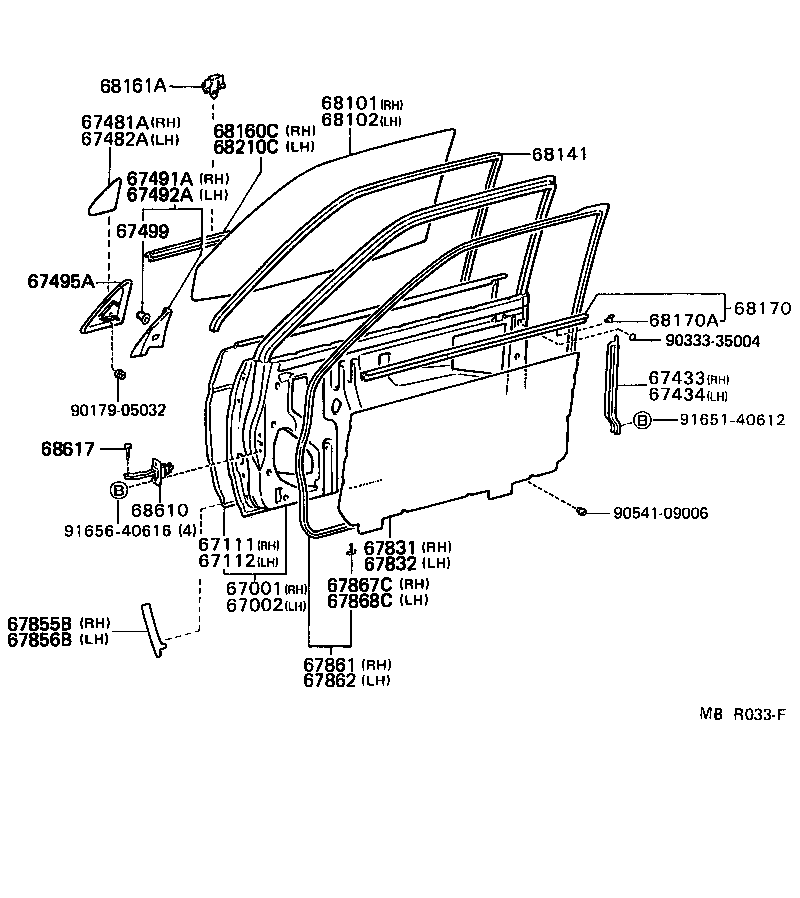

ILLUST NO. 1 OF 2(8808- )2DS,3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-16180 |
EL31..3DS |
1 | ||
| 67001-16330 |
EL31..3DS..USA |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-16140 |
EL31..3DS |
1 | ||
| 67002-16290 |
EL31..3DS..USA |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-16160 |
EL31..2DS,3DS |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-16140 |
EL31..2DS,3DS |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67403-16050 |
EL31..TER..(2DS,3DS)..USA..CBR W(ANTI-THEFT DEVICE) |
1 | ||
| 67403-16060 |
EL31..2DS,3DS |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67404-16050 |
EL31..TER..(2DS,3DS)..USA..CBR W(ANTI-THEFT DEVICE) |
1 | ||
| 67404-16060 |
EL31..2DS,3DS |
1 | ||
| 67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH | ||||
| 67481-16170 |
EL31 |
1 | ||
| 67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH | ||||
| 67481-16170 |
EL31..(3DS,5DS)..STD |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16060 |
EL31..3DS..STD W(OUTER RR VIEW MIRROR) |
1 | ||
| 67491-16050 |
EL31..2DS,3DS |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16060 |
EL31..(2DS,3DS)..(BASE,STD) W(OUTER RR VIEW MIRROR) |
1 | ||
| 67492-16050 |
EL31..2DS,3DS |
1 | ||
| 67492-16060 |
EL31..3DS..STD W(OUTER RR VIEW MIRROR) |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-16040 |
EL31..2DS,3DS |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-12020 |
EL31..2DS,3DS |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-16120 |
EL31..2DS,3DS |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-16120 |
EL31..2DS,3DS |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-16210 |
EL31..3DS |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-16210 |
EL31..3DS |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-30040 |
EL31..2DS,3DS |
21 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-30040 |
EL31..2DS,3DS |
21 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-16130 |
EL31..3DS..(BASE,STD) *TEM,T=3.5 |
1 | ||
| 68111-16140 |
EL31..3DS..STD *TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-16130 |
EL31..3DS..(BASE,STD) *TEM,T=3.5 |
1 | ||
| 68112-16140 |
EL31..3DS..STD *TT,T=3.5 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-16150 |
EL31..3DS |
2 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-16070 |
EL31..2DS,3DS |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-16010 |
EL31..2DS,3DS |
14 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-16080 |
EL31..2DS,3DS |
2 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
EL31..2DS,3DS |
14 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-16060 |
EL31..2DS,3DS |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-10020 |
EL31 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90A00 |
EL31 |
2 | ||
| Common parts | ||||
| 90179-05032 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||

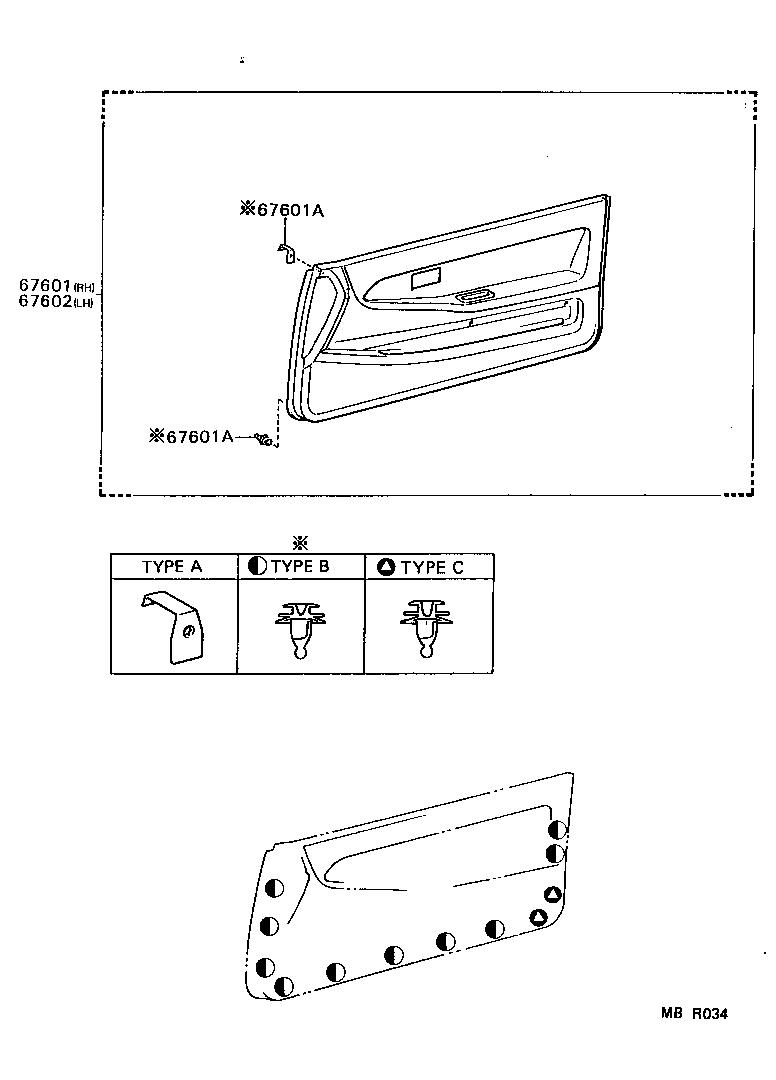

ILLUST NO. 2 OF 2(8808- )2DS,3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1633006 |
EL31..(2DS,3DS)..(DX,STD) BROWN,TRIM4# |
1 | ||
| 67610-1633001 |
EL31..2DS,3DS NEW BLACK,TRIM2# |
1 | ||
| 67610-1633014 |
EL31..(2DS,3DS)..(DX,STD) BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14030 |
EL31..2DS,3DS TYPE C |
4 | ||
| 67771-32010 |
EL31..3DS TYPE B |
12 | ||
| 67771-32010 |
EL31..2DS,3DS TYPE B |
20 | ||
| 67771-16050 |
EL31..2DS,3DS TYPE A |
2 | ||
| 67771-14030 |
EL31..3DS TYPE C |
12 | ||
| 67771-14030 |
EL31..2DS,3DS TYPE C |
12 | ||
| 67771-32010 |
EL31..2DS,3DS TYPE B |
12 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14030 |
EL31..2DS,3DS TYPE C |
4 | ||
| 67771-32010 |
EL31..3DS TYPE B |
12 | ||
| 67771-32010 |
EL31..2DS,3DS TYPE B |
20 | ||
| 67771-16050 |
EL31..2DS,3DS TYPE A |
2 | ||
| 67771-14030 |
EL31..3DS TYPE C |
12 | ||
| 67771-14030 |
EL31..2DS,3DS TYPE C |
12 | ||
| 67771-32010 |
EL31..2DS,3DS TYPE B |
12 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1624014 |
EL31..(2DS,3DS)..(DX,STD) BLUE,TRIM8# |
1 | ||
| 67620-1624001 |
EL31..2DS,3DS NEW BLACK,TRIM2# |
1 | ||
| 67620-1624006 |
EL31..(2DS,3DS)..(DX,STD) BROWN,TRIM4# |
1 | ||
