EL31L-ZGMRSA (1988)
Toyota Tercel
Production
Aug 1988
-
Sep 1990
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

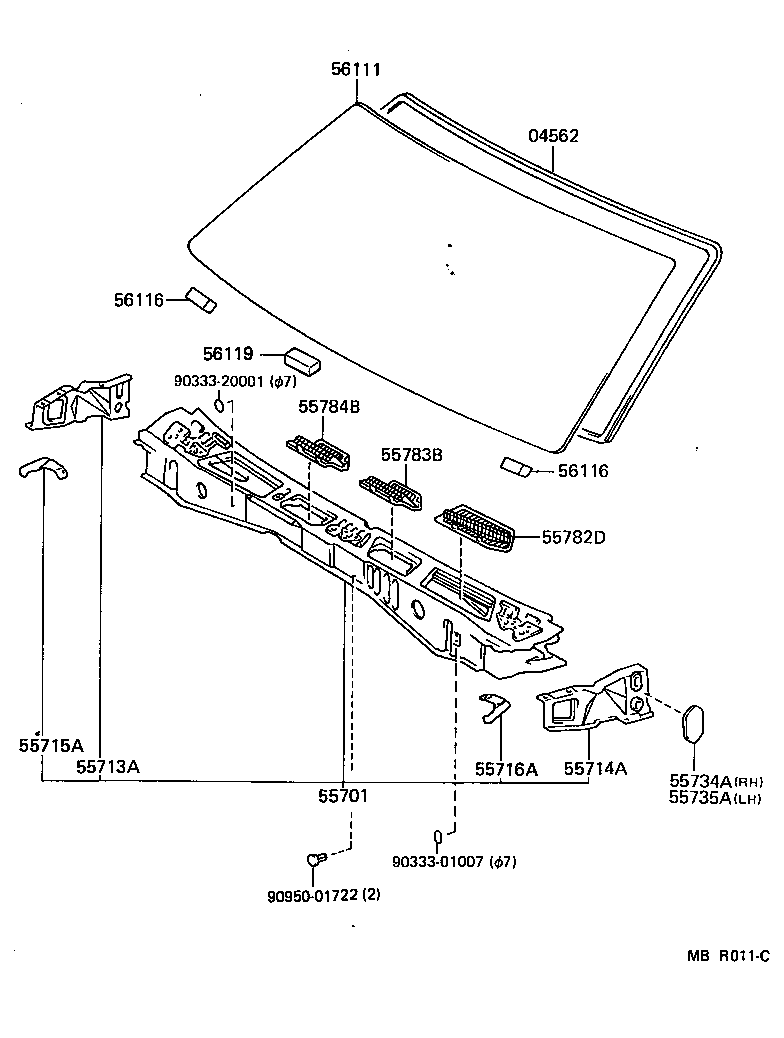

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30040 |
EL31 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-16110 |
EL31..MTM |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-16030 |
EL31 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-16030 |
EL31 |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-16030 |
EL31 |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-16030 |
EL31 |
1 | ||
| 55734A - PLATE, WATER GUARD, RH | ||||
| 55734-16030 |
EL31 |
1 | ||
| 55735A - PLATE, WATER GUARD, LH | ||||
| 55734-16030 |
EL31 |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-16020 |
EL31..USA..CBR COLD SPEC |
1 | ||
| 55782-16010 |
EL31..USA |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-16050 |
EL31..USA..CBR COLD SPEC |
1 | ||
| 55783-16040 |
EL31..USA |
1 | ||
| 55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2 | ||||
| 55784-16020 |
EL31..USA |
1 | ||
| 55784-16030 |
EL31..USA..CBR COLD SPEC |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-16150 |
EL31..(3DS,5DS)..(BASE,STD) *LAM,T=5.3 |
1 | ||
| 56111-16160 |
EL31..(3DS,5DS)..STD *TL,T=5.3 |
1 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-24010 |
EL31 |
2 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-24010 |
EL31 |
2 | ||
| 56119 - SEAL, WINDSHIELD GLASS | ||||
| 67272-32010 |
EL31 |
1 | ||
| Common parts | ||||
| 90333-01007 | ||||
| 90333-20001 | ||||
| 90950-01722 | ||||
