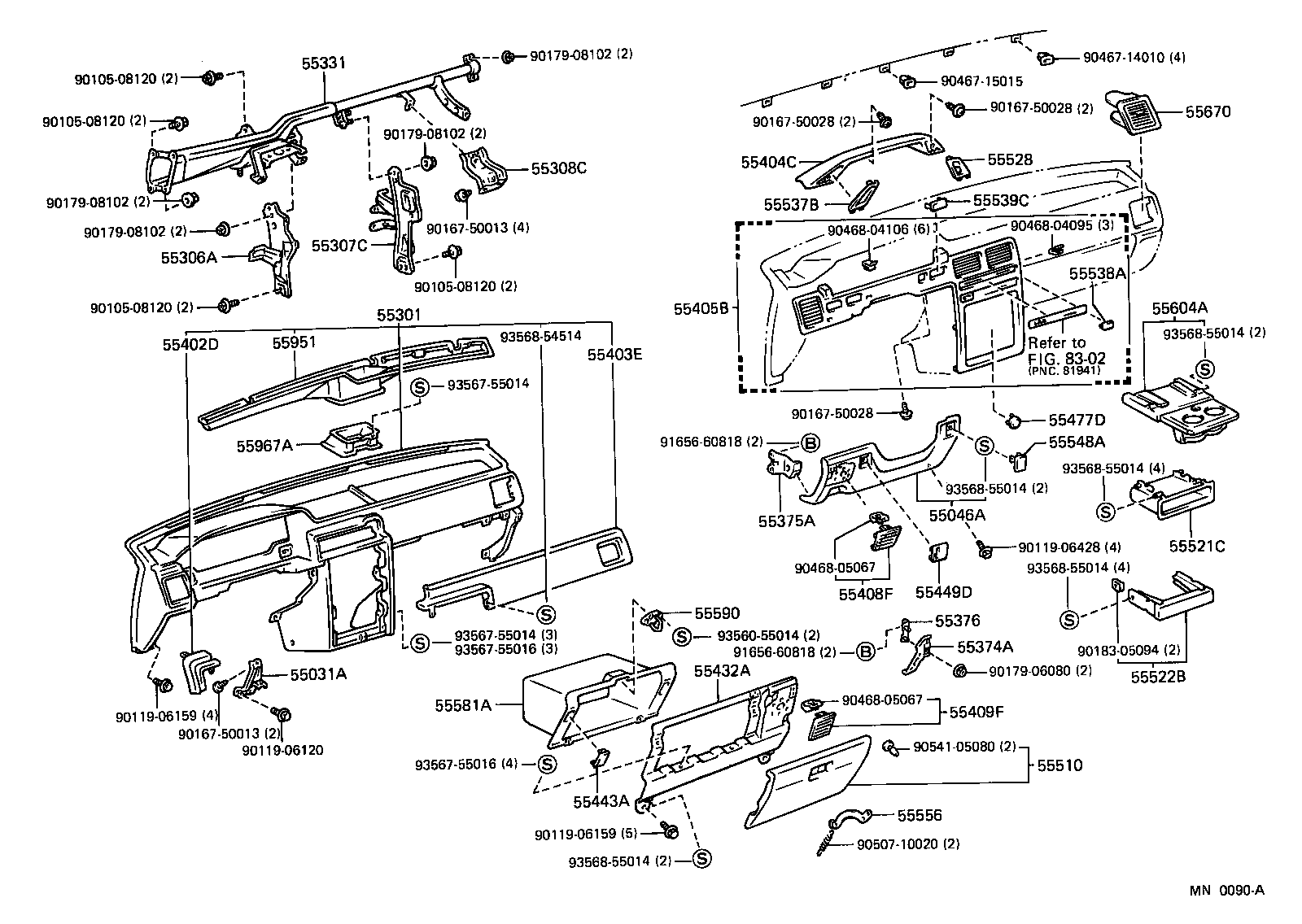

EL31L-ZGMRSA (1988)
Toyota Tercel
(8808-8908) ; (8908- )CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031A - STAY SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55031-16020 |
EL31 |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1602004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55301-1602001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55301-1603001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 55301-1603004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 55301-1602006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55301-1603006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-16070 |
EL31..USA |
1 | ||
| 55306-16060 |
EL31 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-16060 |
EL31 |
1 | ||
| 55307-16070 |
EL31..USA |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-16020 |
EL31..USA |
1 | ||
| 55308-16010 |
EL31 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-16040 |
EL31 |
1 | ||
| 55330-16050 |
EL31..USA |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-1602001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55402-1602004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55402-1602006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-1604006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55403-1604001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55403-1604004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-1610004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55404-1610001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55404-1610006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-16071 |
EL31 W(TILT STEERING) |
1 | ||
| 55405-16081 |
EL31 |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-1608006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55432-1608004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55432-1608001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55432-1609006 |
EL31..DX,STD W(TILT STEERING),BROWN,TRIM4# |
1 | ||
| 55432-1609001 |
EL31 W(TILT STEERING),BLACK,TRIM2# |
1 | ||
| 55432-1609004 |
EL31..DX,STD W(TILT STEERING),BLUE,TRIM8# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1607001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55550-1608006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 55550-1608001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 55550-1608004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 55550-1607004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55550-1607006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
EL31 |
3 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16040 |
EL31 |
1 | ||
| 55521-16030 |
EL31..(DX,STD)..USA W(RADIO) |
1 | ||
| 55528 - COVER, AUTO DRIVE OPENING | ||||
| 55528-16010 |
EL31 |
1 | ||
| 55537B - COVER, REAR DEFOGGER SWITCH HOLE | ||||
| 55537-16030 |
EL31..(BASE,STD)..USA |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-16020 |
EL31 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010 |
EL31 |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-16050 |
EL31 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-1605006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55560-1605001 |
EL31 NEW BLACK,TRIM2# |
1 | ||
| 55560-1603001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 55560-1605004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55560-1603004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 55560-1603006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-12040 |
EL31 |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-19015 |
EL31..DX,STD |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1603001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55670-1603004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55670-1603006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55951 - NOZZLE, DEFROSTER, FRONT | ||||
| 55951-16070 |
EL31 |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-16020 |
EL31 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06120 | ||||
| 90119-06159 | ||||
| 90151-40005 | ||||
| 90167-50013 | ||||
| 90167-50028 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-14010 | ||||
| 90467-15015 | ||||
| 90468-04095 | ||||
| 90468-04106 | ||||
| 90468-04687 | ||||
| 93566-54514 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
(8908- )USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031A - STAY SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55031-16020 |
EL31 |
1 | ||
| 55046A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55046-1601006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 55046-1601001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 55046-1601004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-1602004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55301-1602001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55301-1603001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 55301-1603004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 55301-1602006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55301-1603006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-16070 |
EL31..USA |
1 | ||
| 55306-16060 |
EL31 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-16060 |
EL31 |
1 | ||
| 55307-16070 |
EL31..USA |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-16020 |
EL31..USA |
1 | ||
| 55308-16010 |
EL31 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-16040 |
EL31 |
1 | ||
| 55330-16050 |
EL31..USA |
1 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-16030 |
EL31..USA |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-16020 |
EL31..USA |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-16030 |
EL31..USA |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-1602001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55402-1602004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55402-1602006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-1604006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55403-1604001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55403-1604004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-1610004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55404-1610001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55404-1610006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-16071 |
EL31 W(TILT STEERING) |
1 | ||
| 55405-16081 |
EL31 |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-1603006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 55472-1603001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 55472-1603004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-1601006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 55473-1601001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 55473-1601004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-1601001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 55045-1601004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 55045-1601006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 55443A - COVER, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-16010 |
EL31..USA |
2 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-16030 |
EL31..USA |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-1607001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55550-1608006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 55550-1608001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 55550-1608004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 55550-1607004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55550-1607006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16040 |
EL31 |
1 | ||
| 55521-16030 |
EL31..(DX,STD)..USA W(RADIO) |
1 | ||
| 55528 - COVER, AUTO DRIVE OPENING | ||||
| 55528-16010 |
EL31 |
1 | ||
| 55537B - COVER, REAR DEFOGGER SWITCH HOLE | ||||
| 55537-16030 |
EL31..(BASE,STD)..USA |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-16020 |
EL31 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010 |
EL31 |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-1603004 |
EL31..(DX,STD)..USA BLUE,TRIM8# |
1 | ||
| 55548-1603006 |
EL31..(DX,STD)..USA BROWN,TRIM4# |
1 | ||
| 55548-1603001 |
EL31..USA NEW BLACK,TRIM2# |
1 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-16020 |
EL31..USA |
2 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-16010 |
EL31..USA |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-16010 |
EL31..USA |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-19015 |
EL31..DX,STD |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-1603001 |
EL31 BLACK,TRIM2# |
1 | ||
| 55670-1603004 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 55670-1603006 |
EL31..DX,STD BROWN,TRIM4# |
1 | ||
| 55951 - NOZZLE, DEFROSTER, FRONT | ||||
| 55951-16070 |
EL31 |
1 | ||
| 55967A - NOZZLE, DEFROSTER, LOWER | ||||
| 55967-16020 |
EL31 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06120 | ||||
| 90119-06159 | ||||
| 90119-06428 | ||||
| 90167-50013 | ||||
| 90167-50028 | ||||
| 90179-06080 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90467-14010 | ||||
| 90467-15015 | ||||
| 90468-04095 | ||||
| 90468-04106 | ||||
| 90468-05067 | ||||
| 90507-10020 | ||||
| 90541-05080 | ||||
| 91656-60818 | ||||
| 93560-55014 | ||||
| 93567-55014 | ||||
| 93567-55016 | ||||
| 93568-54514 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
