EL31L-ZGMRSA (1988)
Toyota Tercel
Production
Aug 1988
-
Sep 1990
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

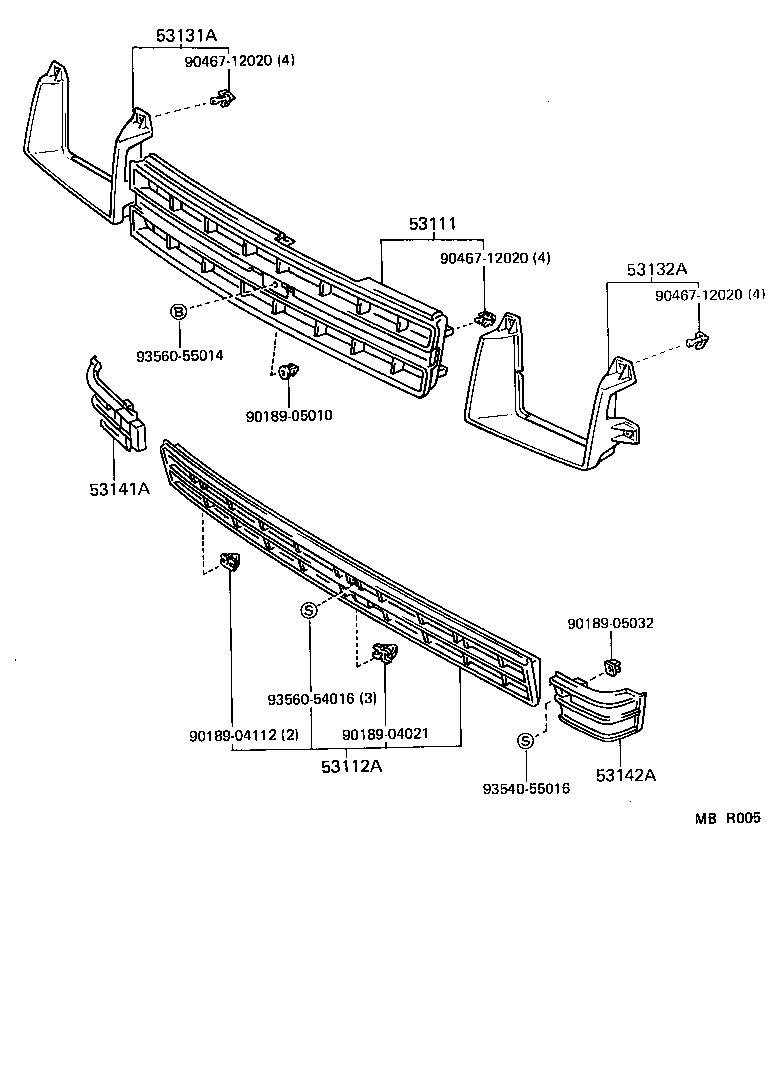

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53111-16200 |
EL31..DX,STD |
1 | ||
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53112-16070 |
EL31..DX,STD |
1 | ||
| 53112-16070 |
EL31 |
1 | ||
| 53141A - GARNISH, RADIATOR GRILLE, LOWER RH | ||||
| 53141-16030 |
EL31 |
1 | ||
| 53142A - GARNISH, RADIATOR GRILLE, LOWER LH | ||||
| 53142-16030 |
EL31 |
1 | ||
| Common parts | ||||
| 90189-04021 | ||||
| 90189-04112 | ||||
| 90189-05010 | ||||
| 90189-05032 | ||||
| 90467-12020 | ||||
| 93540-55016 | ||||
| 93560-54016 | ||||
| 93560-55014 | ||||
