EL31L-ZGMRSA (1988)

Toyota Tercel

Production Aug 1988 - Sep 1990
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

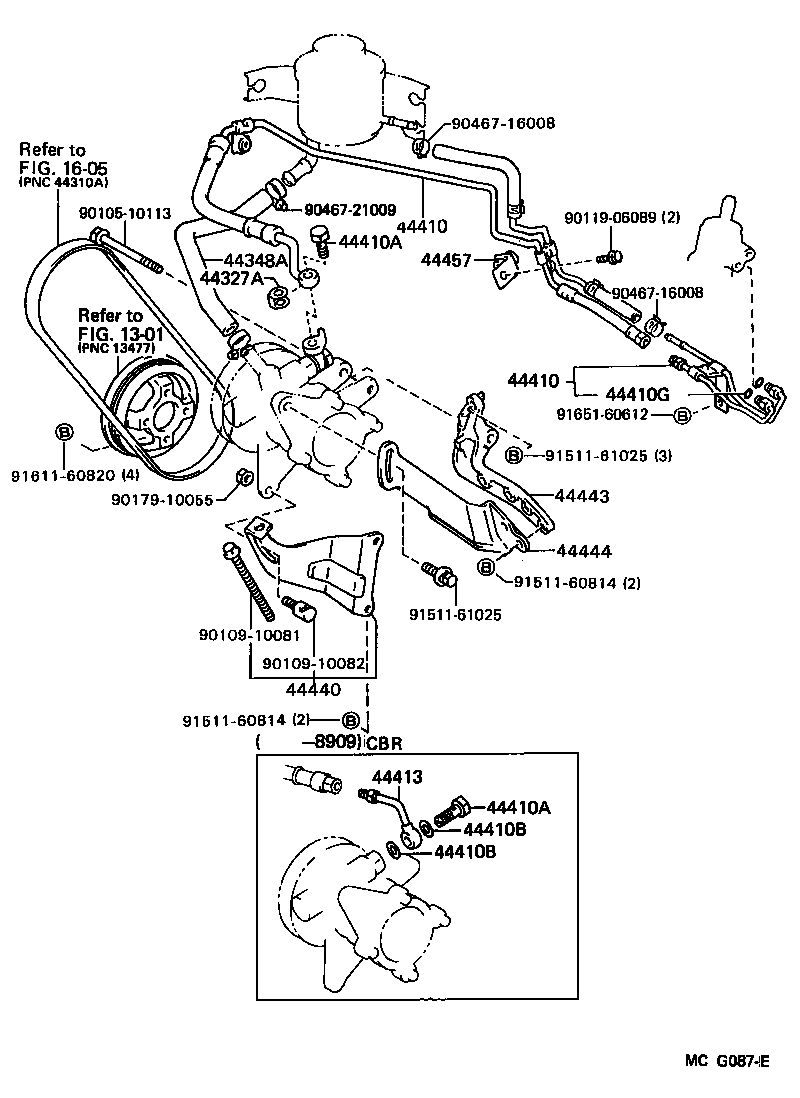

Click highlighted areas on diagram

diagram 1301 1605 44327A 44348A 44410 44410 44410A 44410A 44410B 44410B 44410G 44413 44440 44443 44444 44457 9010510113 9010910081 9010910082 9011906089 9017910055 9046716008 9046716008 9046721009 9151160814 9151160814 9151161025 9151161025 9161160820 9165160612
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

EL31..TER

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-16011

EL31..TER..CBR

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-16031

EL31..TER

GEAR SIDE

 1
44410-16030

EL31..TER

GEAR SIDE

 1
44410-16120

EL31..TER..CBR

PUMP SIDE

 1
44410-16041

EL31..TER..CBR

PUMP SIDE

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-16031

EL31..TER

GEAR SIDE

 1
44410-16030

EL31..TER

GEAR SIDE

 1
44410-16120

EL31..TER..CBR

PUMP SIDE

 1
44410-16041

EL31..TER..CBR

PUMP SIDE

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16017

EL31..TER

 1
90401-16008

EL31..TER..CBR

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16017

EL31..TER

 1
90401-16008

EL31..TER..CBR

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

EL31..TER..CBR

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

EL31..TER..CBR

 2
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009

EL31..TER..CBR

 4
44413 - TUBE, PRESSURE FEED, NO.1
44413-16050

EL31..TER..CBR

 1
44440 - BRACKET ASSY, PUMP
44440-16020

EL31..TER..USA

 1
44443 - BRACKET, PUMP
44443-16010

EL31..TER..USA

 1
44444 - STAY, PUMP, REAR
44444-16011

EL31..TER..USA

 1
44457 - BRACKET, TUBE SUPPORT, NO.1
44457-16030

EL31..TER

 1
Common parts
90105-10113
90109-10081
90109-10082
90119-06089
90179-10055
90467-16008
90467-21009
91511-60814
91511-61025
91611-60820
91651-60612
Linked diagrams
1301
1605
