EL31L-ZGMRSA (1988)
Toyota Tercel
(8808- )

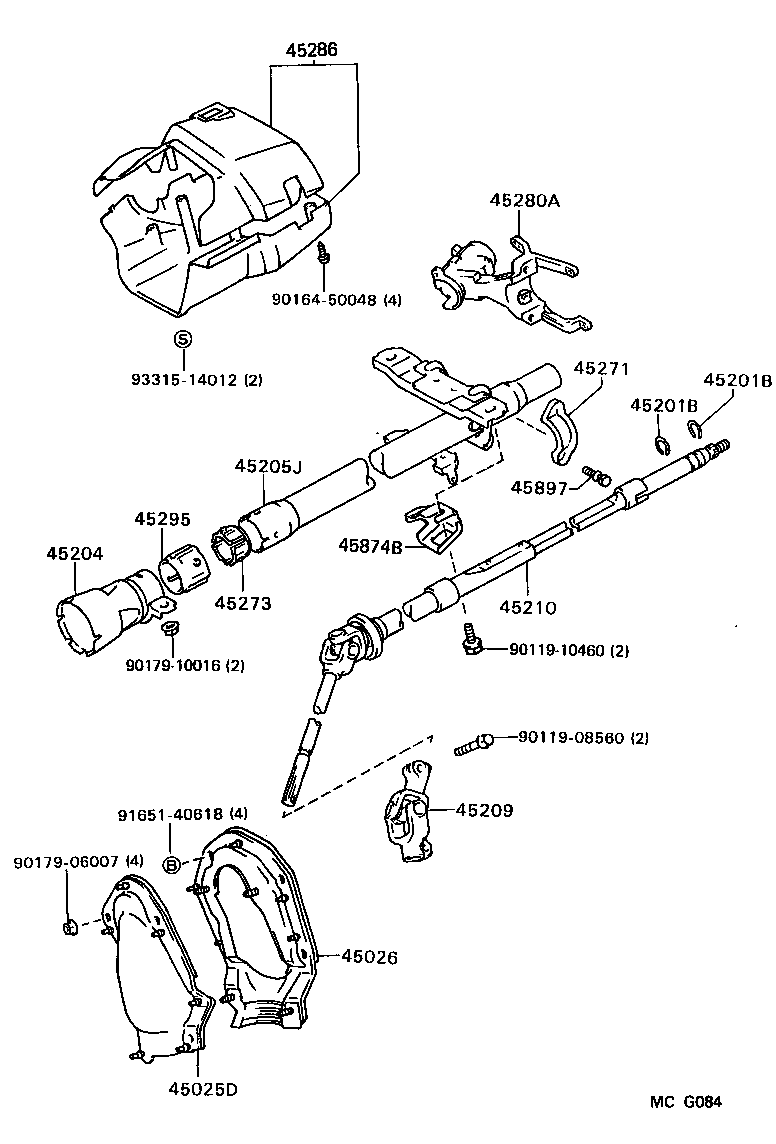

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-16080 |
EL31 |
1 | ||
| 45025-16100 |
EL31..TER W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-16020 |
EL31 |
1 | ||
| 45026-16040 |
EL31..TER W(POWER STEERING) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EL31 T=1.20 |
2 | ||
| 90520-17196 |
EL31 T=1.35-1.45 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EL31 T=1.20 |
2 | ||
| 90520-17196 |
EL31 T=1.35-1.45 |
2 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-16030 |
EL31..TER W(TILT STEERING & POWER STEERING) |
1 | ||
| 45204-16011 |
EL31 |
1 | ||
| 45204-16020 |
EL31 W(TILT STEERING) |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-16050 |
EL31 |
1 | ||
| 45205-16060 |
EL31..TER W(TILT STEERING) |
1 | ||
| 45205-16061 |
EL31..TER W(TILT STEERING) |
1 | ||
| 45205-16051 |
EL31 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16030 |
EL31 |
1 | ||
| 45209-16020 |
EL31..5DS..DX;EL31..5DS..STD..USA;EL31..TER..(2DS,3DS)..CBR W(POWER STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-16110 |
EL31..5DS..DX;EL31..5DS..STD..USA;EL31..TER..(2DS,3DS)..CBR W(POWER STEERING) |
1 | ||
| 45210-16091 |
EL31 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
EL31 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
EL31 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16050 |
EL31 |
1 | ||
| 45280-16060 |
EL31..MTM |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1690604 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 45286-1690601 |
EL31..TER NEW BLACK,TRIM2# |
1 | ||
| 45286-1691104 |
EL31..(DX,STD)..CBR BLUE,TRIM8# |
1 | ||
| 45286-1690801 |
EL31 W(TILT STEERING),NEW BLACK,TRIM2# |
1 | ||
| 45286-1690804 |
EL31..DX,STD W(TILT STEERING),BLUE,TRIM8# |
1 | ||
| 45286-1691106 |
EL31..(DX,STD)..CBR BROWN,TRIM4# |
1 | ||
| 45286-1691206 |
EL31..(2DS,3DS)..(DX,STD)..CBR W(TILT STEERING),BROWN,TRIM4# |
1 | ||
| 45286-1691201 |
EL31..(2DS,3DS)..CBR W(TILT STEERING),NEW BLACK,TRIM2# |
1 | ||
| 45286-1690805 |
EL31..DX,STD W(TILT STEERING),DARK BEIGE,TRIM4# |
1 | ||
| 45286-1690605 |
EL31..DX,STD DARK BEIGE,TRIM4# |
1 | ||
| 45286-1691101 |
EL31..CBR NEW BLACK,TRIM2# |
1 | ||
| 45286-1691204 |
EL31..(2DS,3DS)..(DX,STD)..CBR W(TILT STEERING),BLUE,TRIM8# |
1 | ||
| 45295 - BUSH, STEERING COLUMN TUBE | ||||
| 45295-16010 |
EL31 |
1 | ||
| 45874B - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-16020 |
EL31 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EL31 |
2 | ||
| 45897-32010 |
EL31 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10460 | ||||
| 90164-50048 | ||||
| 90179-06007 | ||||
| 90179-10016 | ||||
| 91651-40618 | ||||
| 93315-14012 | ||||
(8808-8908)
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-16080 |
EL31 |
1 | ||
| 45025-16100 |
EL31..TER W(POWER STEERING) |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-16020 |
EL31 |
1 | ||
| 45026-16040 |
EL31..TER W(POWER STEERING) |
1 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90508-32029 |
EL31..TER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EL31 T=1.20 |
2 | ||
| 90520-17196 |
EL31 T=1.35-1.45 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EL31 T=1.20 |
2 | ||
| 90520-17196 |
EL31 T=1.35-1.45 |
2 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-16030 |
EL31..TER W(TILT STEERING & POWER STEERING) |
1 | ||
| 45204-16011 |
EL31 |
1 | ||
| 45204-16020 |
EL31 W(TILT STEERING) |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-08034 |
EL31..TER |
2 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-08034 |
EL31..TER |
2 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-16050 |
EL31 |
1 | ||
| 45205-16060 |
EL31..TER W(TILT STEERING) |
1 | ||
| 45205-16061 |
EL31..TER W(TILT STEERING) |
1 | ||
| 45205-16051 |
EL31 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16030 |
EL31 |
1 | ||
| 45209-16020 |
EL31..5DS..DX;EL31..5DS..STD..USA;EL31..TER..(2DS,3DS)..CBR W(POWER STEERING) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-16110 |
EL31..5DS..DX;EL31..5DS..STD..USA;EL31..TER..(2DS,3DS)..CBR W(POWER STEERING) |
1 | ||
| 45210-16091 |
EL31 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
EL31 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
EL31 |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-16020 |
EL31..TER |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16050 |
EL31 |
1 | ||
| 45280-16060 |
EL31..MTM |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1690604 |
EL31..DX,STD BLUE,TRIM8# |
1 | ||
| 45286-1690601 |
EL31..TER NEW BLACK,TRIM2# |
1 | ||
| 45286-1691104 |
EL31..(DX,STD)..CBR BLUE,TRIM8# |
1 | ||
| 45286-1690801 |
EL31 W(TILT STEERING),NEW BLACK,TRIM2# |
1 | ||
| 45286-1690804 |
EL31..DX,STD W(TILT STEERING),BLUE,TRIM8# |
1 | ||
| 45286-1691106 |
EL31..(DX,STD)..CBR BROWN,TRIM4# |
1 | ||
| 45286-1691206 |
EL31..(2DS,3DS)..(DX,STD)..CBR W(TILT STEERING),BROWN,TRIM4# |
1 | ||
| 45286-1691201 |
EL31..(2DS,3DS)..CBR W(TILT STEERING),NEW BLACK,TRIM2# |
1 | ||
| 45286-1690805 |
EL31..DX,STD W(TILT STEERING),DARK BEIGE,TRIM4# |
1 | ||
| 45286-1690605 |
EL31..DX,STD DARK BEIGE,TRIM4# |
1 | ||
| 45286-1691101 |
EL31..CBR NEW BLACK,TRIM2# |
1 | ||
| 45286-1691204 |
EL31..(2DS,3DS)..(DX,STD)..CBR W(TILT STEERING),BLUE,TRIM8# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-16010 |
EL31..TER |
1 | ||
| 45295 - BUSH, STEERING COLUMN TUBE | ||||
| 45295-16010 |
EL31 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-16030 |
EL31..TER |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-16030 |
EL31..TER |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-16010 |
EL31..TER |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-16020 |
EL31..TER |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EL31 |
2 | ||
| 45897-32010 |
EL31 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-16010 |
EL31..TER |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-10460 | ||||
| 90164-50048 | ||||
| 90179-06007 | ||||
| 90179-06045 | ||||
| 90179-10016 | ||||
| 90201-08029 | ||||
| 91651-40618 | ||||
| 91651-60612 | ||||
| 93315-14012 | ||||
