EL31L-ZGMRSA (1988)
Toyota Tercel
Production
Aug 1988
-
Sep 1990
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

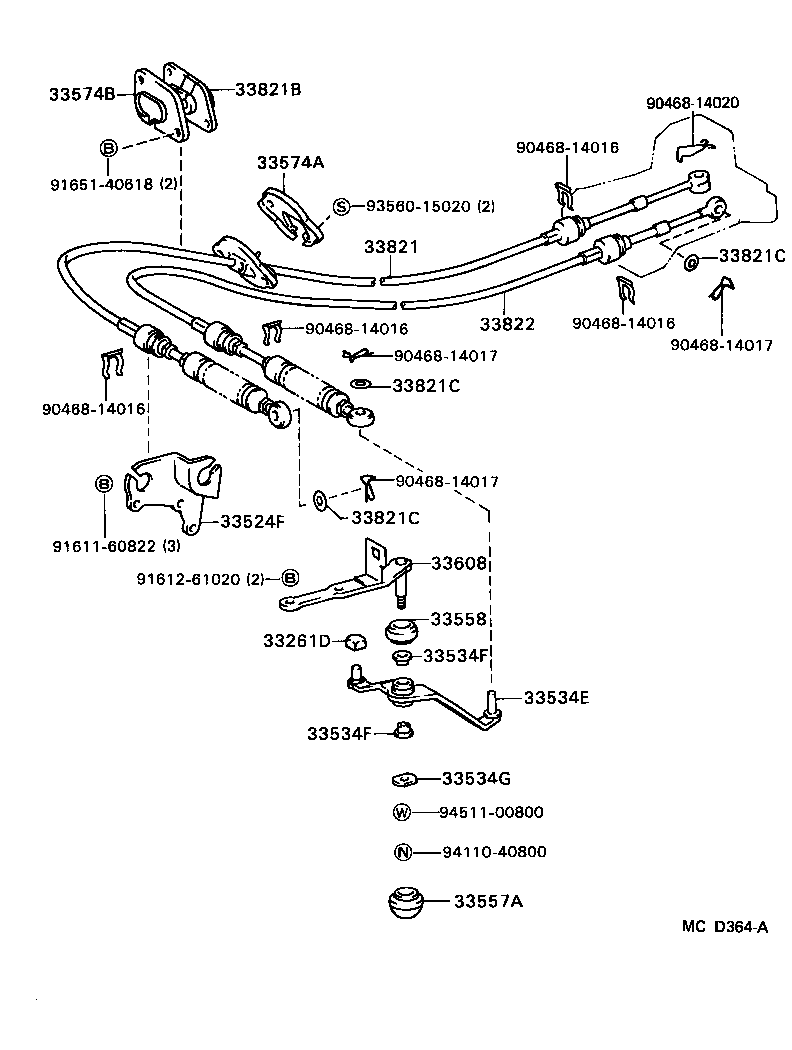

ILLUST NO. 2 OF 2(8808- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 90389-10009 |
EL31..MTM |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-10030 |
EL31..MTM |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-10030 |
EL31..MTM |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EL31..MTM |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
EL31..MTM |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
EL31..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
EL31..MTM |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
EL31..MTM |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EL31 |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EL31 |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-10011 |
EL31..MTM |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-16010 |
EL31..MTM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01291 |
EL31..MTM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EL31..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EL31..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EL31..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EL31..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EL31..MTM SHIFT LEVER SIDE |
1 | ||
| 90201-08267 |
EL31..MTM OD=28,TRANSAXLE SIDE |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-16010 |
EL31..MTM |
1 | ||
| Common parts | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14020 | ||||
| 91611-60822 | ||||
| 91612-61020 | ||||
| 91651-40618 | ||||
| 93560-15020 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

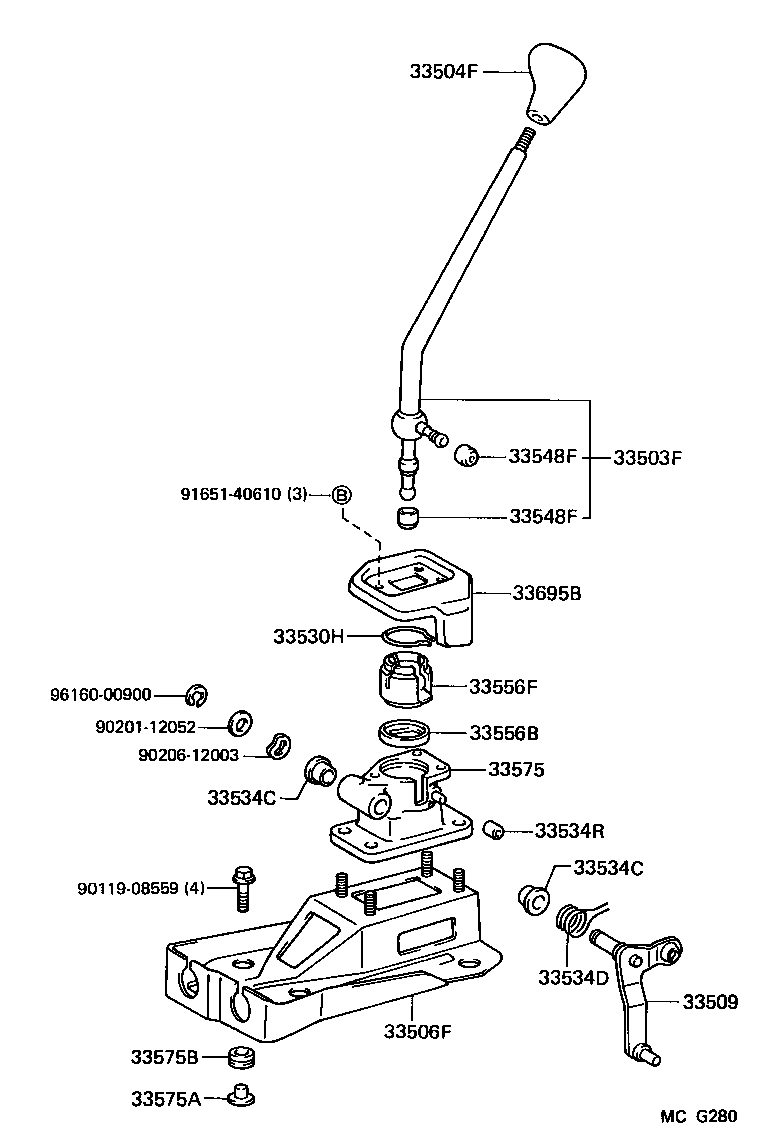

ILLUST NO. 1 OF 2(8808- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-16221 |
EL31..MTM |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-1405034 |
EL31..5F BLUE,TRIM8# |
1 | ||
| 33504-1405011 |
EL31..5F NEW BLACK,TRIM2# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-16030 |
EL31..MTM |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-12060 |
EL31..MTM |
1 | ||
| 33509-12080 |
EL31..MTM |
1 | ||
| 33530H - RING, SNAP (FOR SHIFT LEVER) | ||||
| 90520-34002 |
EL31..MTM |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
EL31..MTM |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
EL31..MTM |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20084 |
EL31..MTM |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06029 |
EL31..MTM |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
EL31..MTM |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
EL31..MTM |
2 | ||
| 33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90385-34001 |
EL31..MTM |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-20020 |
EL31..MTM |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-20390 |
EL31..MTM |
1 | ||
| 33575-16040 |
EL31..MTM |
1 | ||
| 33575A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-08031 |
EL31..MTM |
4 | ||
| 33575B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90389-10018 |
EL31..MTM |
4 | ||
| 33695B - COVER, SELECTING SPRING (FOR FLOOR SHIFT) | ||||
| 33695-20010 |
EL31..MTM |
1 | ||
| Common parts | ||||
| 90119-08559 | ||||
| 90201-12052 | ||||
| 90206-12003 | ||||
| 91651-40610 | ||||
| 96160-00900 | ||||
