EL31L-ZGMRSA (1988)
Toyota Tercel
Production
Aug 1988
-
Sep 1990
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-8905)MTM

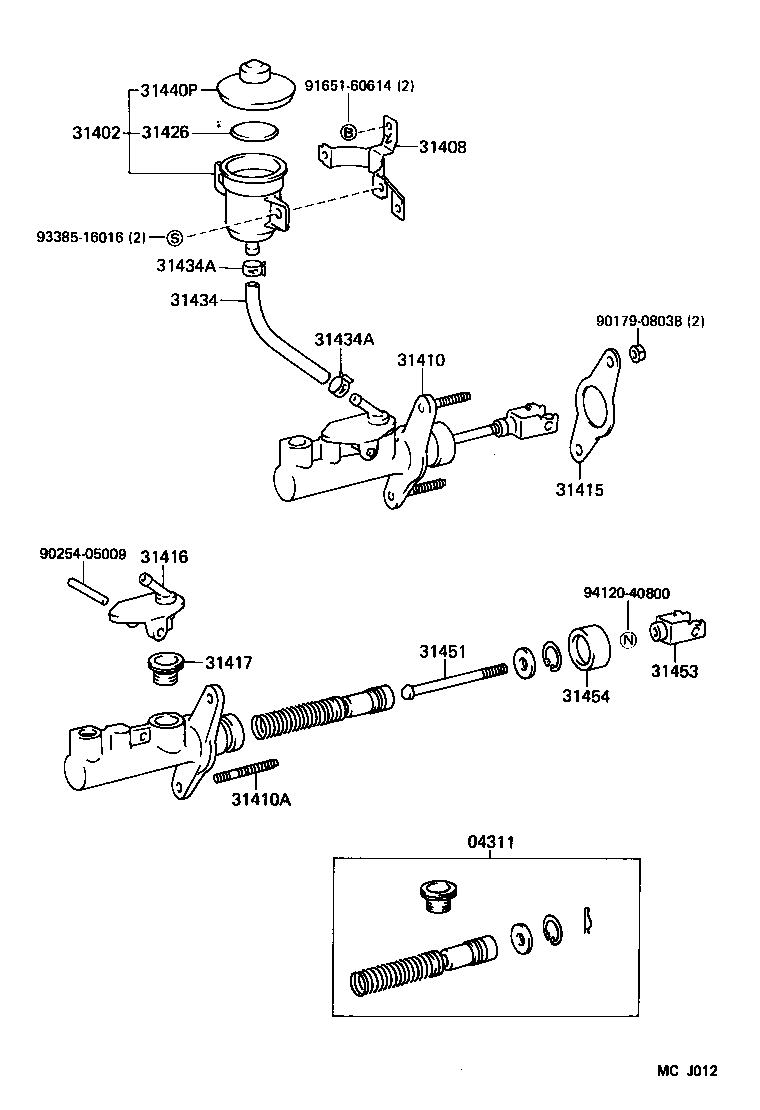

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12060 |
EL31..MTM |
1 | ||
| 04311-28010 |
EL31..MTM |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-10011 |
EL31..MTM |
1 | ||
| 31402-10010 |
EL31..MTM |
1 | ||
| 31408 - HOLDER SUB-ASSY, CLUTCH RESERVOIR | ||||
| 31408-10010 |
EL31..MTM |
1 | ||
| 31408-10011 |
EL31..MTM |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-16011 |
EL31..MTM |
1 | ||
| 31420-16010 |
EL31..MTM |
1 | ||
| 31420-10013 |
EL31..MTM |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 90116-08146 |
EL31..MTM |
2 | ||
| 31410G - GASKET(FOR CLUTCH MASTER CYLINDER UNION) | ||||
| 90430-16242 |
EL31..MTM |
1 | ||
| 31410H - UNION(FOR CLUTCH MASTER CYLINDER) | ||||
| 90404-16307 |
EL31..MTM |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-10010 |
EL31..MTM |
1 | ||
| 31422A - BRACKET, CLUTCH RESERVOIR | ||||
| 31422-10010 |
EL31..MTM |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
EL31..MTM |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-16011 |
EL31..MTM |
1 | ||
| 31434-16010 |
EL31..MTM |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
EL31..MTM |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
EL31..MTM |
2 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
EL31..MTM |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-27010 |
EL31..MTM |
1 | ||
| 31451-20090 |
EL31..MTM |
1 | ||
| 31451-22060 |
EL31..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-10020 |
EL31..MTM |
1 | ||
| 31453-35010 |
EL31..MTM |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
EL31..MTM |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 91651-60614 | ||||
| 93385-16016 | ||||
| 94120-40800 | ||||
(8905- )MTM

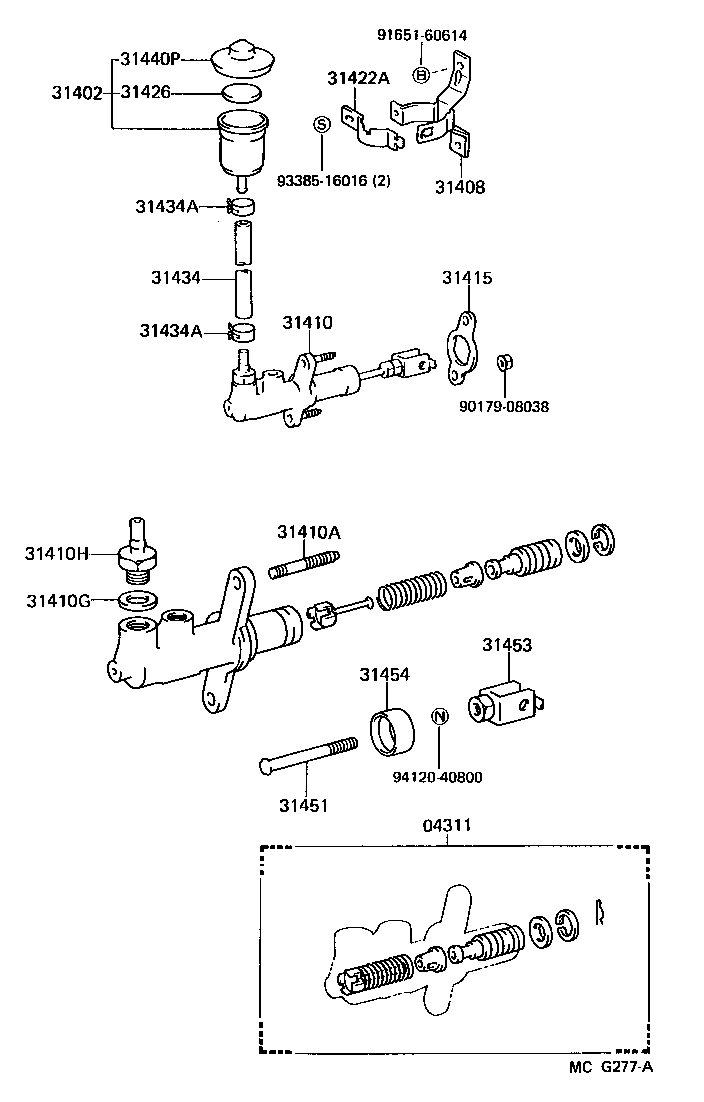

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12060 |
EL31..MTM |
1 | ||
| 04311-28010 |
EL31..MTM |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-10011 |
EL31..MTM |
1 | ||
| 31402-10010 |
EL31..MTM |
1 | ||
| 31408 - HOLDER SUB-ASSY, CLUTCH RESERVOIR | ||||
| 31408-10010 |
EL31..MTM |
1 | ||
| 31408-10011 |
EL31..MTM |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31420-16011 |
EL31..MTM |
1 | ||
| 31420-16010 |
EL31..MTM |
1 | ||
| 31420-10013 |
EL31..MTM |
1 | ||
| 31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING) | ||||
| 90116-08146 |
EL31..MTM |
2 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-10010 |
EL31..MTM |
1 | ||
| 31416 - UNION, CLUTCH MASTER CYLINDER INLET | ||||
| 31416-16010 |
EL31..MTM |
1 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
EL31..MTM |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
EL31..MTM |
1 | ||
| 31434 - TUBE, CLUTCH RESERVOIR | ||||
| 31434-16011 |
EL31..MTM |
1 | ||
| 31434-16010 |
EL31..MTM |
1 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
EL31..MTM |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
EL31..MTM |
2 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
EL31..MTM |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-27010 |
EL31..MTM |
1 | ||
| 31451-20090 |
EL31..MTM |
1 | ||
| 31451-22060 |
EL31..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-10020 |
EL31..MTM |
1 | ||
| 31453-35010 |
EL31..MTM |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
EL31..MTM |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90254-05009 | ||||
| 91651-60614 | ||||
| 93385-16016 | ||||
| 94120-40800 | ||||
