EL31L-ZGMRSA (1988)
Toyota Tercel
Production
Aug 1988
-
Sep 1990
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3E

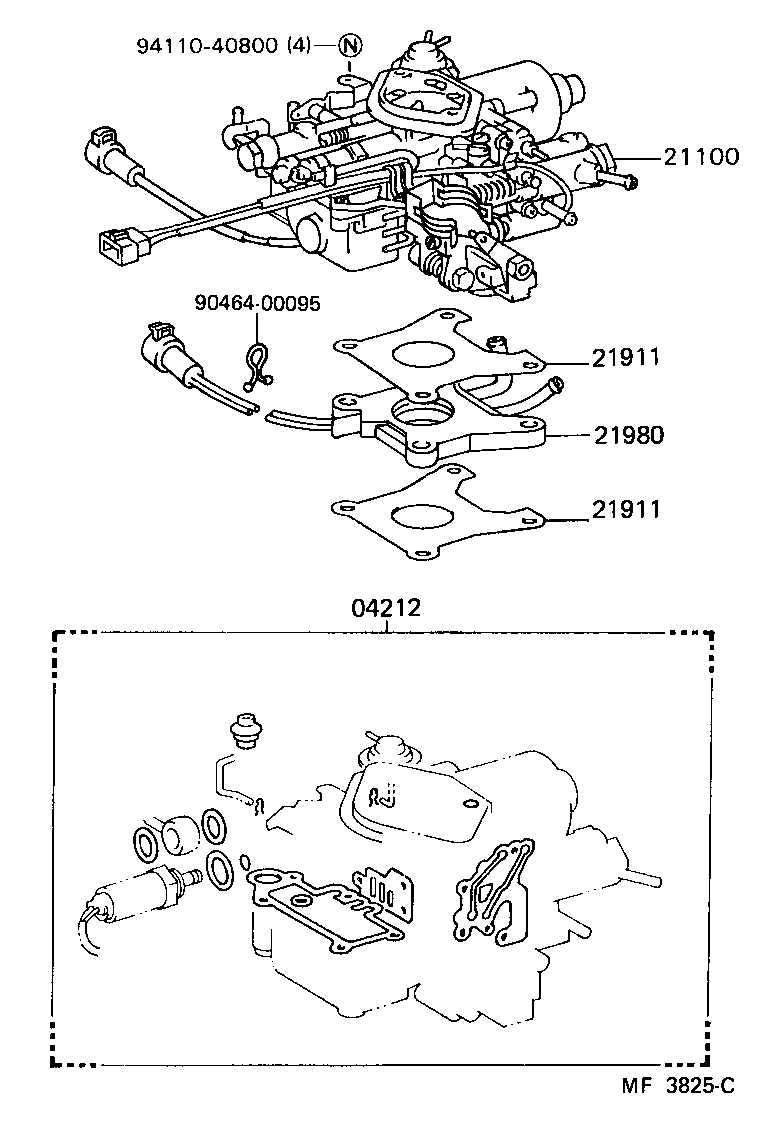

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04212 - GASKET KIT, CARBURETOR | ||||
| 04212-11040 |
3E..EL31 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-11392 |
3E..EL31..MTM |
1 | ||
| 21100-11422 |
3E..EL31..MTM..USA CALIFOLNIA SPEC |
1 | ||
| 21100-11423 |
3E..EL31..MTM..USA CALIFOLNIA SPEC |
1 | ||
| 21100-11393 |
3E..EL31..MTM |
1 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-11030 |
3E..EL31 LOWER |
1 | ||
| 21911-11021 |
3E..EL31 UPPER |
1 | ||
| 21911-11020 |
3E..EL31 UPPER |
1 | ||
| 21911-11031 |
3E..EL31 LOWER |
1 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-11030 |
3E..EL31 LOWER |
1 | ||
| 21911-11021 |
3E..EL31 UPPER |
1 | ||
| 21911-11020 |
3E..EL31 UPPER |
1 | ||
| 21911-11031 |
3E..EL31 LOWER |
1 | ||
| 21980 - HEATER ASSY, COLD MIXTURE | ||||
| 21980-11010 |
3E..EL31 |
1 | ||
| Common parts | ||||
| 90464-00095 | ||||
| 94110-40800 | ||||
