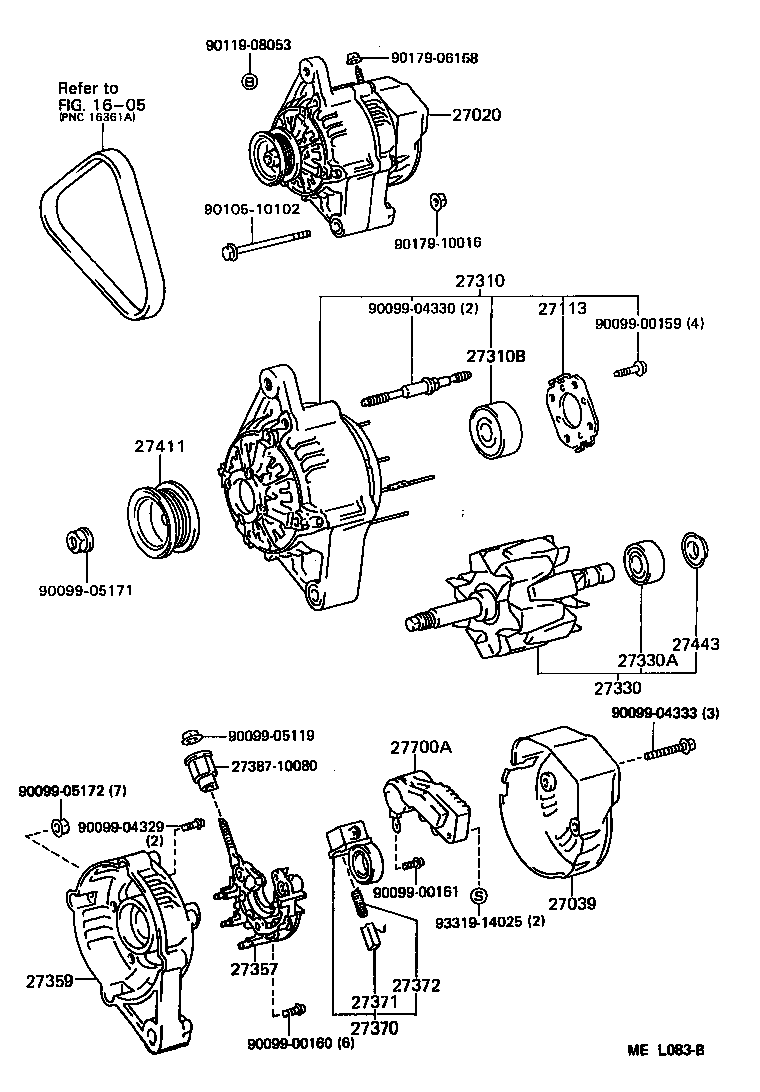

EL31L-ZGMRSA (1988)
Toyota Tercel
(8808- )
12V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-11100 |
3E..EL31..TER..MTM..USA 12V 55A,COLD SPEC OR COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 27060-11080 |
3E..EL31..TER..MTM..USA 12V 50A,12V 50A,CALIFORNIA SPEC |
1 | ||
| 27060-10011 |
3E..EL31..TER..MTM..USA 12V 55A,W(AIR CONDITIONER) |
1 | ||
| 27060-11100 |
3E..EL31..TER..MTM..USA 12V 55A |
1 | ||
| 27060-10011 |
3E..EL31..TER..MTM..USA 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11080 |
3E..EL31..TER..MTM..USA 12V 55A,NO.2 |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA 12V 55A,NO.1 |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA NO.1 |
1 | ||
| 27039-11080 |
3E..EL31..TER..MTM..USA 12V 55A,NO.2 |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA NO.1 |
1 | ||
| 27039-72150 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA 12V 55A,NO.1 |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-72120 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27312-72100 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-10021 |
3E..EL31..TER..MTM..USA 12V 55A,W(AIR CONDITIONER) |
1 | ||
| 27310-11080 |
3E..EL31..TER..MTM..USA 12V 55A |
1 | ||
| 27310-10090 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27310-11080 |
3E..EL31..TER..MTM..USA 12V 55A,COLD SPEC OR COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 27310-10021 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10159 |
3E..EL31..TER..MTM..USA |
1 | ||
| 90099-10170 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72150 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27330-10021 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
3E..EL31..TER..MTM..USA |
1 | ||
| 90099-10154 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27357-63040 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16081 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27359-16081 |
3E..EL31..TER..MTM..USA 12V 55A,W(AIR CONDITIONER) |
1 | ||
| 27359-11080 |
3E..EL31..TER..MTM..USA COLD SPEC OR COLD SPEC & W(AIR CONDITIONER),12V 55A |
1 | ||
| 27359-72150 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27359-11080 |
3E..EL31..TER..MTM..USA 12V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-16011 |
3E..EL31 |
1 | ||
| 27370-16011 |
3EE..EL31;3E..EL31..3FC..CND;3E..EL31..TER..MTM..USA |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
3E..EL31..TER..MTM..USA |
2 | ||
| 27371-63020 |
3E..EL31..2DS,3DS |
2 | ||
| 27371-63020 |
3EE..EL31;3E..EL31..3FC..CND;3E..EL31..TER..MTM..USA |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3E#..EL31 |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-70200 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27411-10051 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3E..EL31 |
1 | ||
| 27443-63020 |
3EE..EL31;3E..EL31..3FC..CND;3E..EL31..TER..MTM..USA |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-10050 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27700-70030 |
3E..EL31..TER..MTM..USA 12V 55A,60A |
1 | ||
| Common parts | ||||
| 27387-10080 | ||||
| 90099-00159 | ||||
| 90099-00160 | ||||
| 90099-00161 | ||||
| 90099-04329 | ||||
| 90099-04330 | ||||
| 90099-04333 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10102 | ||||
| 90119-08053 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 93319-14025 | ||||
| Linked diagrams | ||||
| 1605 | ||||

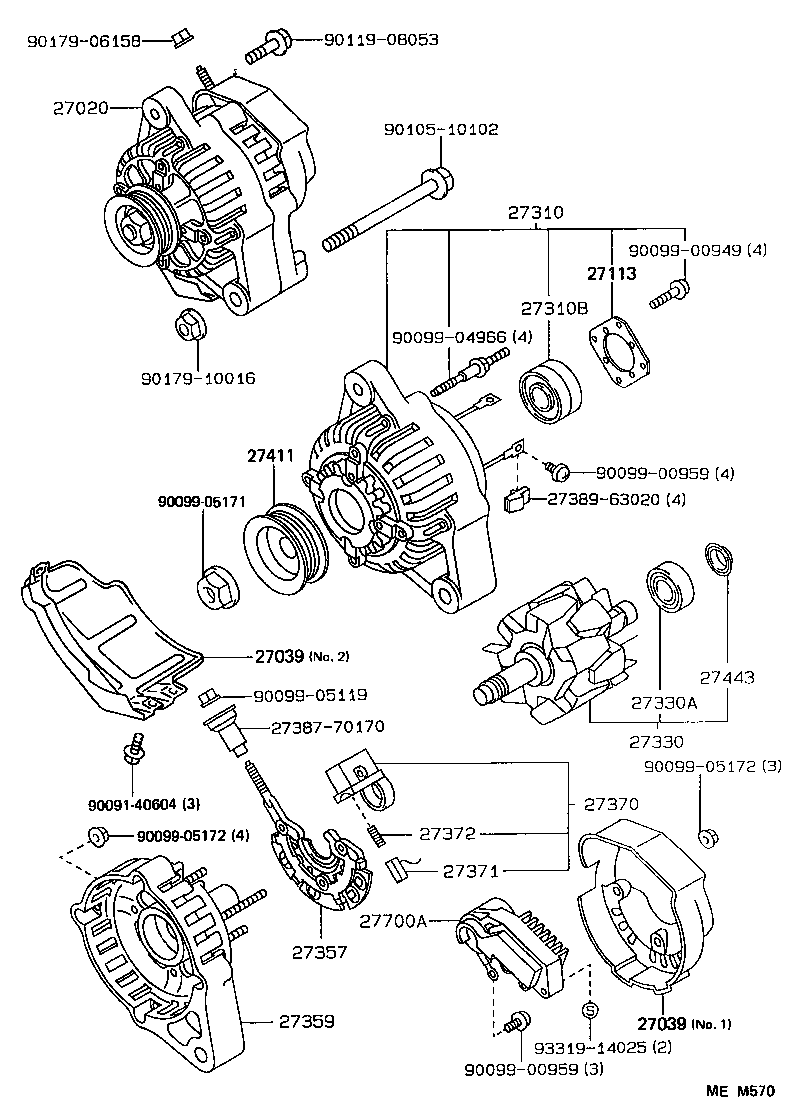

(8808- )
12V 55A,60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-11100 |
3E..EL31..TER..MTM..USA 12V 55A,COLD SPEC OR COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 27060-11080 |
3E..EL31..TER..MTM..USA 12V 50A,12V 50A,CALIFORNIA SPEC |
1 | ||
| 27060-10011 |
3E..EL31..TER..MTM..USA 12V 55A,W(AIR CONDITIONER) |
1 | ||
| 27060-11100 |
3E..EL31..TER..MTM..USA 12V 55A |
1 | ||
| 27060-10011 |
3E..EL31..TER..MTM..USA 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11080 |
3E..EL31..TER..MTM..USA 12V 55A,NO.2 |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA 12V 55A,NO.1 |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA NO.1 |
1 | ||
| 27039-11080 |
3E..EL31..TER..MTM..USA 12V 55A,NO.2 |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA NO.1 |
1 | ||
| 27039-72150 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA 12V 55A,NO.1 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11080 |
3E..EL31..TER..MTM..USA 12V 55A,NO.2 |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA 12V 55A,NO.1 |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA NO.1 |
1 | ||
| 27039-11080 |
3E..EL31..TER..MTM..USA 12V 55A,NO.2 |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA NO.1 |
1 | ||
| 27039-72150 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27039-72110 |
3E..EL31..TER..MTM..USA 12V 55A,NO.1 |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-72120 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27312-72100 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-10021 |
3E..EL31..TER..MTM..USA 12V 55A,W(AIR CONDITIONER) |
1 | ||
| 27310-11080 |
3E..EL31..TER..MTM..USA 12V 55A |
1 | ||
| 27310-10090 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27310-11080 |
3E..EL31..TER..MTM..USA 12V 55A,COLD SPEC OR COLD SPEC & W(AIR CONDITIONER) |
1 | ||
| 27310-10021 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10159 |
3E..EL31..TER..MTM..USA |
1 | ||
| 90099-10170 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72150 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27330-10021 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
3E..EL31..TER..MTM..USA |
1 | ||
| 90099-10154 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-72150 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27357-63040 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16081 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27359-16081 |
3E..EL31..TER..MTM..USA 12V 55A,W(AIR CONDITIONER) |
1 | ||
| 27359-11080 |
3E..EL31..TER..MTM..USA COLD SPEC OR COLD SPEC & W(AIR CONDITIONER),12V 55A |
1 | ||
| 27359-72150 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27359-11080 |
3E..EL31..TER..MTM..USA 12V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-16011 |
3E..EL31 |
1 | ||
| 27370-16011 |
3EE..EL31;3E..EL31..3FC..CND;3E..EL31..TER..MTM..USA |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-63020 |
3E..EL31..TER..MTM..USA |
2 | ||
| 27371-63020 |
3E..EL31..2DS,3DS |
2 | ||
| 27371-63020 |
3EE..EL31;3E..EL31..3FC..CND;3E..EL31..TER..MTM..USA |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3E#..EL31 |
2 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-70200 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27411-10051 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3E..EL31 |
1 | ||
| 27443-63020 |
3EE..EL31;3E..EL31..3FC..CND;3E..EL31..TER..MTM..USA |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-10050 |
3E..EL31..TER..MTM..USA |
1 | ||
| 27700-70030 |
3E..EL31..TER..MTM..USA 12V 55A,60A |
1 | ||
| Common parts | ||||
| 27387-70170 | ||||
| 27389-63020 | ||||
| 90091-40604 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10102 | ||||
| 90119-08053 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 93319-14025 | ||||
