EL31L-ZGMDSK (1988)
Toyota Tercel
Production
Aug 1988
-
Aug 1989
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

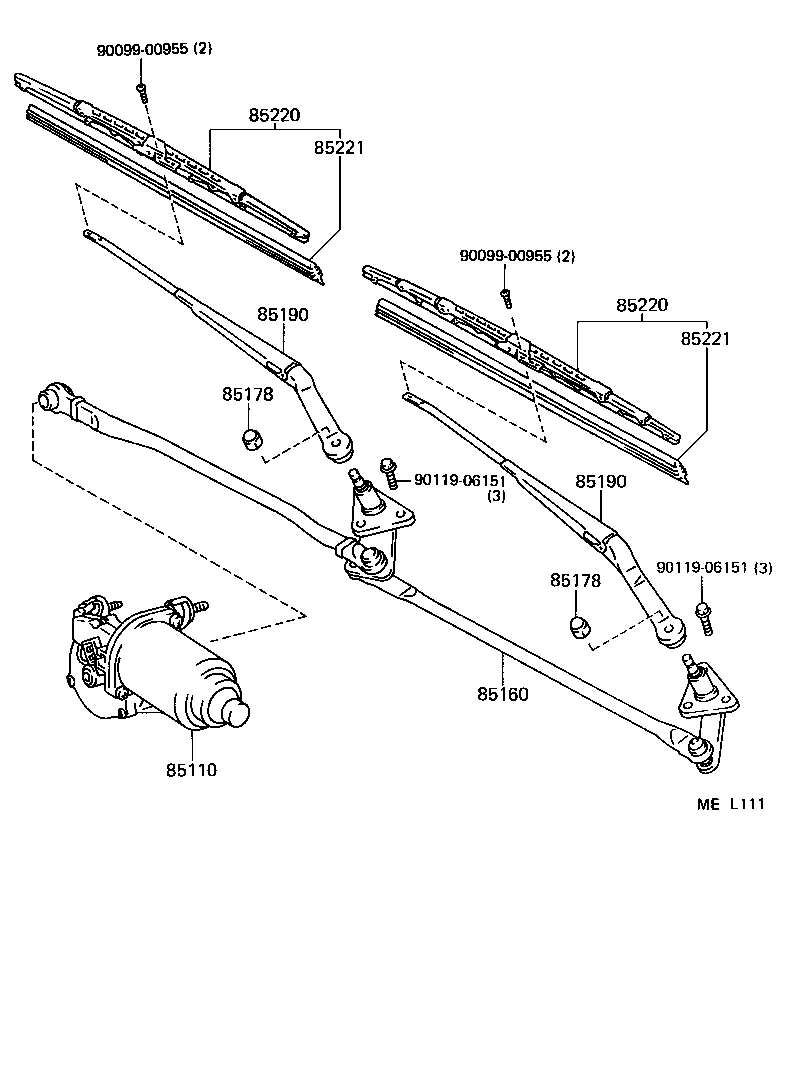

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-16262 |
EL31..CND |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-16200 |
EL31..CND |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08040 |
EL31 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08040 |
EL31 |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-16040 |
EL31 RH |
1 | ||
| 85190-16170 |
EL31 LH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85210-16040 |
EL31 RH |
1 | ||
| 85190-16170 |
EL31 LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-32280 |
EL31 LH |
1 | ||
| 85220-16670 |
EL31 RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-32280 |
EL31 LH |
1 | ||
| 85220-16670 |
EL31 RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-16100 |
EL31 RH |
1 | ||
| 85221-32060 |
EL31 LH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-16100 |
EL31 RH |
1 | ||
| 85221-32060 |
EL31 LH |
1 | ||
| Common parts | ||||
| 90099-00955 | ||||
| 90119-06151 | ||||
