EL31L-ZGMDSK (1988)
Toyota Tercel

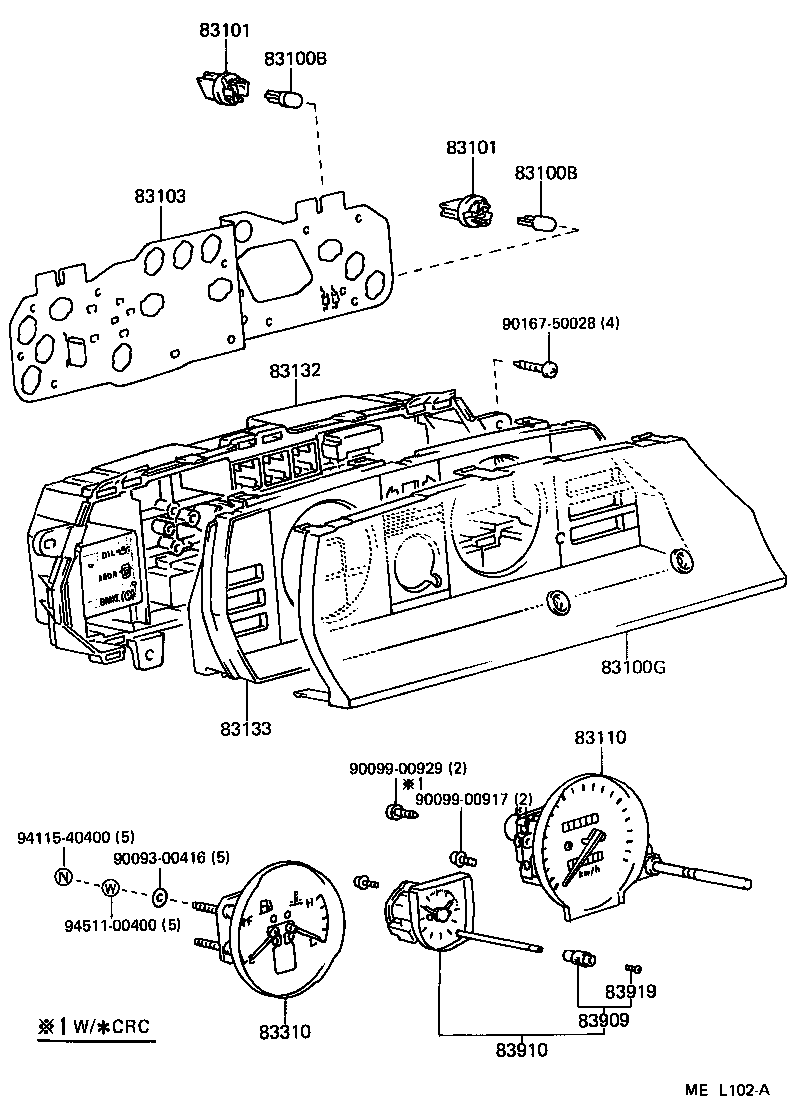

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
EL31..DX,STD;EL31..BASE..CND 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
EL31..DX..CND 12V 3.4W |
9 | ||
| 83109-24030 |
EL31..DX..CND;EL31..5DS..STD..CND 12V3.4W W(GREEN CAP) |
9 | ||
| 99132-12034 |
EL31..(2DS,3DS)..(DX,STD)..CBR 12V 3.4W |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
EL31..DX,STD;EL31..BASE..CND 12V3.4W W(GREEN CAP) |
4 | ||
| 99132-12034 |
EL31..DX..CND 12V 3.4W |
9 | ||
| 83109-24030 |
EL31..DX..CND;EL31..5DS..STD..CND 12V3.4W W(GREEN CAP) |
9 | ||
| 99132-12034 |
EL31..(2DS,3DS)..(DX,STD)..CBR 12V 3.4W |
8 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-16510 |
EL31..DX..CND W(CLOCK) |
1 | ||
| 83138-16490 |
EL31..DX,STD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EL31..5DS..DX;EL31..BASE..CND;EL31..5DS..STD..USA;EL31..(2DS,3DS)..(DX,STD)..CBR |
12 | ||
| 83101-14030 |
EL31..DX..CND |
13 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EL31..5DS..DX;EL31..BASE..CND;EL31..5DS..STD..USA;EL31..(2DS,3DS)..(DX,STD)..CBR |
12 | ||
| 83101-14030 |
EL31..DX..CND |
13 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1G690 |
EL31..DX W(FUEL LEVEL WARNIG & CLOCK)---EXCL/CALIFORNIA SPEC,W(*CRC) |
1 | ||
| 83247-1G690 |
EL31..5F..DX;EL31..3FC..DX..CND W(FUEL LEVEL WARNING & CLOCK) |
1 | ||
| 83247-1G710 |
EL31..DX W(FUEL LEVEL WARNING)---EXCL/CALIFORNIA SPEC,W(*CRC) |
1 | ||
| 83247-1G670 |
EL31..5DS..DX;EL31..BASE..CND;EL31..5DS..STD..USA;EL31..(2DS,3DS)..(DX,STD)..CBR |
1 | ||
| 83247-1G750 |
EL31..DX..CND;EL31..5DS..STD..CND W(*CRC & FUEL LEVEL WARNING &CLOCK) |
1 | ||
| 83247-1G730 |
EL31..DX..CND W(*CRC) |
1 | ||
| 83247-1G710 |
EL31..5F..DX;EL31..3FC..DX..CND W(FUEL LEVEL WARNING) |
1 | ||
| 83247-1G770 |
EL31..DX..CND W(*CRC & FUEL LEVEL WARNING) |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1G030 |
EL31..(DX,STD)..CND |
1 | ||
| 83110-1G070 |
EL31..DX..CND W(*CRC) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1G010 |
EL31..5DS..DX;EL31..BASE..CND;EL31..5DS..STD..USA;EL31..(2DS,3DS)..(DX,STD)..CBR |
1 | ||
| 83132-1G090 |
EL31..DX..CND W(FUEL LEVEL WARNING) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1G070 |
EL31..DX,STD |
1 | ||
| 83133-1G050 |
EL31..DX..CND W(FUEL LEVEL WARNING)& CLOCK) |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-16730 |
EL31..DX..CND W(FUEL LEVEL WARNING) |
1 | ||
| 83243-16710 |
EL31..5DS..DX..CND;EL31..(2DS,3DS)..CND |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-14012 |
EL31..DX..CND |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-16120 |
EL31..DX..CND |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-14012 |
EL31..DX..CND |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90167-50028 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

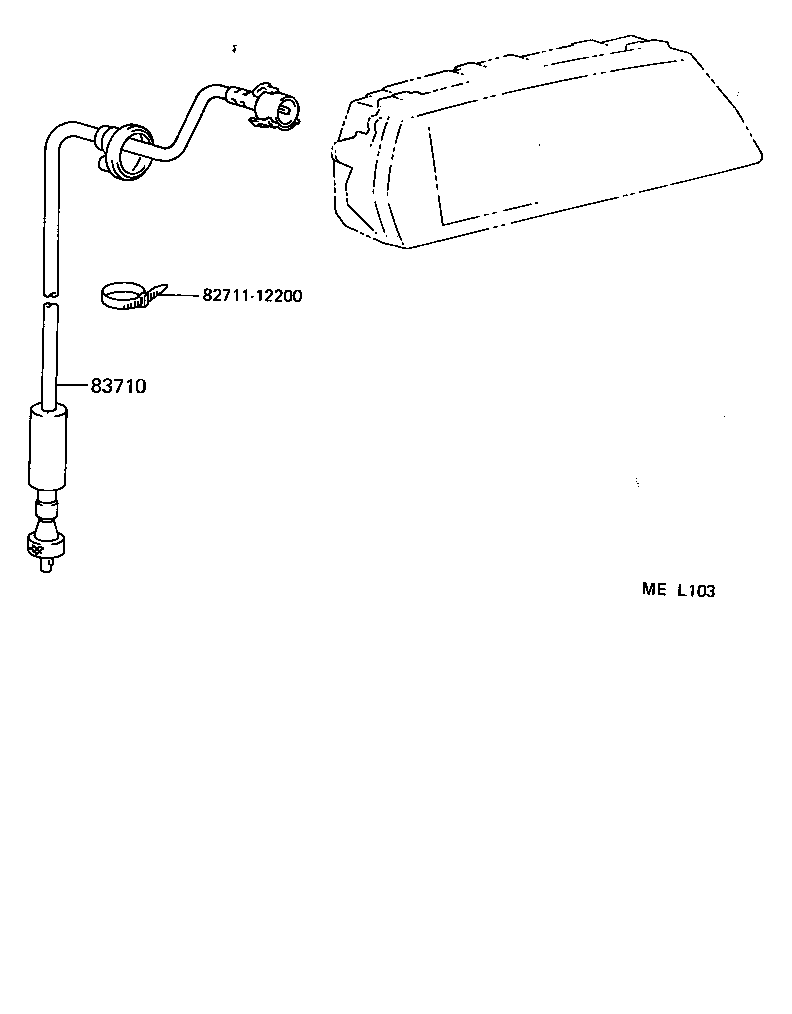

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16200 |
EL31..MTM |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
