EL31L-ZGMDSK (1988)

Toyota Tercel

Production Aug 1988 - Aug 1989
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(8808- )

Click highlighted areas on diagram

diagram 82001 82001 8201 8201 8201 82111 82121 82131 82210C 82210C 82210C 82210C 82345 82625 82671 82817 82823 82823 8401 8401 8401 8401 8401 9010510122 9011906005 9011906005 9011906053 9011906053 9011906053 9011906053 9011906053 9011906053 9017908146 9161140812 9165140816 9165640616
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07242

EL31

NO.2

 1
90980-07282

EL31

NO.1

 1
82001 - CABLE, BOND, NO.1
90980-07242

EL31

NO.2

 1
90980-07282

EL31

NO.1

 1
82111 - WIRE, ENGINE ROOM MAIN
82111-16701

EL31..DX,STD

 1
82111-16731

EL31..(3DS,5DS)..DX

W(*CRC)

 1
82111-16721

EL31..(3DS,5DS)..(DX,STD)

W(RR WIPER)

 1
82121 - WIRE, ENGINE
82121-16323

EL31..MTM..CND

 1
82131 - WIRE, COWL
82131-1G330

EL31..CND;EL31..DX..USA

 1
82131-1G350

EL31..(3DS,5DS)..DX

W(*CRC) OR W(*CRC & RR WIPER)

 1
82131-1G340

EL31..(3DS,5DS)..CND;EL31..(3DS,5DS)..DX..USA

W(RR WIPER)

 1
82210C - FUSIBLE LINK
90982-08190

EL31

60A,TERM.:FEMALE,YEL

 1
90982-08188

EL31

30A,TERM.:FEMALE,PNK

 1
90982-08189

EL31..CBR

40A,TERM.:FEMALE,GRN

 1
82210C - FUSIBLE LINK
90982-08190

EL31

60A,TERM.:FEMALE,YEL

 1
90982-08188

EL31

30A,TERM.:FEMALE,PNK

 1
90982-08189

EL31..CBR

40A,TERM.:FEMALE,GRN

 1
82210C - FUSIBLE LINK
90982-08190

EL31

60A,TERM.:FEMALE,YEL

 1
90982-08188

EL31

30A,TERM.:FEMALE,PNK

 1
90982-08189

EL31..CBR

40A,TERM.:FEMALE,GRN

 1
82210C - FUSIBLE LINK
90982-08190

EL31

60A,TERM.:FEMALE,YEL

 1
90982-08188

EL31

30A,TERM.:FEMALE,PNK

 1
90982-08189

EL31..CBR

40A,TERM.:FEMALE,GRN

 1
82345 - DIODE
82345-12050

EL31..2DS,3DS

 1
82345-12050

EL31..(3DS,5DS)..DX

 2
82671 - BLOCK, JUNCTION
82660-12130

EL31

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-22280

EL31

 1
82823 - CAP, TERMINAL, NO.1
82823-20030

EL31..CND

ST

 1
82823-22050

EL31

ALTERNATOR

 1
82823 - CAP, TERMINAL, NO.1
82823-20030

EL31..CND

ST

 1
82823-22050

EL31

ALTERNATOR

 1
Common parts
90105-10122
90119-06005
90119-06053
90179-08146
91611-40812
91651-40816
91656-40616
Linked diagrams
8201
8401

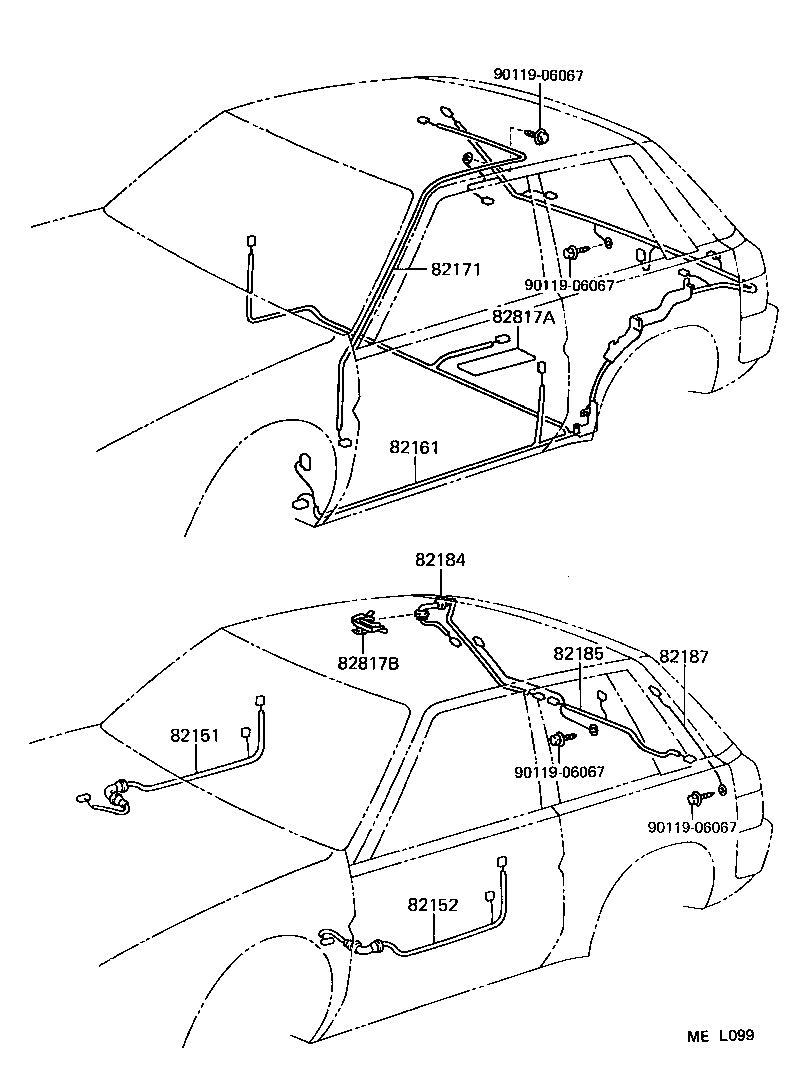

ILLUST NO. 2 OF 3(8808- )3DS

Click highlighted areas on diagram

diagram 82151 82152 82161 82171 82184 82185 82187 82817A 82817B 9011906067 9011906067 9011906067 9011906067
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-16320

EL31..3DS

 1
82161-16330

EL31..3DS

W(RR WIPER)

 1
82171 - WIRE, ROOF, NO.1
82171-16080

EL31..3DS,5DS

 1
82171-16090

EL31..3DS..DX

W(SUNROOF)

 1
82184 - WIRE, BACK DOOR, NO.1
82184-16140

EL31..3DS

 1
82185 - WIRE, BACK DOOR, NO.2
82185-16160

EL31..3DS

 1
82185-16170

EL31..3DS

W(RR WIPER)

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-16040

EL31..3DS..CND;EL31..3DS..DX..USA

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16100

EL31

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-16190

EL31..3DS

 1
Common parts
90119-06067

ILLUST NO. 3 OF 3(8808- )

Click highlighted areas on diagram

diagram 8271110210 8271110250 8271110290 8271112200 8271114110 8271116370 8271116450 8271116470 8271116490 8271122300 8271124070 8868816540 9046400308
Part # Description Qty Price
Common parts
82711-10210
82711-10250
82711-10290
82711-12200
82711-14110
82711-16370
82711-16450
82711-16470
82711-16490
82711-22300
82711-24070
88688-16540
90464-00308
