EL31L-ZGMDSK (1988)
Toyota Tercel
Production
Aug 1988
-
Aug 1989
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )3DS,5DS

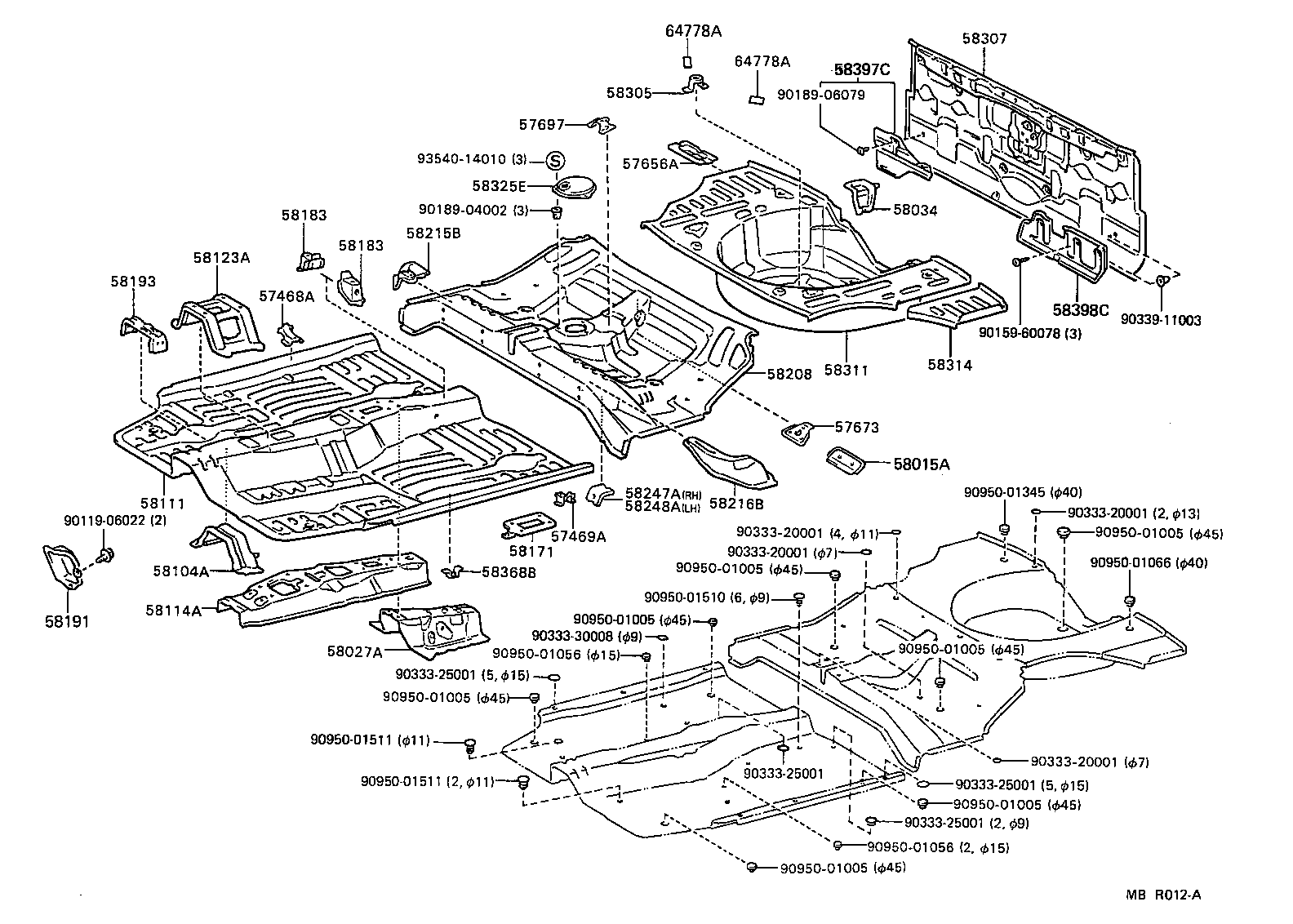

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-16030 |
EL31 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-16030 |
EL31 |
1 | ||
| 57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1 | ||||
| 57656-16010 |
EL31 |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57673-16030 |
EL31..(3DS,5DS)..DX |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-16010 |
EL31..(3DS,5DS)..DX W(SPLIT REAR SEAT) |
2 | ||
| 57697-16010 |
EL31 |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-16040 |
EL31 |
2 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-16020 |
EL31 |
1 | ||
| 58034 - BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR | ||||
| 58034-16010 |
EL31 |
1 | ||
| 58104A - BRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT | ||||
| 58104-10030 |
EL31 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-16060 |
EL31 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-10030 |
EL31 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-10030 |
EL31 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-16020 |
EL31 |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-16020 |
EL31 LH |
1 | ||
| 58183-16010 |
EL31 RH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-16020 |
EL31 LH |
1 | ||
| 58183-16010 |
EL31 RH |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-16050 |
EL31 |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-16010 |
EL31 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-16900 |
EL31..3DS,5DS |
1 | ||
| 58215B - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-16020 |
EL31 |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-16020 |
EL31 |
1 | ||
| 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH | ||||
| 58247-10010 |
EL31..(3DS,5DS)..DX W(SPLIT REAR SEAT) |
2 | ||
| 58247-10010 |
EL31 |
1 | ||
| 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH | ||||
| 58247-10010 |
EL31..(3DS,5DS)..DX W(SPLIT REAR SEAT) |
2 | ||
| 58247-10010 |
EL31 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
EL31 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-16280 |
EL31..3DS,5DS |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-16110 |
EL31..3DS,5DS |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-16030 |
EL31..3DS,5DS |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-16020 |
EL31..CBR |
1 | ||
| 58368B - BRACKET, FUEL TUBE, NO.2 | ||||
| 58368-10010 |
EL31 |
2 | ||
| 58397C - COVER, BODY LOWER BACK, RH | ||||
| 58397-16010 |
EL31..3DS,5DS |
1 | ||
| 58398C - COVER, BODY LOWER BACK, LH | ||||
| 58398-16010 |
EL31..3DS,5DS |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-16020 |
EL31 |
3 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-16020 |
EL31 |
3 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90159-60078 | ||||
| 90189-04002 | ||||
| 90189-06079 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30008 | ||||
| 90339-11003 | ||||
| 90950-01005 | ||||
| 90950-01056 | ||||
| 90950-01066 | ||||
| 90950-01345 | ||||
| 90950-01510 | ||||
| 90950-01511 | ||||
| 93540-14010 | ||||
