EL31L-ZGMDSK (1988)
Toyota Tercel
Production
Aug 1988
-
Aug 1989
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

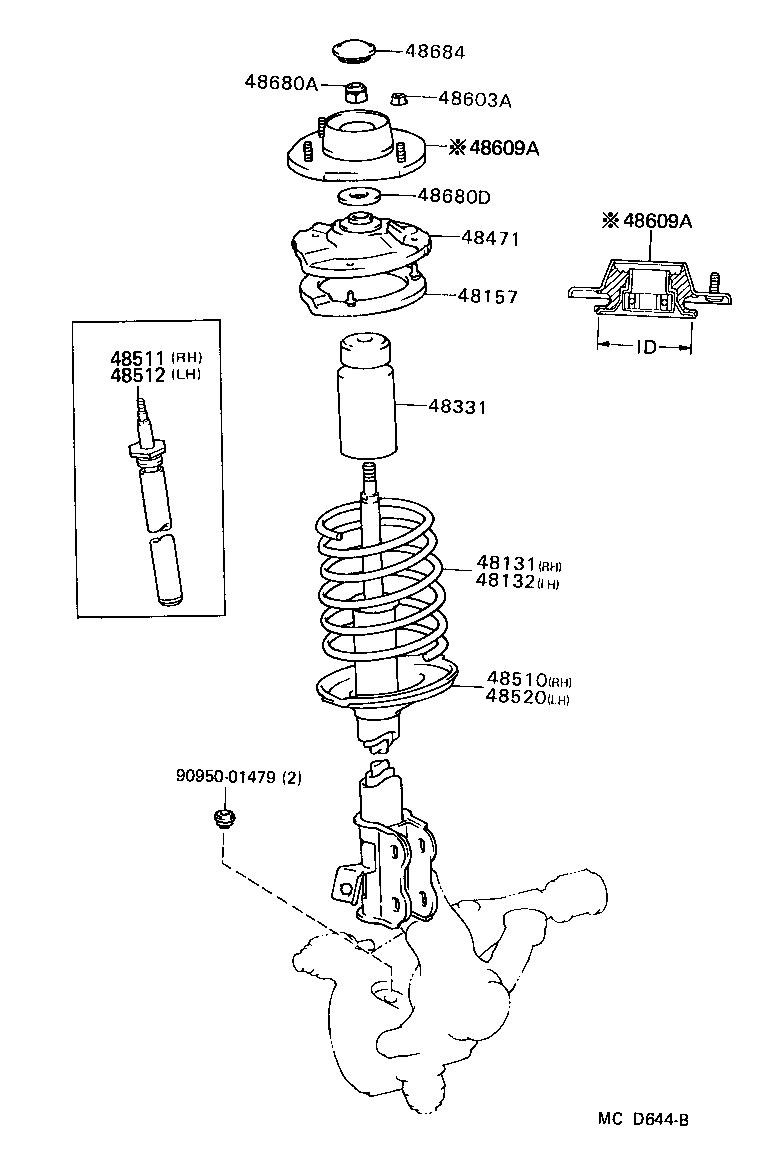

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-16820 |
EL31..MTM |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-16820 |
EL31..MTM |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-16030 |
EL31 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-10070 |
EL31 |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48044-10020 |
EL31 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-16191 |
EL31 |
1 | ||
| 48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE) | ||||
| 48511-16030 |
EL31 |
1 | ||
| 48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE) | ||||
| 48511-16030 |
EL31 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-16031 |
EL31 |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90179-08090 |
EL31 |
6 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-16100 |
EL31 |
2 | ||
| 48609-16090 |
EL31 |
2 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-16100 |
EL31 |
2 | ||
| 48609-16090 |
EL31 |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
EL31 |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
EL31 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-10010 |
EL31 |
2 | ||
| Common parts | ||||
| 90950-01479 | ||||
