EL31L-ZGMDSK (1988)
Toyota Tercel
Production
Aug 1988
-
Aug 1989
Engine
3E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

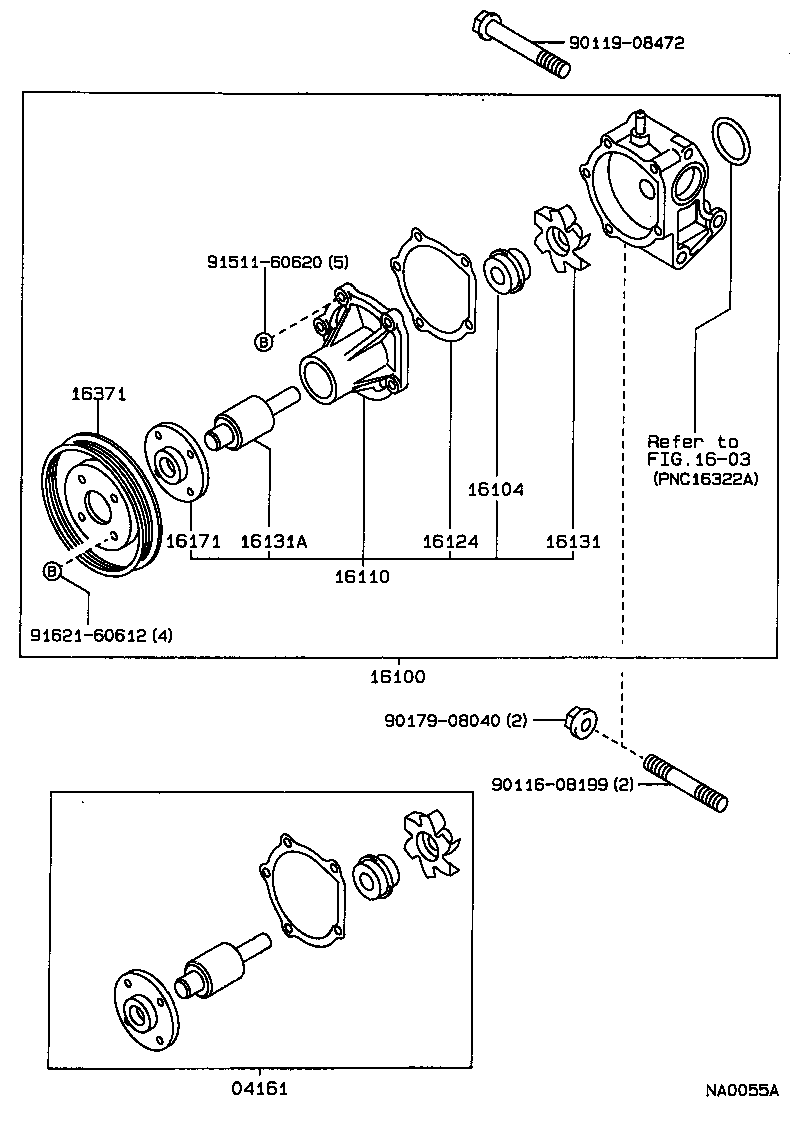

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-19195 |
3E..EL31 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-15020 |
3E..EL31 |
1 | ||
| 16104-70010 |
3E..EL31 |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-15080 |
3E..EL31 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90369-30064 |
3E#..EL31 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-15050 |
3E#..EL31 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16173-10011 |
3E#..EL31 |
1 | ||
| Common parts | ||||
| 90116-08199 | ||||
| 90119-08472 | ||||
| 90179-08040 | ||||
| 91511-60620 | ||||
| 91621-60612 | ||||
| Linked diagrams | ||||
| 1603 | ||||
