EL31L-ZGMDSA (1988)
Toyota Tercel
(8808- )CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-16020 |
EL31..TER..CBR |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-63002 |
EL31..TER..CBR |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18008 |
EL31..TER..CBR |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-32001 |
EL31..TER..CBR |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-12010 |
EL31..TER |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-20012 |
EL31..TER..CBR |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-16010 |
EL31..TER..CBR |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
EL31..TER |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12020 |
EL31..TER..CBR |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
EL31..TER |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22060 |
EL31..TER MARK 2 |
1 | ||
| 44313-22040 |
EL31..TER NO MARK |
1 | ||
| 44313-22080 |
EL31..TER MARK 4 |
1 | ||
| 44313-22070 |
EL31..TER MARK 3 |
1 | ||
| 44313-22050 |
EL31..TER MARK 1 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-16091 |
EL31..TER..CBR |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-16020 |
EL31..TER..CBR |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12070 |
EL31..TER..CBR MARK 1 |
1 | ||
| 44325-12060 |
EL31..TER..CBR NO MARK |
1 | ||
| 44325-12090 |
EL31..TER..CBR MARK 3 |
1 | ||
| 44325-12080 |
EL31..TER..CBR MARK 2 |
1 | ||
| 44325-12100 |
EL31..TER..CBR MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
EL31..TER..CBR L=25,OD=5.0 |
1 | ||
| 90250-05017 |
EL31..TER..CBR L=43.5,OD=5.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
EL31..TER..CBR L=25,OD=5.0 |
1 | ||
| 90250-05017 |
EL31..TER..CBR L=43.5,OD=5.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-16190 |
EL31..TER MARK A |
1 | ||
| 44330-16220 |
EL31..TER MARK D |
1 | ||
| 44330-16230 |
EL31..TER MARK E |
1 | ||
| 44330-16210 |
EL31..TER MARK C |
1 | ||
| 44330-16240 |
EL31..TER MARK F |
1 | ||
| 44330-16200 |
EL31..TER MARK B |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
EL31..TER |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-02200 |
EL31..TER..CBR |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-16021 |
EL31..TER..CBR |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
EL31..TER..CBR |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
EL31..TER..CBR OD=25.5,ID=22.5 |
1 | ||
| 96711-19014 |
EL31..TER..CBR OD=17.0,ID=13.0 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
EL31..TER..CBR OD=25.5,ID=22.5 |
1 | ||
| 96711-19014 |
EL31..TER..CBR OD=17.0,ID=13.0 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-21001 |
EL31..TER..CBR INNER |
1 | ||
| 90301-56002 |
EL31..TER..CBR OUTER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-21001 |
EL31..TER..CBR INNER |
1 | ||
| 90301-56002 |
EL31..TER..CBR OUTER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-30004 |
EL31..TER..CBR OUTER |
1 | ||
| 90301-13004 |
EL31..TER..CBR INNER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-30004 |
EL31..TER..CBR OUTER |
1 | ||
| 90301-13004 |
EL31..TER..CBR INNER |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12030 |
EL31..TER..CBR |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19019 |
EL31..TER..CBR |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12030 |
EL31..TER L=14.993 |
10 | ||
| 44345-12040 |
EL31..TER L=14.991 |
10 | ||
| 44345-12020 |
EL31..TER L=14.995 |
10 | ||
| 44345-12010 |
EL31..TER L=14.997 |
10 | ||
| 44345-12050 |
EL31..TER L=14.989 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-16011 |
EL31..TER |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09004 |
EL31..TER |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
EL31..TER |
3 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-16021 |
EL31..TER..CBR |
1 | ||
| Common parts | ||||
| 90119-06089 | ||||
| 90119-10072 | ||||
| 90119-10258 | ||||
| 90179-12022 | ||||
| 90206-30001 | ||||

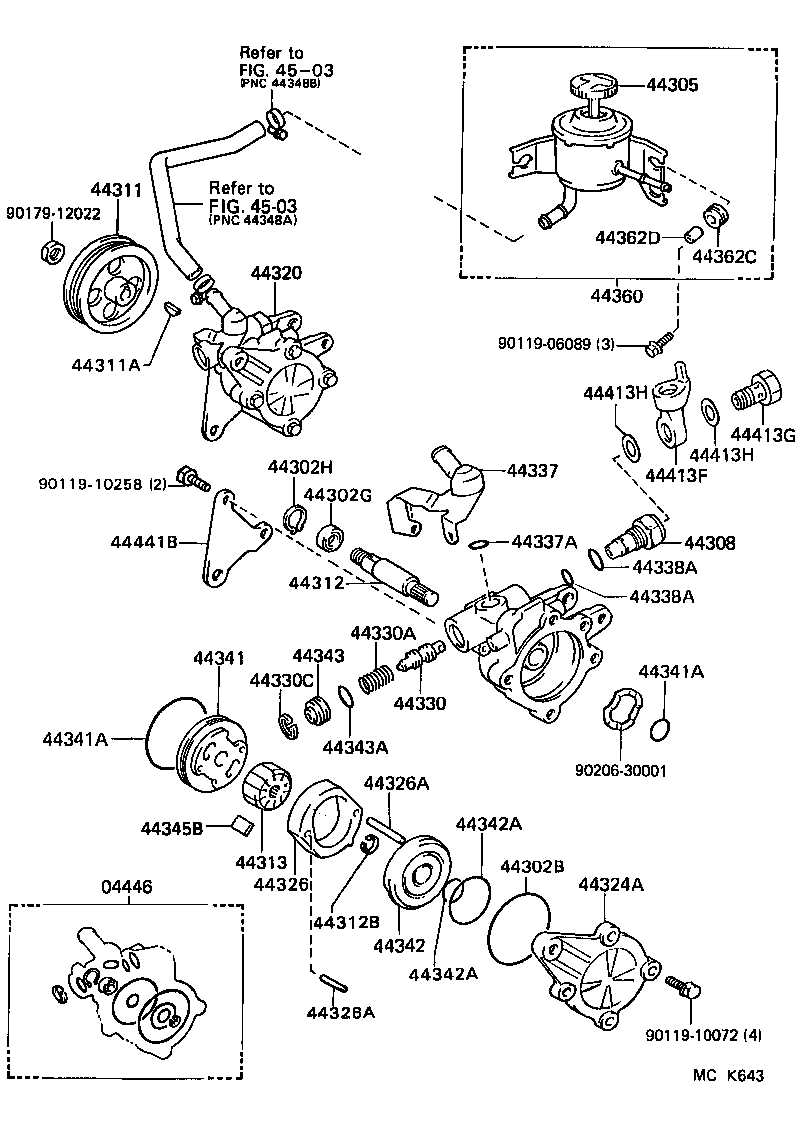

| Linked diagrams | ||||
| 4503 | ||||
