EL31L-ZGMDSA (1988)

Toyota Tercel

Production Aug 1988 - Aug 1989
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

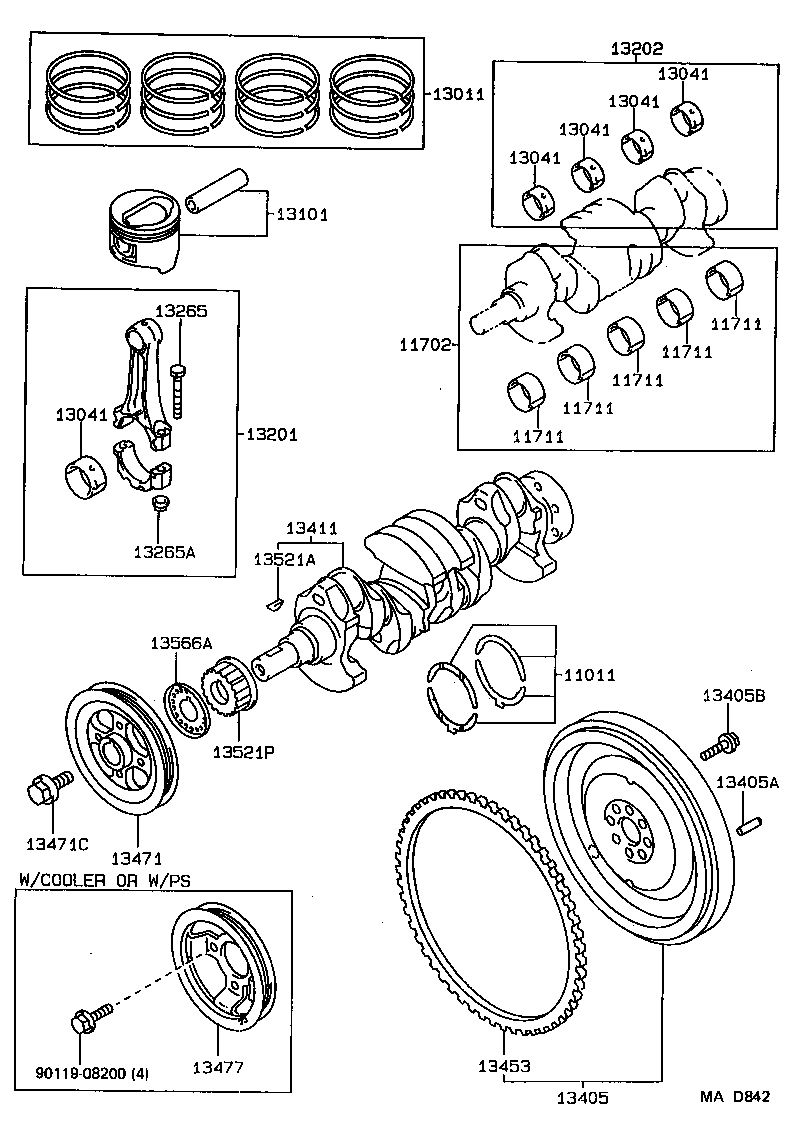

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 11711 11711 11711 13011 13041 13041 13041 13041 13041 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471C 13477 13521A 13521P 13566A 9011908200
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-11010

3E#..EL31

STD

 1
11012-11010

3E#..EL31

O/S 0.125

 1
11702 - BEARING SET, CRANKSHAFT
11704-11010

3E#..EL31

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-1101003

3E#..EL31

MARK 3

 5
11701-1101004

3E#..EL31

MARK 4

 5
11701-1101002

3E#..EL31

MARK 2

 5
11701-1101001

3E#..EL31

MARK 1

 5
11701-1101005

3E#..EL31

MARK 5

 5
11711 - BEARING, CRANKSHAFT
11701-1101003

3E#..EL31

MARK 3

 5
11701-1101004

3E#..EL31

MARK 4

 5
11701-1101002

3E#..EL31

MARK 2

 5
11701-1101001

3E#..EL31

MARK 1

 5
11701-1101005

3E#..EL31

MARK 5

 5
11711 - BEARING, CRANKSHAFT
11701-1101003

3E#..EL31

MARK 3

 5
11701-1101004

3E#..EL31

MARK 4

 5
11701-1101002

3E#..EL31

MARK 2

 5
11701-1101001

3E#..EL31

MARK 1

 5
11701-1101005

3E#..EL31

MARK 5

 5
11711 - BEARING, CRANKSHAFT
11701-1101003

3E#..EL31

MARK 3

 5
11701-1101004

3E#..EL31

MARK 4

 5
11701-1101002

3E#..EL31

MARK 2

 5
11701-1101001

3E#..EL31

MARK 1

 5
11701-1101005

3E#..EL31

MARK 5

 5
11711 - BEARING, CRANKSHAFT
11701-1101003

3E#..EL31

MARK 3

 5
11701-1101004

3E#..EL31

MARK 4

 5
11701-1101002

3E#..EL31

MARK 2

 5
11701-1101001

3E#..EL31

MARK 1

 5
11701-1101005

3E#..EL31

MARK 5

 5
13011 - RING SET, PISTON
13013-11090

3E#..EL31

O/S 0.50

 1
13011-11090

3E#..EL31

STD

 1
13041 - BEARING, CONNECTING ROD
13041-1101001

3E#..EL31

MARK 1

 64
13041-1101003

3E#..EL31

MARK 3

 64
13041-1101002

3E#..EL31

MARK 2

 64
13041 - BEARING, CONNECTING ROD
13041-1101001

3E#..EL31

MARK 1

 64
13041-1101003

3E#..EL31

MARK 3

 64
13041-1101002

3E#..EL31

MARK 2

 64
13041 - BEARING, CONNECTING ROD
13041-1101001

3E#..EL31

MARK 1

 64
13041-1101003

3E#..EL31

MARK 3

 64
13041-1101002

3E#..EL31

MARK 2

 64
13041 - BEARING, CONNECTING ROD
13041-1101001

3E#..EL31

MARK 1

 64
13041-1101003

3E#..EL31

MARK 3

 64
13041-1101002

3E#..EL31

MARK 2

 64
13041 - BEARING, CONNECTING ROD
13041-1101001

3E#..EL31

MARK 1

 64
13041-1101003

3E#..EL31

MARK 3

 64
13041-1101002

3E#..EL31

MARK 2

 64
13101 - PISTON SUB-ASSY, W/PIN
13101-1108003

3E#..EL31

STD,MARK 3

 4
13101-1108002

3E#..EL31

STD,MARK 2

 4
13101-1108001

3E#..EL31

STD,MARK 1

 4
13103-11080

3E#..EL31

O/S 0.50

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-19085

3E#..EL31

 4
13202 - BEARING SET, CONNECTING ROD
13204-11010

3E#..EL31

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-10020

3E#..EL31

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90179-08014

3E#..EL31

 8
13405 - FLYWHEEL SUB-ASSY
13405-11040

3E..EL31..TER..MTM

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

3E..EL31..MTM

L=18,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10138

3E#..EL31

 6
13411 - CRANKSHAFT
13401-11040

3E#..EL31

 1
13453 - GEAR, FLYWHEEL RING
13453-10030

3E..EL31..MTM

 1
13471 - PULLEY, CRANKSHAFT
13408-11012

3E#..EL31

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12051

3E#..EL31

 1
13477 - PULLEY, CRANKSHAFT, NO.2
44319-16020

3E#..EL31..TER..USA

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

3E#..EL31

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-11010

3E#..EL31

 1
13566A - GUIDE, TIMING BELT
13566-10011

3E#..EL31

 1
Common parts
90119-08200
