EL31L-ZGMDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )3DS,5DS

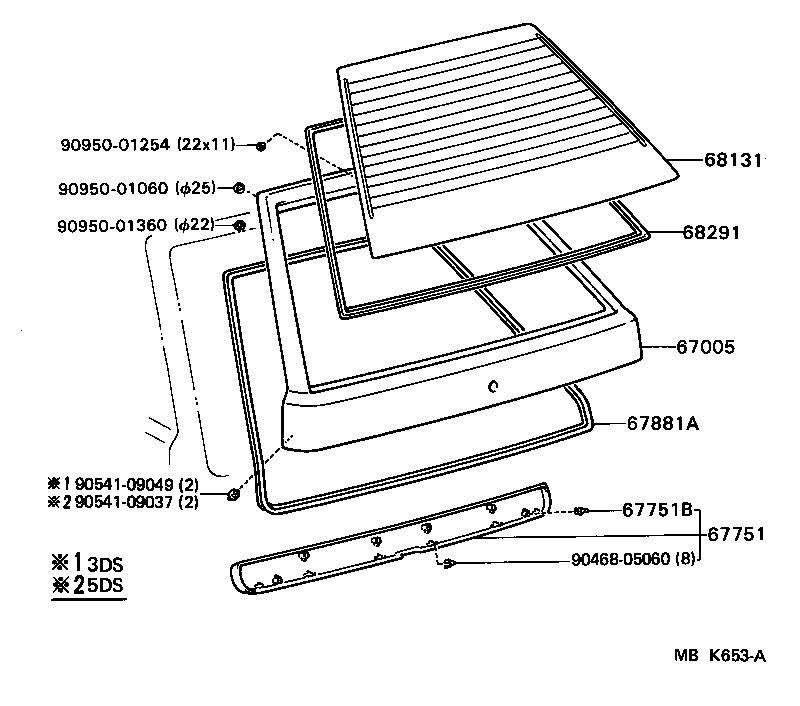

Click highlighted areas on diagram

diagram 67005 67751 67751B 67881A 68131 68291 9046805060 9054109037 9054109049 9095001060 9095001254 9095001360
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-16250

EL31..3DS

 1
67005-16270

EL31..3DS

W/RR WIPER

 1
67751 - BOARD, BACK DOOR TRIM
67751-1606004

EL31..3DS

BLUE,BLUE,TRIM8#

 1
67751-1606001

EL31..3DS

BLACK,BLACK,TRIM2#

 1
67751-1606005

EL31..3DS

BEIGE,DARK BEIGE,TRIM4#

 1
67751B - RETAINER(FOR BACK DOOR TRIM BOARD)
67771-16070

EL31..3DS

 6
67881A - WEATHERSTRIP, BACK DOOR
67881-16110

EL31..3DS

 1
68131 - GLASS, BACK DOOR
68131-16270

EL31..3DS..DX

*EHTT,T=3.5,*EHTT,T=3.5(160W)

 1
68131-16260

EL31..3DS..DX

*EHTT,T=3.5,*EHTT,T=3.5(100W)

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-16030

EL31..3DS

 1
Common parts
90468-05060
90541-09037
90541-09049
90950-01060
90950-01254
90950-01360
