EL31L-ZGMDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

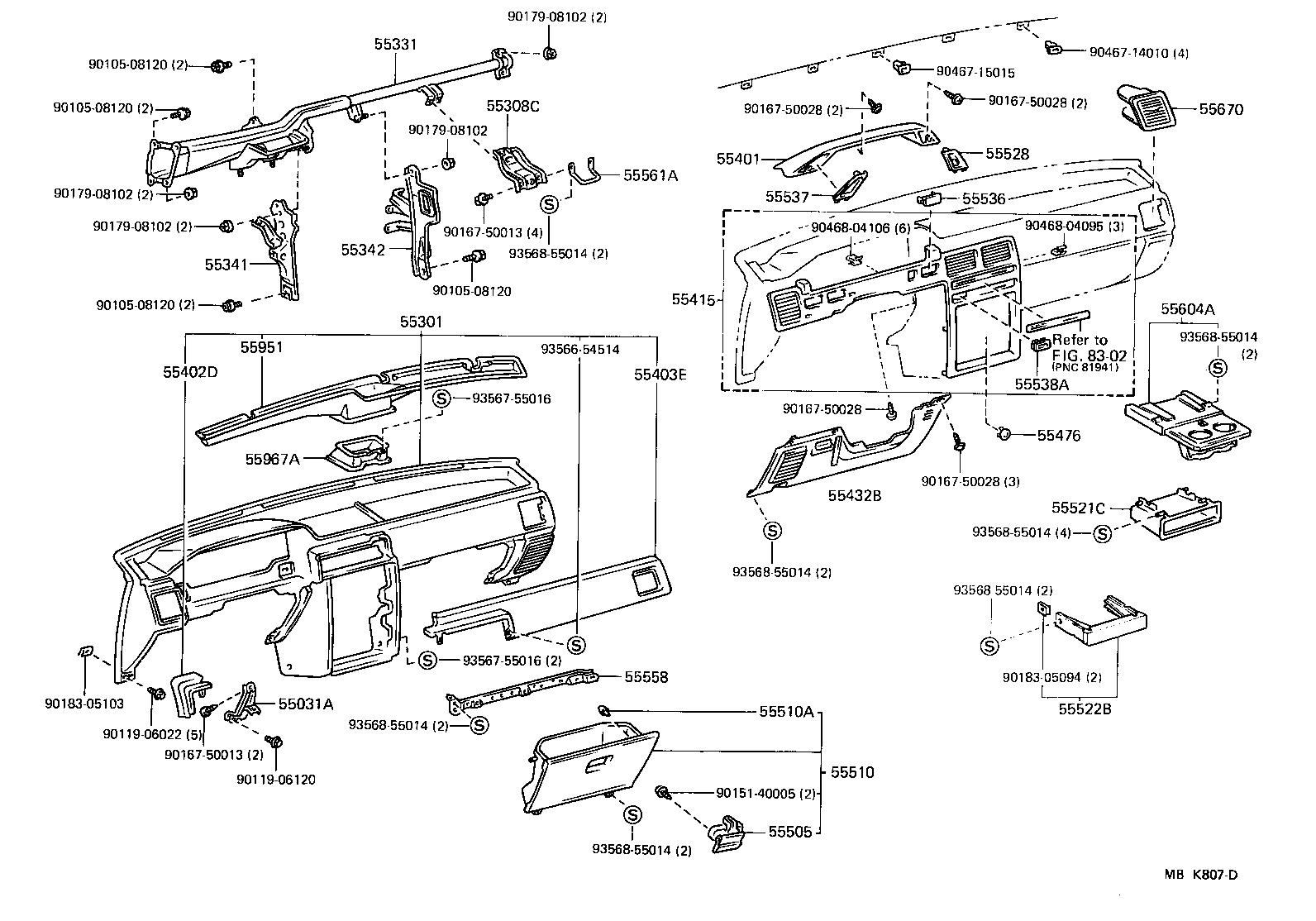

Click highlighted areas on diagram

diagram 55031A 55301 55308C 55331 55341 55342 55401 55402D 55403E 55415 55432B 55476 55505 55510 55510A 55521C 55522B 55528 55536 55537 55538A 55558 55561A 55604A 55670 55951 55967A 8302 9010508120 9010508120 9010508120 9010508120 9011906022 9011906120 9015140005 9016750013 9016750013 9016750028 9016750028 9016750028 9016750028 9017908102 9017908102 9017908102 9017908102 9018305094 9018305103 9046714010 9046715015 9046804095 9046804106 9356654514 9356755016 9356755016 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55031A - STAY SUB-ASSY, INSTRUMENT PANEL, NO.1
55031-16020

EL31

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-1602004

EL31

BLUE,BLUE,TRIM8#

 1
55301-1602001

EL31

BLACK,BLACK,TRIM2#

 1
55301-1602005

EL31

BEIGE,DARK BEIGE,TRIM4#

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-16010

EL31

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-16040

EL31

 1
55341 - BRACE, INSTRUMENT PANEL, NO.1
55306-16060

EL31

 1
55342 - BRACE, INSTRUMENT PANEL, NO.2
55307-16060

EL31

 1
55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404-1610005

EL31

BEIGE,DARK BEIGE,TRIM4#

 1
55404-1610004

EL31

BLUE,BLUE,TRIM8#

 1
55404-1610001

EL31

BLACK,BLACK,TRIM2#

 1
55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1
55402-1602004

EL31

BLUE,BLUE,TRIM8#

 1
55402-1602001

EL31

BLACK,BLACK,TRIM2#

 1
55402-1602005

EL31

BEIGE,DARK BEIGE,TRIM4#

 1
55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2
55403-1604005

EL31

BEIGE,DARK BEIGE,TRIM4#

 1
55403-1604001

EL31

BLACK,BLACK,TRIM2#

 1
55403-1604004

EL31

BLUE,BLUE,TRIM8#

 1
55415 - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55405-16071

EL31

 1
55405-16071

EL31

W/TILT STEERING

 1
55405-16070

EL31

 1
55405-16081

EL31

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-1608004

EL31

BLUE,BLUE,TRIM8#

 1
55432-1609001

EL31

W/TILT STEERING,BLACK,BLACK,TRIM2#

 1
55432-1609004

EL31

W/TILT STEERING,BLUE,BLUE,TRIM8#

 1
55432-1608001

EL31

BLACK,BLACK,TRIM2#

 1
55432-1608005

EL31

BEIGE,DARK BEIGE,TRIM4#

 1
55432-1609005

EL31

W/TILT STEERING,BEIGE,DARK BEIGE,TRIM4#

 1
55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
55560-1605004

EL31

BLUE,BLUE,TRIM8#

 1
55560-1605001

EL31

BLACK,NEW BLACK,TRIM2#

 1
55560-1605005

EL31

BEIGE,DARK BEIGE,TRIM4#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1607001

EL31

BLACK,BLACK,TRIM2#

 1
55550-1607005

EL31

BEIGE,DARK BEIGE,TRIM4#

 1
55550-1607004

EL31

BLUE,BLUE,TRIM8#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
90541-03015

EL31

 3
55521C - COVER, STEREO OPENING
55521-16040

EL31

100 X 180

 1
55521-16030

EL31

50 X 180

 1
55522B - COVER, RADIO TUNER OPENING
55522-16030

EL31..3DS

DECONTENT PACKAGE

 1
55528 - COVER, AUTO DRIVE OPENING
55528-16010

EL31

 1
55536 - COVER, REAR WINDOW WIPER SWITCH HOLE
55539-3201011

EL31

BLACK,BLACK,TRIM2#

 1
55538A - COVER, COOLER SWITCH HOLE
55538-16020

EL31

 1
55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR
55558-16050

EL31

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-12040

EL31

 1
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-19015

EL31

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-1603005

EL31

BEIGE,DARK BEIGE,TRIM4#

 1
55670-1603001

EL31

BLACK,BLACK,TRIM2#

 1
55670-1603004

EL31

BLUE,BLUE,TRIM8#

 1
55951 - NOZZLE, DEFROSTER, FRONT
55951-16070

EL31

 1
55967A - NOZZLE, DEFROSTER, LOWER
55967-16020

EL31

 1
Common parts
90105-08120
90119-06022
90119-06120
90151-40005
90167-50013
90167-50028
90179-08102
90183-05094
90183-05103
90467-14010
90467-15015
90468-04095
90468-04106
93566-54514
93567-55016
93568-55014
Linked diagrams
8302

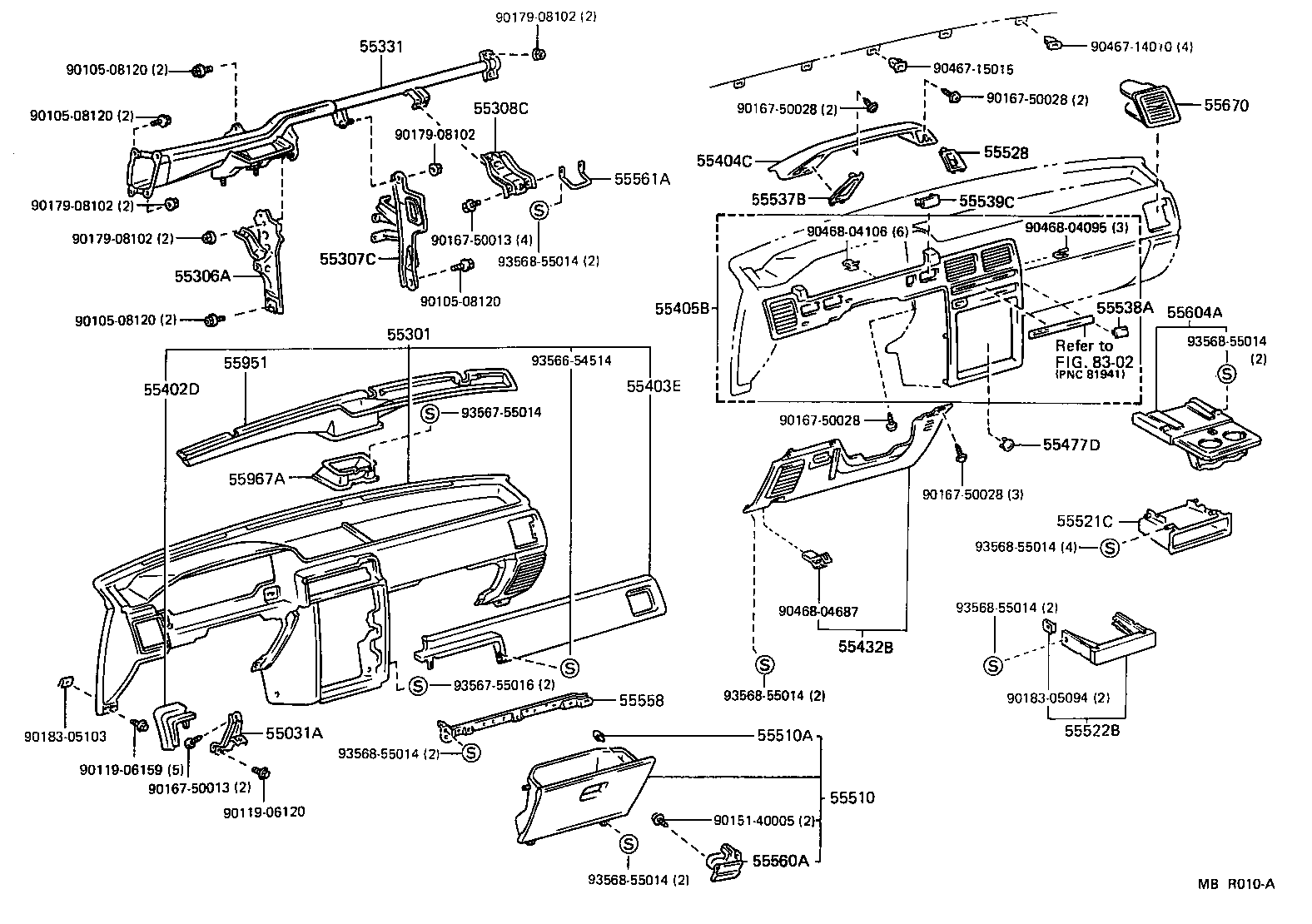

(8808-8908) ; (8908- )CND

Click highlighted areas on diagram

diagram 55031A 55301 55306A 55307C 55308C 55331 55402D 55403E 55404C 55405B 55432B 55477D 55510 55510A 55521C 55522B 55528 55537B 55538A 55539C 55558 55560A 55561A 55604A 55670 55951 55967A 8302 9010508120 9010508120 9010508120 9010508120 9011906120 9011906159 9015140005 9016750013 9016750013 9016750028 9016750028 9016750028 9016750028 9017908102 9017908102 9017908102 9017908102 9018305094 9018305103 9046714010 9046715015 9046804095 9046804106 9046804687 9356654514 9356755014 9356755016 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
Common parts
90105-08120
90119-06120
90119-06159
90151-40005
90167-50013
90167-50028
90179-08102
90183-05094
90183-05103
90467-14010
90467-15015
90468-04095
90468-04106
90468-04687
93566-54514
93567-55014
93567-55016
93568-55014
Linked diagrams
8302
