EL31L-ZGMDSA (1986)

Toyota Tercel

Production Aug 1986 - Aug 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )

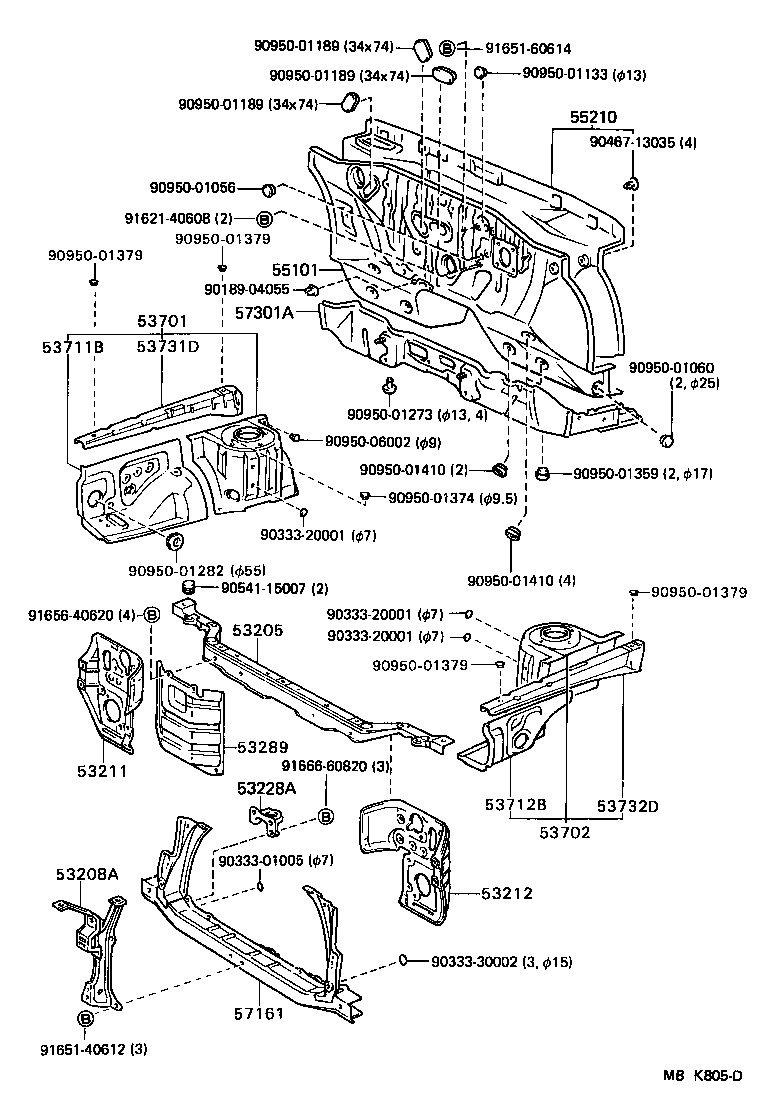

Click highlighted areas on diagram

diagram 53205 53208A 53211 53212 53228A 53289 53701 53702 53711B 53712B 53731D 53732D 55101 55210 57161 57301A 9018904055 9033301005 9033320001 9033320001 9033320001 9033330002 9046713035 9054115007 9095001056 9095001060 9095001133 9095001189 9095001189 9095001189 9095001273 9095001282 9095001359 9095001374 9095001379 9095001379 9095001379 9095001379 9095001410 9095001410 9095006002 9162140608 9165140612 9165160614 9165640620 9166660820
Part # Description Qty Price
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-16080

EL31..TER

 1
53205-16901

EL31

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-16040

EL31

 1
53208-16070

EL31..TER

 1
53211 - SUPPORT, RADIATOR, RH
53211-16060

EL31

 1
53212 - SUPPORT, RADIATOR, LH
53212-16060

EL31

 1
53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1
53228-16070

EL31

 1
53289 - COVER, RADIATOR SIDE BAFFLE
53289-16030

EL31

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-16140

EL31

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-16080

EL31

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-16120

EL31

 1
53711-16090

EL31

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-10190

EL31

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-16020

EL31

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-16020

EL31

 1
55101 - PANEL SUB-ASSY, DASH
55101-16280

EL31..MTM

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-16080

EL31..MTM

 1
57161 - CROSSMEMBER, FRONT
57161-16902

EL31

 1
57161-16907

EL31..TER

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-16020

EL31

 1
Common parts
90189-04055
90333-01005
90333-20001
90333-30002
90467-13035
90541-15007
90950-01056
90950-01060
90950-01133
90950-01189
90950-01273
90950-01282
90950-01359
90950-01374
90950-01379
90950-01410
90950-06002
91621-40608
91651-40612
91651-60614
91656-40620
91666-60820
