EL31L-ZGKRSK (1986)
Toyota Tercel
(8608- )

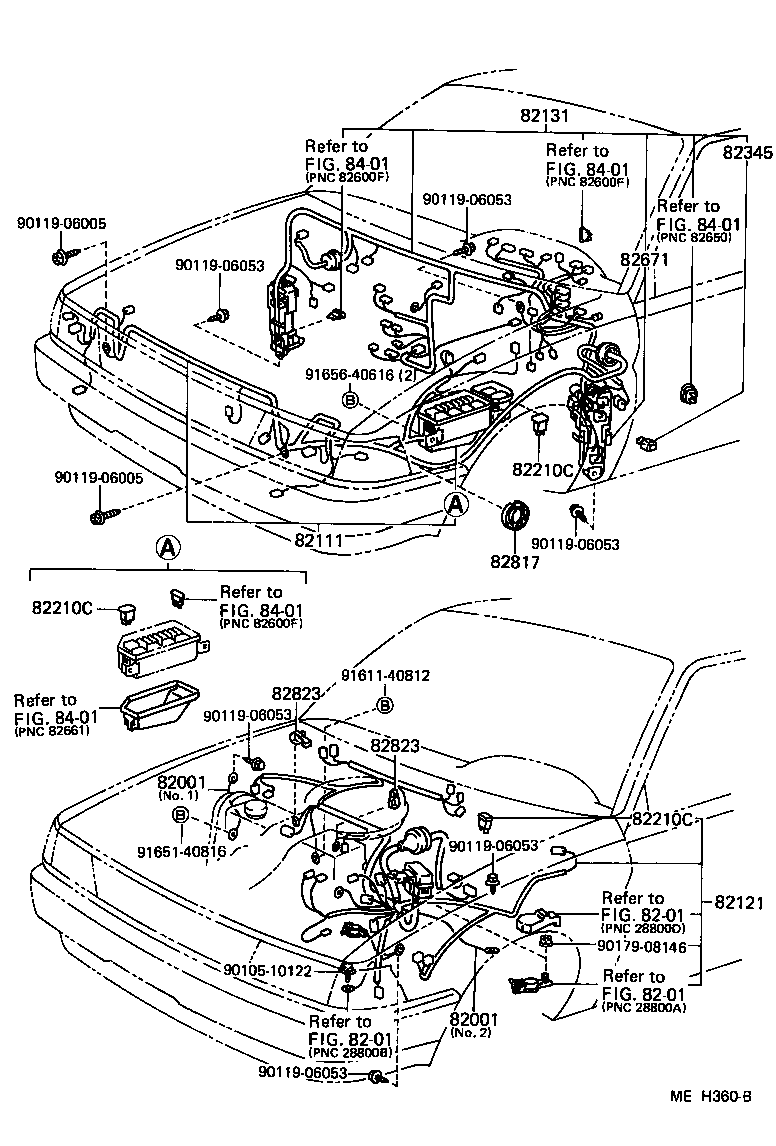

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07282 |
EL31 NO.1 |
1 | ||
| 90980-07242 |
EL31 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07282 |
EL31 NO.1 |
1 | ||
| 90980-07242 |
EL31 NO.2 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-16460 |
EL31 |
1 | ||
| 82111-16610 |
EL31..DX,STD;EL31..B..CND |
1 | ||
| 82111-16720 |
EL31..B..CND;EL31..(3DS,5DS)..(DX,STD) W/*RW & W/O *TDS |
1 | ||
| 82111-16460 |
EL31..B..CND;EL31..(3DS,5DS)..(DX,STD) W/*RW & W/O *TDS |
1 | ||
| 82111-16700 |
EL31..DX,STD;EL31..B..CND |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-16290 |
EL31..MTM..CND |
1 | ||
| 82121-16291 |
EL31..MTM..CND |
1 | ||
| 82121-16321 |
EL31..MTM..CND |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-16760 |
EL31 W/*RW |
1 | ||
| 82131-16750 |
EL31..CND |
1 | ||
| 82131-16761 |
EL31 W/*RW |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
EL31 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08188 |
EL31 30A,TERM.:FEMALE,PNK,30A |
3 | ||
| 90982-08190 |
EL31 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
EL31 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08188 |
EL31 30A,TERM.:FEMALE,PNK,30A |
3 | ||
| 90982-08190 |
EL31 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
EL31 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08188 |
EL31 30A,TERM.:FEMALE,PNK,30A |
3 | ||
| 90982-08190 |
EL31 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
EL31 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-16050 |
EL31 |
1 | ||
| 82660-12130 |
EL31 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22280 |
EL31 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
EL31..CND STARTER |
1 | ||
| 82823-22050 |
EL31 ALTERNATOR |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-20030 |
EL31..CND STARTER |
1 | ||
| 82823-22050 |
EL31 ALTERNATOR |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90179-08146 | ||||
| 91611-40812 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||

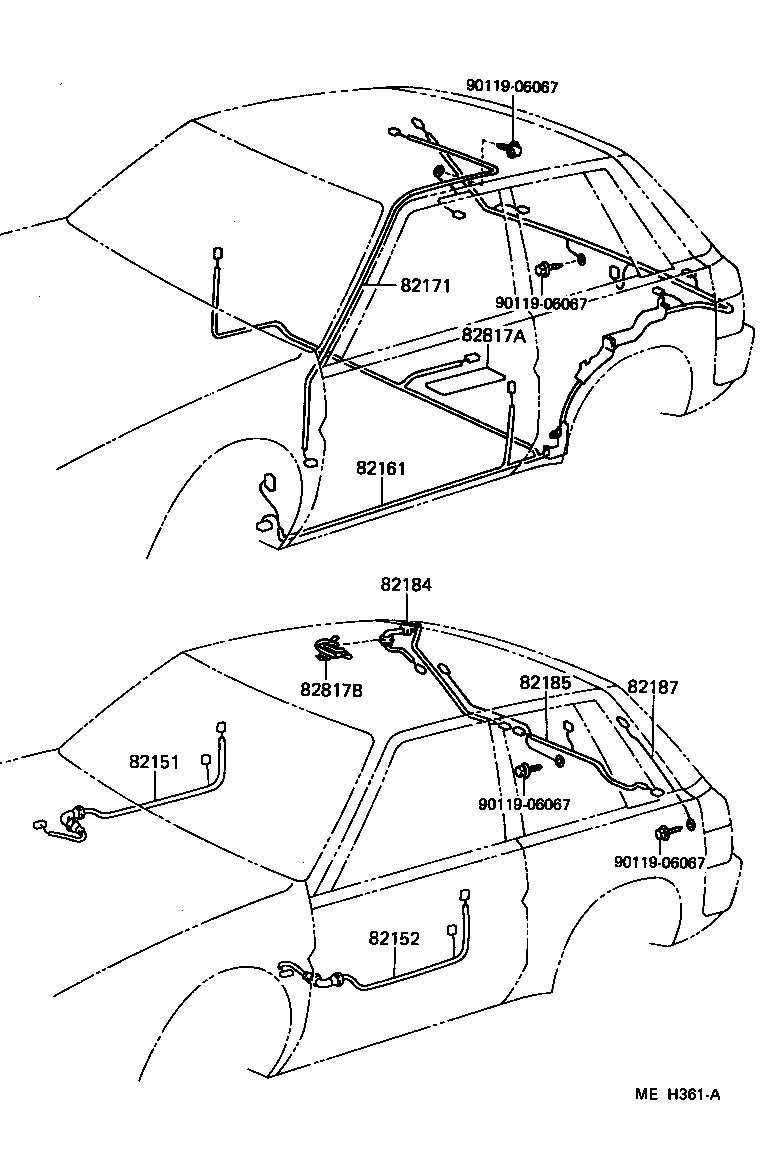

(8608- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-16320 |
EL31..3DS |
1 | ||
| 82161-16330 |
EL31..3DS W/*RW |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-16080 |
EL31..3DS,5DS |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-16140 |
EL31..3DS |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-16170 |
EL31..3DS W/*RW |
1 | ||
| 82185-16160 |
EL31..3DS |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-16040 |
EL31..3DS |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16100 |
EL31 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16190 |
EL31..3DS |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

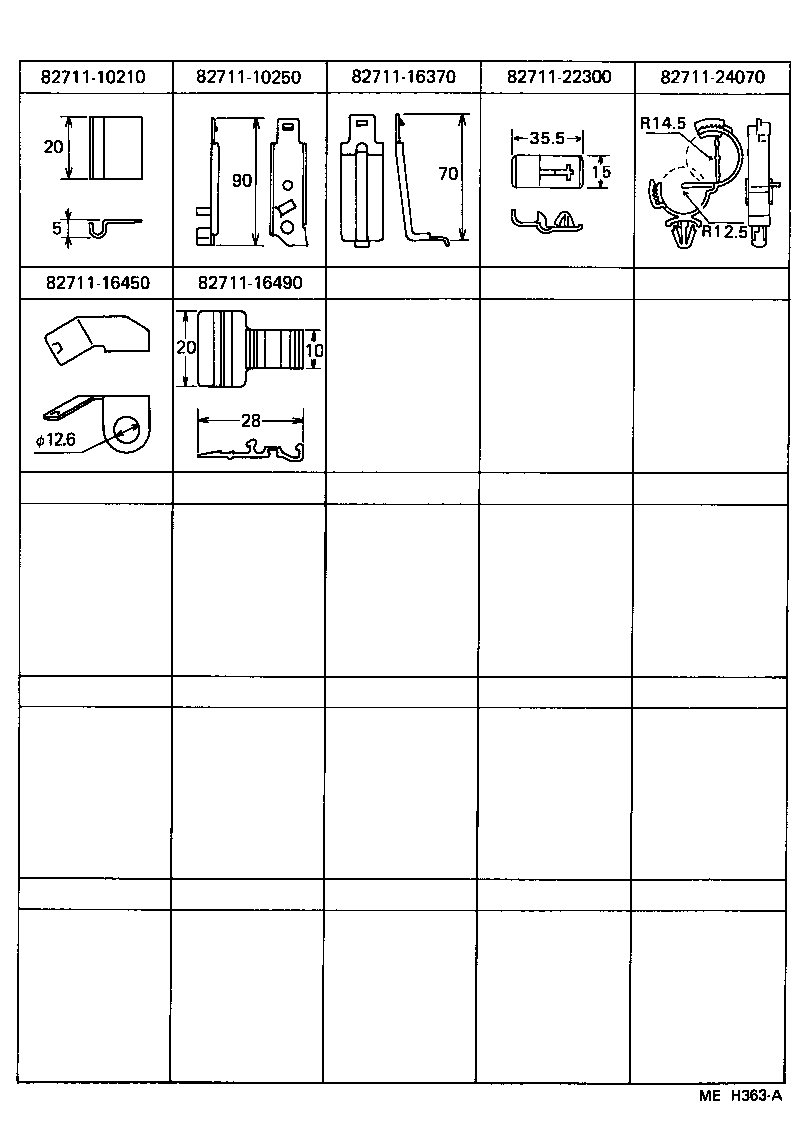

| Common parts | ||||
| 82711-10210 | ||||
| 82711-10250 | ||||
| 82711-16370 | ||||
| 82711-16450 | ||||
| 82711-16490 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
